Hallo,
ich teile hier mein Geh\u00e4use f\u00fcr einen Raspberry Pi 4 (ModelB).

In den Deckel passt ein 40x40 L\u00fcfter. Ich habe einen 5v Noctua genommen. Aber andere Noname 40x40 L\u00fcfter passen auch.

Ich habe ein paar Bilder aus dem Slicer beigef\u00fcgt. Am besten druckt ihr es in der Positionierung.

F\u00fcr das Geh\u00e4use ist es ratsam support zu nutzen. Bei einem gut eingestellten Drucker geht es auch ohne Support.

Ich habe es mit PA12CF15 gedruckt. Es sollte aber mit allen anderen Materialien wie zb. PLA, PETG, ABS ohne Probleme funktionieren.

Der Deckel hat eine Nut, die ins Geh\u00e4use greift. (Siehe Bilder).

BOM:

Das Raspberry Pi Board wir mit 4x M2x6 Schrauben befestigt.

Wenn ihr es gedruckt habt, w\u00fcrde ich mich \u00fcber ein Make freuen.

Viel Spa\u00df damit.

MfG: Razzor

EN:

Hello,
I am sharing my case for a Raspberry Pi 4 (ModelB).

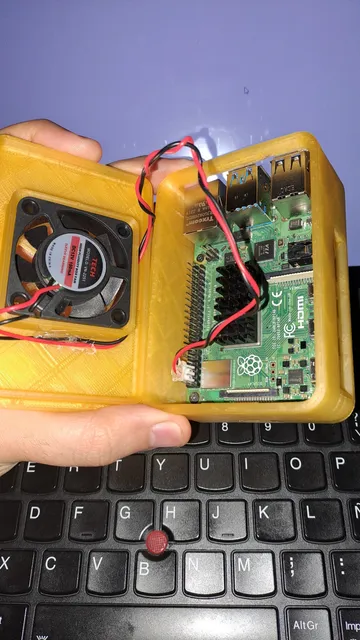

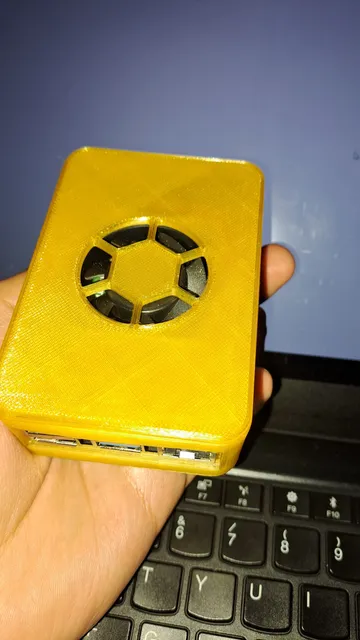

A 40x40 fan fits in the lid. I took a 5v Noctua. But other Noname 40x40 fans also fit.

I've attached a few images from the slicer. It is best to print it in the positioning.

It is advisable to use support for the housing. With a well-adjusted printer, it can also be done without support.

I printed it with PA12CF15. However, it should be combined with all other materials such as e.g. PLA, PETG, ABS work without problems.

The cover has a groove that grips the case. (See pictures).

BOM:

The Raspberry Pi board is attached with 4x M2x6 screws.

If you printed it, I would be happy about a make.

Have fun with it.

Regards: Razzor
