Avaliable at cncdrones.com

Update* added hero8, hero11 mini, and action2 mounts

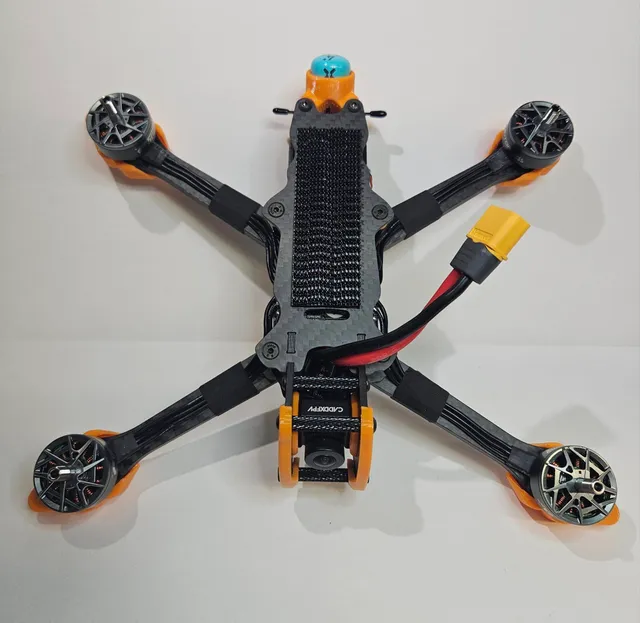

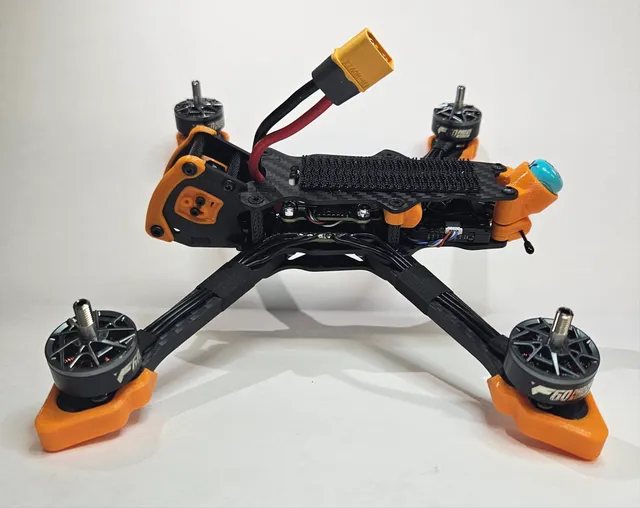

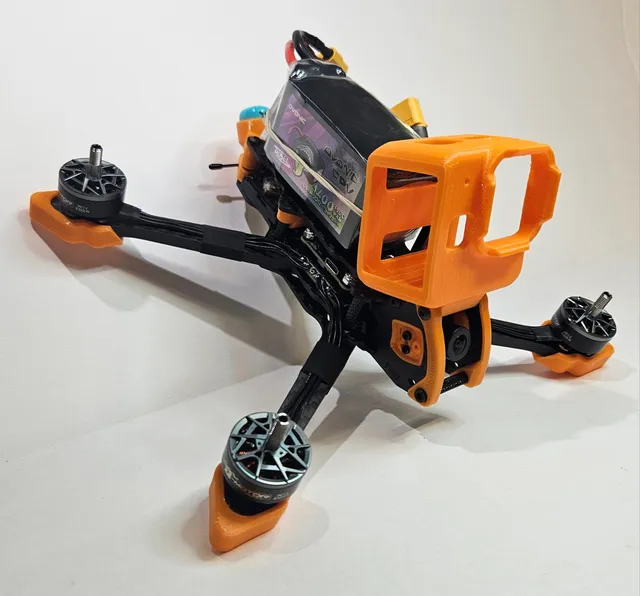

Introducing the Baron. This is my latest freestyle creation. Built tough with a full camera cage, 6mm arms, and a 2.5mm bottom plate. This frame offers both 30.5 and 20mm mounting in front, and 20mm as well as 25.5mm rear mounting. My goal with this project was to create a better balanced design for all video systems, with the durability of the Alpha frames, at a weight closer to the skelter5. The Baron comes in at 132g.

Specs

2mm top plate
2mm brace plate
2.5mm bottom plate
2.5mm camera plates
6mm arms
30.5 and 20mm stack mounting
20mm and 25.5 rear mounting
23mm camera spacing
21.5mm deck height (20mm standoffs on press nuts)
5.1\" max prop
frame weight 132g

I put together all the 3d printed accessories, and will add action camera mounts soon. Any additional mounts can be added by request. Thank you everyone for your support, and the testers while prototyping. I hope you enjoy this frame, and feel free to reach out if you have any questions. Happy flying
