1U rackmount for HP Elitedesk G3 mini and newer
Comments
@KHDev_1513202 Very nice. It's unfortunate that ASA shrinks a little and does warp quite easily. But even with that it's still functional.

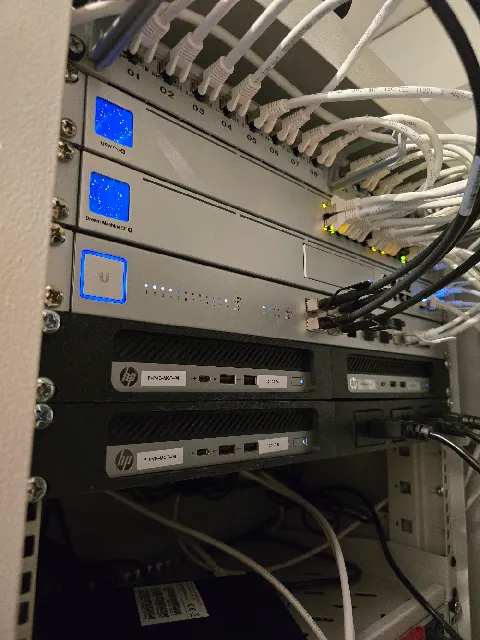

As for the ethernet, i've routed the cabled to keystone jacks in my top keystone panel. and from there with small patch cables to the unifi switch. Also power distribution is in the back of my 9u case.
But i do like your solution of making 1 bracket to fit all 3 of those. Well done.

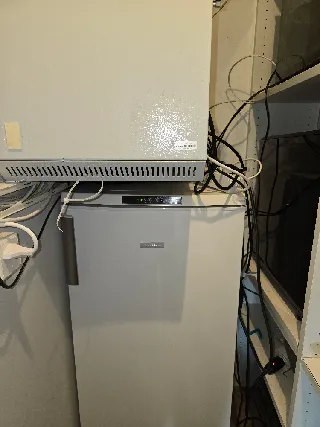

@Spekkie3D_1538 Thanks! Function over form. It doesnt matter at all since its just a wallmounted rack, in the worst possible position, where I wont even get to see into it haha. On the right is my NAS (large tower) and main Proxmox machine (smaller case top).
Once I get my 3x MS-01 I will need to finally recable everything. Sadly they are bigger so I will have to figure out a different way to mount them or just stack them on the tray.
@KHDev_1513202 Indeed then its function over form all the way. And still i am just glad that a model i primarily designed for my own rack can help out others as well.
@KHDev_1513202 Would you be able to share the model for the power supplies? It looks a perfect solution to keep them organized.
@KHDev_1513202 Your sharing the file for the power brick attachment?

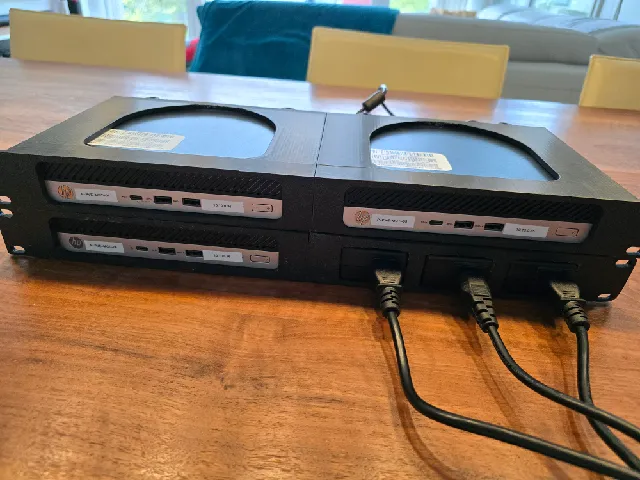

printed in ASA so it shrank a little. Also created a holder for 3x power supplies (which i forgot to print a brim for so it warped as well lol)Printed on X1C with default ASA Profile with brim.
