Having a 3D printer without a camera is like driving at night without lights. I decided to create a base that doesn't require any alteration to the MK4 and can also serve as a starting point for others to create their own camera support.

What you need

PETG filament (PLA is a good replacement)
One M3x25 screw
One M3x18 screw
One M3 nut
A Logitech C270 or C310 webcam

Printing Instructions

Filament used: Prusament PETG
Nozzle: 0.4
Layer height: 0.2

x-axis-base-v1_short:
4 perimeters, 5 bottom solid layers.

camera-arm-v1:
3 perimeters, 5 bottom solid layers, support enforcers (see image).

cable-clamp-v1:
3 perimeters, 5 bottom solid layers.

FYI: These parameters are the ones I prefer, but the ones that come by default still work perfectly.

Assembly:

Screw the camera to the arm using the M3x25 screw, no nut is needed on the other end. Do not over-tighten.
Guide the cable through the rear slot of the arm and slide a couple of c-clamps to secure the cable.
Attach the base to the arm using the M3x18 screw and nut.

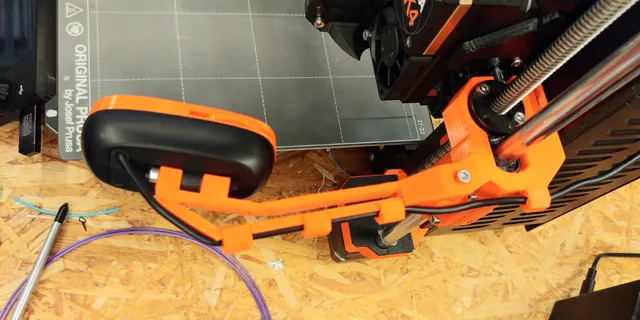

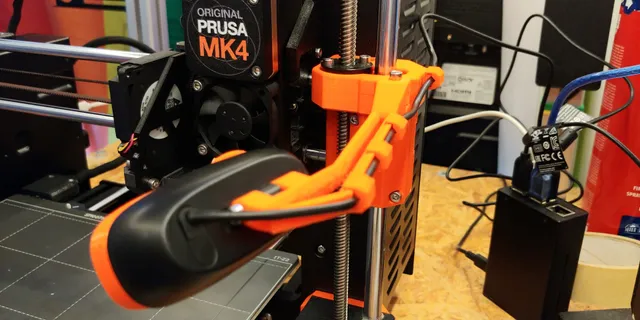

Place it on the printer as shown in the photos, the base should snugly fit to the x axis idler (right side).
Adjust the camera's framing and gently tighten the screws.
Attach the last c-clamp to the base.
Enjoy!

Some inspiration was taken from:

printables.com/model/454742-mk4-logitech-c270-x-motor-mount

thingiverse.com/thing:3198607
