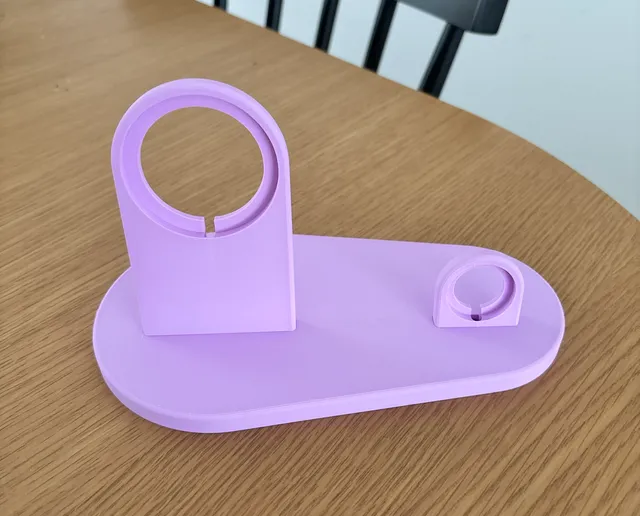

{"data":{"make":{"id":"1728395","created":"2024-04-20T17:34:05.791440+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"496","name":"Bambu Lab P1P","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"1092416","handle":"ikindamadeit_1092416","verified":false,"dateVerified":null,"publicUsername":"I kinda made it","avatarFilePath":"media/auth/avatars/c5/c56b586f-20a3-47e3-8796-61147e6e1ff2.png","badgesProfileLevel":{"profileLevel":12,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"1560075","filePath":"media/comment_images/a2/3b0083-fc87-403b-8868-d3df09efa823/img_0664.jpeg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"Printed with Lilac eSUN Matte PLA. 0.2 layer, 1:30h print. Regular base with iphone 14 stand and regular apple watch charger.","rating":5,"likesCount":0,"liked":null,"membershipAgeMonths":null,"membershipTier":null,"__typename":"PrintCommentType","model":{"id":"521609","slug":"magsafe-charging-stand-standby-mode","name":"MagSafe Charging Stand (Standby Mode)","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"4.9316239316","myRating":null,"ratingCount":117,"description":"

This is a super simple to print charging stand that utilizes your MagSafe charger. No supports required, and fully modular to fit your phone (as long as it has MagSafe).

Update 8/5/23: Support for older style Apple Watch chargers!

I have added models for the older style (non-fast charger) Apple Watch chargers, as well as the updated bases since the older chargers use USB-A connectors on the end. This means that you need to make sure you are using the correct pieces for your setup. I have put the new bases under the BASES folder and labeled them for the old chargers. I created new folders for the watch charger pieces and labeled the non fast chargers as REGULAR.

As a note, these pieces only work on the genuine Apple Watch chargers. Any third party charger will very likely not work.

Use this as a guide if you are unsure of which charger you have:

Bases:

There are 4 bases: A phone only base, a watch only base, and two combined bases. The difference between the two combined bases is that the compact version brings the watch and phone a little closer together. Only use the compact base if you have an iPhone 12 or 13 Mini.

Other Pieces:

There are pieces for every phone that supports MagSafe, so make sure you are downloading the right piece! There are also tighter and looser tolerance versions of each piece (the tolerance has to do with the charger interface, not the interface with the base piece).

There are also different pieces for the different sized watches. There are pieces for each size of watch, as well as the different types of chargers (fast charger or non fast charger).

Print at 0.2mm layer height. Really only 2 perimeters are needed, but if you want more go right ahead. 15% infill does just fine and keeps filament usage down.

Lay all models flat, with the cable channels facing down

If you are having trouble getting the phone or watch piece to fit in the base, try scaling the base up by 1%. This should help the pieces fit together easier.

Assembly video:
