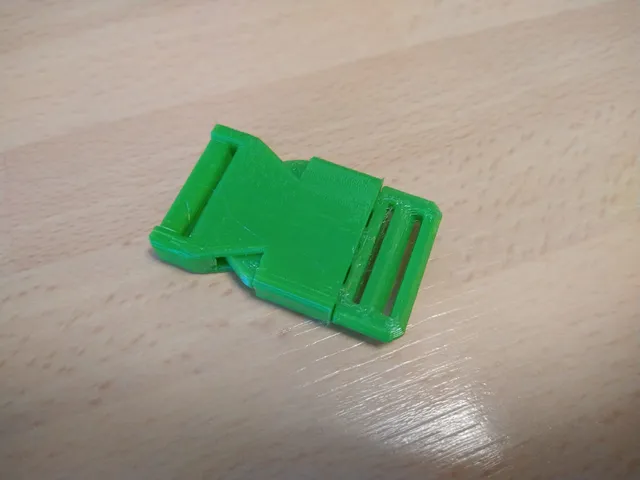

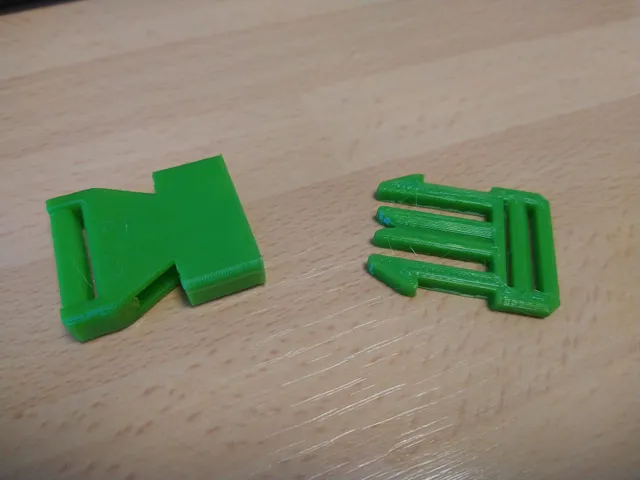

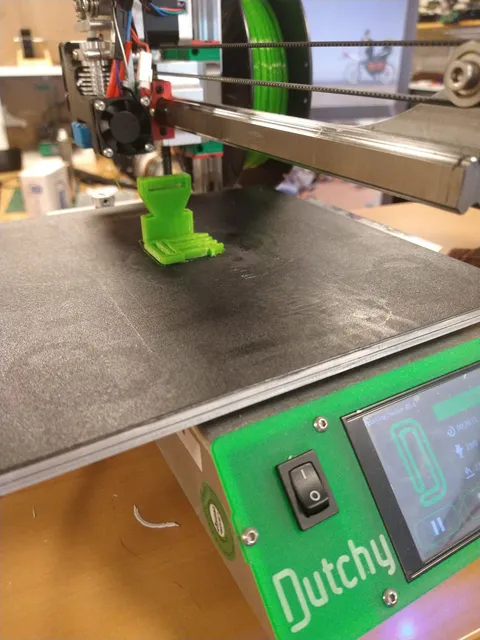

{"data":{"make":{"id":"1717937","created":"2024-04-16T09:22:32.899142+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"7","name":"Other","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"1466295","handle":"Rossero","verified":false,"dateVerified":null,"publicUsername":"Rossero","avatarFilePath":"media/auth/avatars/6d/6d34d1ca-b12b-4873-b582-0d79da6cdbc7.jpg","badgesProfileLevel":{"profileLevel":19,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"1550304","filePath":"media/comment_images/53/89871c-9d4f-4e13-bc5e-238d73aa358b/whatsapp-image-2024-04-16-at-112056-2.jpeg","rotation":0,"__typename":"CommentImageType"},{"id":"1550303","filePath":"media/comment_images/b2/21907d-00c6-483e-acac-671c39da3585/whatsapp-image-2024-04-16-at-112056-1.jpeg","rotation":0,"__typename":"CommentImageType"},{"id":"1550302","filePath":"media/comment_images/4f/590e69-869c-4fcb-bec3-a1d6fe0cbc99/whatsapp-image-2024-04-16-at-112056.jpeg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"Printed in PETg, quick print, feels sturdy, bit on the stiff side but well designed for 3D printing!","rating":null,"likesCount":0,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"567383","ratingAvg":"5.0000000000","ratingCount":4,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType","model":{"eligibleForNomination":false,"id":"567383","slug":"classic-strap-buckle","name":"Classic strap buckle","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"5.0000000000","myRating":null,"ratingCount":4,"description":"

This is a classical strap buckle as can be found on backpacks and other kind of low-load applications. The commercial, injection molded buckles of this kind are cheap to buy online. But hey, why buy if you can print in your favorite color?

I just noticed that I did not see such a classical buckle in the strings and straps contest yet. Likely because all the designs were published before already. So here is my version of a freshly designed buckle for the common one-inch straps.

This design can be easily printed without supports and will work out-of-printer. Simply print both parts in the uploaded orientation. PETG is clearly preferable due to its flexibility. I recommend 4 perimeters and 100% infill.

If you want a really cool buckle I recommend this \u201csecret unlock mechanism\u201d design: https://www.printables.com/model/565652

For a no-nonsense buckle mechanism, which is really tough and strong but not that quickly to open and close, I still favor the double D-ring principle. It is no coincidence that premium helmet makers still use it until today.

Get your double D-ring buckle here for 20mm straps:
https://www.printables.com/model/415716

\u2026and here for regular one-inch straps:
https://www.printables.com/model/121235

You need the strap tensioner shown in the pictures to adjust the length of your straps? You can find them with double D-ring designs in the links stated above.

Happy printing!
