{"data":{"make":{"id":"1710746","created":"2024-04-13T12:31:15.570164+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"1","name":"Prusa MK3/S/S+","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"297987","handle":"hitchhiker4200","verified":false,"dateVerified":null,"publicUsername":"hitchhiker4200","avatarFilePath":"media/auth/avatars/8a/8a80f24e-b04d-4684-9135-c8bf7b4edbf7.jpg","badgesProfileLevel":{"profileLevel":14,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"1543224","filePath":"media/comment_images/94/e895ee-7202-4c16-b8c4-3b1841894b75/pxl_20240413_1227351652.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"A great design and very straightforward to print once you get it dialed in. I printed a few millimeters up to test the fit, then started mass production.","rating":5,"likesCount":0,"liked":null,"membershipAgeMonths":null,"membershipTier":null,"__typename":"PrintCommentType","model":{"id":"311599","slug":"vase-mode-battery-cases-aa-aaa-and-cr123","name":"Vase mode battery cases \u2013 AA, AAA, and CR123","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"5.0000000000","myRating":null,"ratingCount":8,"description":"

-\u2013 == Update 06/37/2023 == \u2013
You may need to adjust x-y scale by +-/1-2% to account for the variation of battery sizes. I have printed 30+ holders and only had to do this one or two times.

\u2013-== Original image ==--
-- == Vase-mode battery cases \u2013 AA, AAA, and CR123 == --
These are simple battery (AA, AAA, CR123) holders that you can toss in your gear bag. These are printed in vase mode with a 120% flow rate - see below. To release the batteries, just squeeze the case from the two ends and shake. The two battery holders can be tight, and it gets looser as the number of batteries goes up.

-- == Print Settings == --
Red+Black were printed in PLA, 0.4 Nozzle
VASE MODE (Spiralize Outside Contour in Cura)
Layer Height: 0.28
Line Width: 0.4
Bottom Layers: 3
Wall Flow: 120%
Bottom Flow: 105%
Cooling Fan: 100%

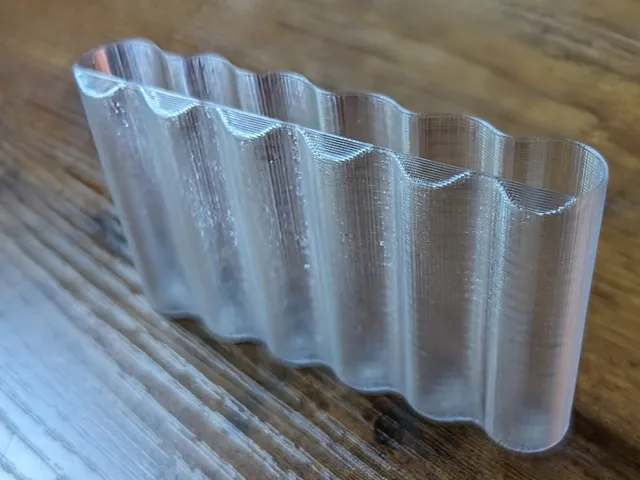

-- The CLEAR cases in the pictures were printed with transparent PETG. Same settings as above but increased temp +10 than normal PETG, and set the flow rate to 130% with the cooling fan OFF.

","category":{"id":"50","path":[{"id":"48","name":"Hobby & Makers","nameEn":"Hobby & Makers","description":"Are you a maker? Everyone is, be a printer. Upgrade your home workshop and combine different materials and methods of crafting including 3D printing.","__typename":"CategoryType"},{"id":"50","name":"Organizers","nameEn":"Organizers","description":"Tidy up your tools and small parts and keep track of them. Print plastic storage cases, modular organizers, cable spools, drawer system, racks and more.","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2023-06-27T04:19:40.050067+00:00","firstPublish":"2022-11-06T15:51:36.714671+00:00","datePublished":"2023-06-27T04:19:40.026542+00:00","dateCreatedThingiverse":null,"nsfw":false,"summary":"These are simple battery (AA, AAA, CR123) holders. Fast print in vase mode with a 120% flow rate.","likesCount":34,"makesCount":9,"liked":null,"printDuration":null,"numPieces":0,"weight":null,"nozzleDiameters":null,"usedMaterial":null,"layerHeights":null,"mmu":false,"materials":[],"dateFeatured":null,"downloadCount":194,"displayCount":882,"filesCount":12,"privateCollectionsCount":30,"publicCollectionsCount":14,"pdfFilePath":"media/prints/311599/pdfs/311599-vase-mode-battery-cases-aa-aaa-and-cr123-d993c736-e5d1-4c2f-969f-05a04674f3b9.pdf","commentCount":15,"userGcodeCount":0,"remixCount":0,"canBeRated":false,"printer":null,"image":{"id":"1319129","filePath":"media/prints/311599/images/2706202_7c0e8174-08a5-4bc4-8007-9350ea86b989/batvase2.jpg","rotation":0,"imageHash":"5FgKDYbxyWhoplZmmUVoihtgszBX","imageWidth":3432,"imageHeight":2574,"__typename":"PrintImageType"},"images":[{"id":"1319129","filePath":"media/prints/311599/images/2706202_7c0e8174-08a5-4bc4-8007-9350ea86b989/batvase2.jpg","rotation":0,"imageHash":"5FgKDYbxyWhoplZmmUVoihtgszBX","imageWidth":3432,"imageHeight":2574,"__typename":"PrintImageType"},{"id":"1319138","filePath":"media/prints/311599/images/2706204_00f64ef2-eb66-4f0f-a380-a55993d28b27/batvase1.jpg","rotation":0,"imageHash":"oigKBYLyzIiGmHeNlnZ2efeKrvKH","imageWidth":3165,"imageHeight":2373,"__typename":"PrintImageType"},{"id":"1319139","filePath":"media/prints/311599/images/2706205_e1020d3f-8fca-44fd-97b7-2f2e09134a7c/diagram.png","rotation":0,"imageHash":"ORgKDYS94DiIh3hdtoWIeTB3AXMX","imageWidth":1063,"imageHeight":711,"__typename":"PrintImageType"}],"tags":[{"name":"holder","id":"165","__typename":"TagType"},{"name":"case","id":"233","__typename":"TagType"},{"name":"spiral","id":"602","__typename":"TagType"},{"name":"vasemode","id":"2694","__typename":"TagType"},{"name":"holders","id":"3989","__typename":"TagType"},{"name":"double","id":"5218","__typename":"TagType"},{"name":"cases","id":"6013","__typename":"TagType"},{"name":"triple","id":"10780","__typename":"TagType"}],"thingiverseLink":null,"filesType":null,"previewFile":{"id":"1397707","filePreviewPath":"media/prints/311599/stls/2706223_a8a97590-0af6-431a-8212-a39444a4fa6b/aa_3x_batteryvase_preview.png","__typename":"STLType"},"license":{"id":"2","disallowRemixing":false,"__typename":"LicenseType"},"remixParents":[],"remixDescription":null,"__typename":"PrintType","user":{"id":"386929","handle":"OfTheSea_386929","verified":false,"dateVerified":null,"publicUsername":"OfTheSea","avatarFilePath":"media/auth/43842caf-2644-4e31-93e5-564bda3934d5.png","badgesProfileLevel":{"profileLevel":11,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isFollowedByMe":false,"canBeFollowed":true,"designer":false}},"unavailableModel":null,"replies":[]}}}
