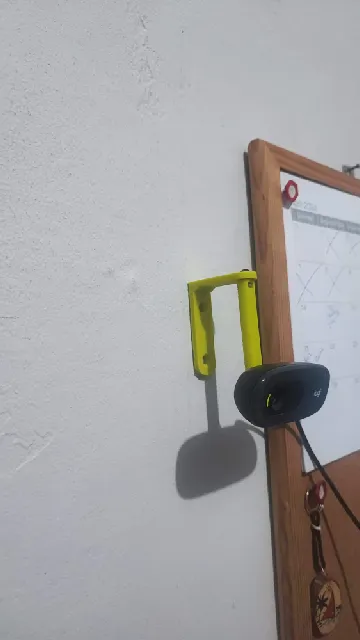

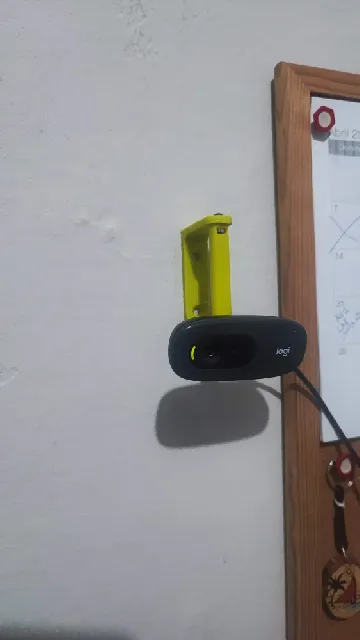

Simple mount for the Logitech C270. The arm is from Antoniolr_95\u00b4s camera mount (link to the left), I just made a simple holder for it with a pair of screw holes.

I use this in my IKEA stuva printer cabinet but can be mounted anywhere you can get a screw in. The two holes for mounting are measured to fit where you would normally attach your shelves.

Hardware needed:

1 M3 12mm

1 M3 16mm

2 M3 nuts

2 4x20 countersunk wood screws

EDIT 2017-10-19: Designed v2 of the mount arm, with a hole for the nut to make it easier to tighten the arm to the camera.

Print Settings

Printer Brand:

Prusa

Printer: \n

Prusa Clone

Rafts:

Doesn't Matter

Supports: \n

Resolution:

0.2

Infill: \n

20%
