It has been bugging me that these boxes droop when pulled out half way. Yhe box is weaker in the middle thr weight of the contents make the box fall off of the grooves when pulling them out, even when empty

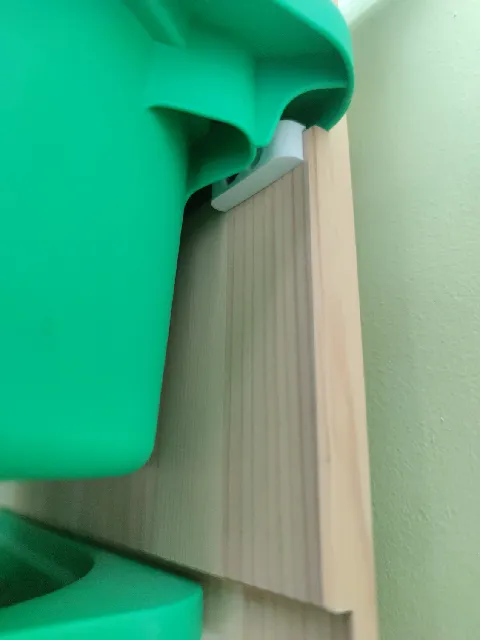

These little stabilizers provide extra support for the middle section of the boxes. They do not impede or even touch the box when fully inserted, but provide extra ledge when boxes are pulled half open (etc when the kids are playing with their toys).

Symmetrical, so no need for mirroring.

Two holes for screws, but I use only one screw for each support. This allows for using alternate holes for opposing sides of the cabinet and the screws don't collide.

Screw hole: Cavity for a round head of 6,8mm diameter, 3mm deep. Thread diameter 3,5mm.
