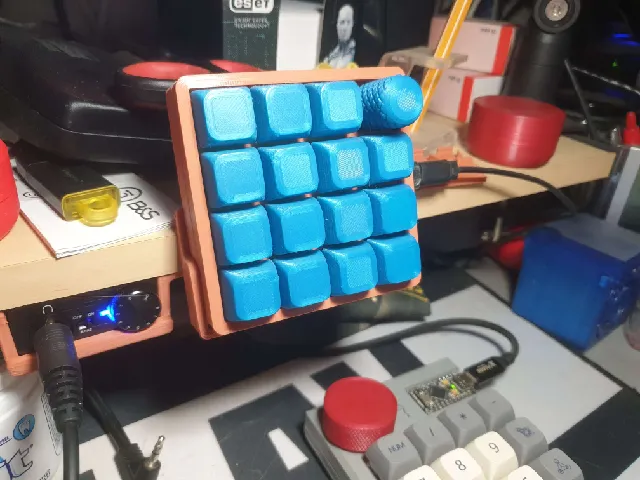

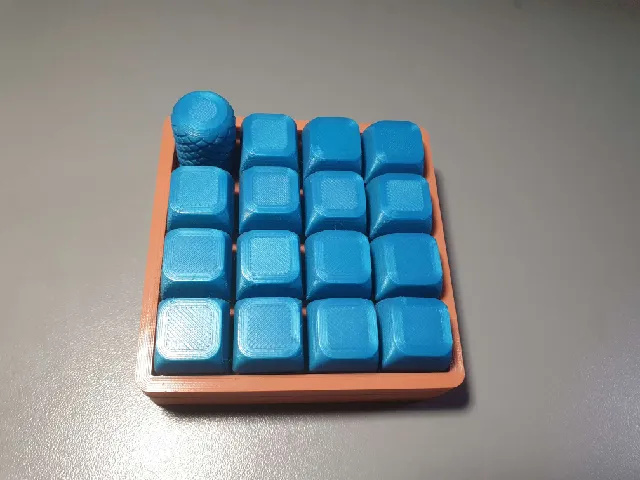

The VOID16 Macropad is a handwired 4x4 pad that uses a Pro Micro as a controller.

Bill of materials Redux

6 x M2x3x3.5 OD heat inserts (aliexpress)
4 x M2x10 Allen head screws (aliexpress)
2 x M2x6 Countersunk screws (aliexpress)

Bill of materials v1

4 x M3x10 Allen head bolts (tme.eu/aliexpress)
hotglue

STL mirror / QMK fork

The files are also hosted on Github, along with precompiled firmware files and a QMK fork that contains a basic keymap and experimental VIA Configurator support. More info here

Updates

31.01.2024 - added .step Redux models
14.06.2023 - added Redux models, modular controller mounts, m2 hardware and brass inserts
14.04.2020 - slightly increased outer wall thickness around the screw holes
28.03.2020 - added an alternate layout at u/dgooglr's request
16.03.2020 - added a small inner fillet
14.03.2020 - small adjustments to the inner guides for better fitment between the upper and lower parts of the case; increased surface area of the screw holes for the upper part of the case
