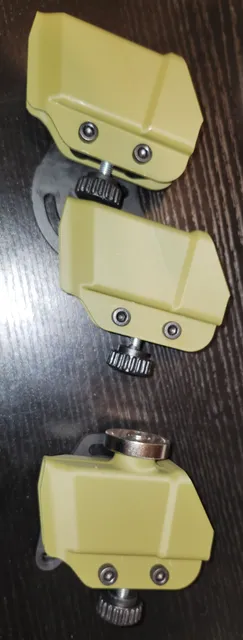

{"data":{"make":{"id":"1670371","created":"2024-03-29T11:54:48.094998+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"336","name":"Bambu Lab X1","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"1192140","handle":"nater69420_1192140","verified":false,"dateVerified":null,"publicUsername":"nater69420","avatarFilePath":"media/auth/avatars/e7/e790b97a-a423-4bbf-ba54-ece73f92bf60.jpg","badgesProfileLevel":{"profileLevel":9,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"1503267","filePath":"media/comment_images/c7/9994bc-968c-41b1-9290-bd982aae5848/mag-pouches.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"These are awesome! (The Canik Double Stack works for the PDP PRO 18 Round Magazine)","rating":5,"likesCount":1,"liked":null,"membershipAgeMonths":null,"membershipTier":null,"__typename":"PrintCommentType","model":{"id":"358633","slug":"double-stack-race-mag-pouch-canik-glock-mp-cz-sig","name":"Double Stack Race Mag Pouch Canik Glock M&P CZ Sig Taurus USP9 Colt 2011","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"4.9230769231","myRating":null,"ratingCount":13,"description":"

Double Stack Mag Pouch for left hand loading. This is designed to work with ELS and now also Tek-Lok mounting systems.

If you have a gun that I don't have a pouch for just measure the magazine with your calipers (LxW in 3 different spots) and message me the dimensions and model pew it's for. I'll post the STL for it as soon as I can.

Features

Cant adjustable from 0 to 70\u00b0

You do not have to take this apart to adjust the cant. Loosen the arc screw and pivot screw (pivot screw is behind the mount hole shown in silver, access it through the mount hole), set it where you want and tighten it back up.

Retention is adjusted with an M6 screw that is buried in the MRD.

If you need right hand loading just mirror the angle plate and mag pouch in your slicer.

Print pouch upside down on the angle with supports

I print with 0.6 nozzle set at 0.24 layer height, wall count at 6, 5 tops and bottoms, infill 50% triangle for all parts.

I print all mine in PolyMaker PETG, (some of the prototypes in the pics were printed in PLA, the MRD and Angle Plate are PETG and work extremely well. I have not used a printed ELS yet, I only modeled for assembly design.

BOM - Single Mag Pouch

(1 each) printed parts - Mag pouch, MRD, Angle Plate ELS or Tek-Lok

(5) Low profile M5 x 12 cap screws.

I used these for the ELS mount

M5-0.8 x 12mm Flanged Button Head Socket Cap Screw Bolts, Allen Socket Drive, Black Oxide Stainless Steel 304, Quantity 50: Amazon.com: Industrial & Scientific

Flanged buttonheads will be too big for the counterbore on the Tek-Lok, you can use regular buttonheads but if you want a true flush fit i found these

M5 x 12 (25 Pack) Flat Head Hex Socket Cap Screws Bolts, 304 Stainless Steel 18-11, Hex Drive, Bright Finish, Fully Machine Thread: Amazon.com: Industrial & Scientific

(5) M5 x 5.8 x 7.1 Heat set insert with lead-in

50pcs 3D Printing Brass Nuts, M5x5.8x7.1mm M5 Threaded Insert Knurled Brass Nuts Female Thread Knurled Heat Embedment Nut for 3D Printing Parts Loptop Automotive Plastic Shell: Amazon.com: Industrial & Scientific

(2) M5 x 20 Flanged Button Head Cap Screws

M5 x 20mm Flanged Button Head Socket Cap Screws, Black Oxide, Full Thread, Allen Socket Drive, 304 Stainless Steel, 100 PCS: Amazon.com: Industrial & Scientific

(2) M5 Nuts. Mine came in an assortment set, im sure you can get them on amazon as well. Truss nuts or Chicago nuts would look better but with where the nuts are the dont bother me to be regular hex nuts.

(1) M6 x 16 Thumbscrew (or regular screw)

DIN 653 Steel Flat Knurled Thumb Screws, Blackened Finish | JW Winco Standard Parts

About the heat set inserts. I only use the heat sets with the lead-in and for these you need to insert from the back of the part. You cannot access the back of the holes in the mag pouch with a soldering iron so I made the holes a \u201clittle more than snug\u201d interference fit and put a step at the end of the hole. So you will need to use some needle nose pliers and put the lead-in end of the heat set in to the hole from INSIDE the mag pouch, then put a washer and M5 screw on the outside and start cranking it down until the end of the heat set is clear of everything on the inside. It doesnt take long and surprisingly they hold REALLY well. The mag pouch in the picture was a prototype, thats why there is a 3rd hole

BOM - Double Mag Pouch for ELS

(2) Mag Pouch, (2) MRD, (1) ETCropDuster Plate

(7) M5 x 12 Flanged Button Head Cap Screws

M5-0.8 x 12mm Flanged Button Head Socket Cap Screw Bolts, Allen Socket Drive, Black Oxide Stainless Steel 304, Quantity 50: Amazon.com: Industrial & Scientific

(7) M5 x 7 x 8 or M5 x 5.8 x 7.1 Heat set insert with lead-in

(5) M5 x 20 Flanged Button Head Cap Screws

M5 x 20mm Flanged Button Head Socket Cap Screws, Black Oxide, Full Thread, Allen Socket Drive, 304 Stainless Steel, 50 PCS: Amazon.com: Industrial & Scientific

(5) M5 Nuts. Mine came in an assortment set, im sure you can get them on amazon as well. Truss nuts or Chicago nuts would look better but with where the nuts are they dont bother me to be regular hex nuts.

(2) M6 x 16 Thumbscrew (or regular screw) DIN 653 Steel Flat Knurled Thumb Screws, Blackened Finish | JW Winco Standard Parts

(1) M5 over size flat washer (could be printed)

BOM - Double Mag Pouch for Tek-Lok

(2) Mag Pouch, (2) MRD, (1) Tek-Lok Adapter Plate - Remixed by @Micha_196828

(7) M5 x 12 Flanged Button Head Cap Screws

M5-0.8 x 12mm Flanged Button Head Socket Cap Screw Bolts, Allen Socket Drive, Black Oxide Stainless Steel 304, Quantity 50: Amazon.com: Industrial & Scientific

(7) M5 x 7 x 8 or M5 x 5.8 x 7.1 Heat set insert with lead-in

(5) M5 x 20 Flanged Button Head Cap Screws

M5 x 20mm Flanged Button Head Socket Cap Screws, Black Oxide, Full Thread, Allen Socket Drive, 304 Stainless Steel, 50 PCS: Amazon.com: Industrial & Scientific

(2) M6 x 16 Thumbscrew (or regular screw) DIN 653 Steel Flat Knurled Thumb Screws, Blackened Finish | JW Winco Standard Parts

Update 11252024

Added Glock 20 21 Mag Pouch

Update 10182024

Added Sig mag pouch with Magnet

Update 06192024

Added 2011 style mag pouch
Added Tek-Lok Angle Adjust Plate

Update 02252024

Added Colt SMG Mag Pouch

Update 05042023

Added Sig P220 P365 Mag Pouch
Added Taurus G3 Mag Pouch
Added Dimensions in the file notes. If your piece isnt listed you can measure and find one that would work using this dimension tolerance. (L +/- 0.75mm) and (W +/- 0.25mm). If something fits in that dimension for your mag then it will work very well for you.

Update 04242023

Added Glock Mag with Magnet
Added Canik Mag with Magnet

Requires magnet with bigger than 5mm hole, M5 x 12 flat head screw and the same M5 insert used everywhere else. Check magnet dimensions before you order as many i have seen many are under 5mm or do not have a dimension on it. I found this one on Amazon. Neosmuk Magnets, 130lb Super Strong Round Magnet with Hole in The Center for Mounting, Heavy Duty Neodymium Cup Magnet with Screw for Wall, Rare Earth Magnets Round Base Disc Magnet: Amazon.com: Industrial & Scientific and these screws MonsterBolts - M5 x 12mm Flat Head Socket Cap Screws, DIN 7991, Stainless Steel, 50 Pack: Amazon.com: Industrial & Scientific

Update 04052023

Added Link for Low Profile Thumb Screws

Update 01122023

Added ETCropDuster Plate for running double mag pouches. 35\u00b0 of cant adjustment at the ELS and 35\u00b0 more at the plate for a total of 70
Added Glock G17 mag pouch
Added Smith Wesson M&P 9mm mag pouch

Update 01132023

Added Chamfer to inside of pouch around the heat set insert holes
Made heat set insert holes slightly larger
Added Canik Mag Pouch V2

Update 01152023

Got some feedback about the ELS not fitting (too tight). Updated the model.
Added CZ Mag Pouch
