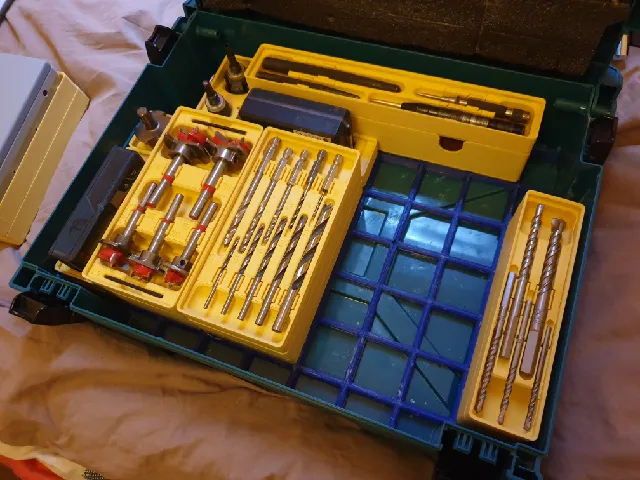

{"data":{"make":{"id":"1662855","created":"2024-03-26T16:38:59.059455+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"292","name":"Creality Ender 3 V2","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"1014579","handle":"BertrandL_1014579","verified":false,"dateVerified":null,"publicUsername":"Bertrand L.","avatarFilePath":"media/auth/1353969a-82f2-4995-92fc-29b2f8d4ace0.png","badgesProfileLevel":{"profileLevel":14,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"1495811","filePath":"media/comment_images/7b/be6af5-6ffd-4293-ae75-1003b40db083/2024-03-26-173135.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"Fit perfectly !","rating":5,"likesCount":1,"liked":null,"membershipAgeMonths":null,"membershipTier":null,"__typename":"PrintCommentType","model":{"id":"325506","slug":"gridfinity-makpac-systainer-baseplate","name":"Gridfinity MakPac Systainer Baseplate","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"4.9285714286","myRating":null,"ratingCount":14,"description":"

Gridfinity baseplate for Makita MakPac

Support needed (Someone printed it upsidedown and it worked but I didn't try)

It does not fit in the MakPac type 4 (sorry el_flexos). I'll try to create a new version for it.

Makpac Case Type 1 size: The \u201c9 tall\u201d Gridifnity bins will lock in place if you have that case lid sponge/foam add-on.

23-06-07 V2.1

Paul Busby mentioned that there should be some design generation difference so I changed a little bit the back row grid. It also should have a better fit with the larger struts for the MacPacks Type 2 and 3 as Markus pointed out.

The front roll still the same from the V2. I just rename and re-upload it to be easier to download and do not cause any confusion across the files.

I didn't print this version yet but I'll update the description and photos as soon as I do that..

23-03-04 V2

I move the position to fit more pieces following the idea from suit. So now we have 50 spaces instead of 48 from the previously version.

sapi100 kindly asked me to split the parts so I also create a version with 6 parts for smaller printers.

I did some other small changes and now used base plate from the FusionGridfinityGenerator from Leo.

The two first photos from the gallery are from the V2 6 parts version but I do also printed the V2 4 parts version to check the fit before post here. The last photo, yellow and black, is from the V1.

22-12-28 EDIT

Balu kindly mention that \"The Festool Systainers seem to have a different bottom pattern, so it probably won't fit on those. You can see the difference here: https://www.printables.com/model/309366-gridfinity-base-for-systainer/comments#makes\"
Thank you!

It probably fits in other Systainer containers - If some one make and test I update the description
