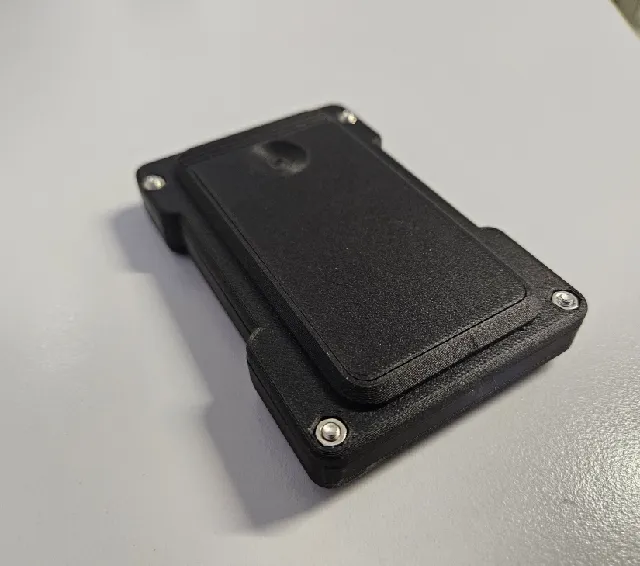

{"data":{"make":{"id":"1643752","created":"2024-03-19T07:04:07.350687+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"620","name":"Prusa MK4","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"92679","handle":"Boris_92679","verified":false,"dateVerified":null,"publicUsername":"Boris","avatarFilePath":"media/auth/avatars/0b/0bc550f6-88b6-4a49-bdc7-a1934cd14eb3.jpg","badgesProfileLevel":{"profileLevel":12,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"1477113","filePath":"media/comment_images/e3/f3d052-842b-4534-bc61-6dda14638261/20240319_080234.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"By far the best wallet design on Printables.\n\nThe tolerances are spot on with my Prusa MK4!","rating":5,"likesCount":1,"liked":null,"membershipAgeMonths":null,"membershipTier":null,"__typename":"PrintCommentType","model":{"id":"796303","slug":"pop-up-credit-card-wallet-spreader-with-coincash-s","name":"Pop-up credit card wallet spreader with coin/cash storage","authorship":"remix","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"4.9086021505","myRating":null,"ratingCount":186,"description":"

This is a remix of the popular Modular card wallet by CHKING. I've strengthened the sides a little and added a slick storage compartment on the back which keeps it nice and slim. This wallet version is only for 6 cards.

Small magnets can be placed in the back door if needed but not essential as the latch is tight and it wouldn't be able to open on its own (Depending on your printer tolerance/tuning)

(Magnets 4x2mm)

I've also made a \u201cSpacer\u201d which takes the space of 5 cards, so if you wanted to go out and didn't want to carry all your cards, you can use the spacer plus 1 card only.

There are two lever versions, one has an added insert which will give the slider better grip if you prefer this option.

Print at layer height 0.2 with 3 walls, 4 top and 4 bottom layers and 15 - 20% grid infill.

I recommend printing the Middle section, Card pusher and Lever in PETG for its flexural strength . The top and bottom sections will be fine using any type of filament.

You will need 4 M3 x 12mm bolts and nuts.

*EDIT 07Feb24: Added a door with tighter closure as some said it was not tight enough.

*EDIT 17Feb24: Added back cover and door with slightly bigger magnet holes as some said 4mm magnets where too big.

*EDIT 24Feb24 Added middle section with keyring loop attachment. Can be positioned either left or right of wallet upon assembly.

","category":{"id":"40","path":[{"id":"1","name":"3D Printers","nameEn":"3D Printers","description":"Upgrading and improving your 3D printer couldn't be easier - no matter whether you're looking for functional or aesthetic modifications. Discover the best improvements.","__typename":"CategoryType"},{"id":"40","name":"Accessories","nameEn":"Accessories","description":"Add cool improvements to your 3D printer - drybox, MMU2S filament buffer, or extruder visualizer. These smart ideas will make your printer even better!","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2024-03-25T19:43:49.980004+00:00","firstPublish":"2024-03-07T18:26:08.272705+00:00","datePublished":"2024-03-25T19:43:49.942258+00:00","dateCreatedThingiverse":null,"nsfw":false,"summary":"Minimalist card wallet Holds 6 cards and coins","likesCount":4062,"makesCount":212,"liked":null,"printDuration":null,"numPieces":0,"weight":null,"nozzleDiameters":null,"usedMaterial":null,"layerHeights":null,"mmu":false,"materials":[],"dateFeatured":null,"downloadCount":9379,"displayCount":70083,"filesCount":13,"privateCollectionsCount":2622,"publicCollectionsCount":1519,"pdfFilePath":"media/prints/796303/pdfs/796303-pop-up-credit-card-wallet-spreader-with-coincash-storage-bdae387b-5433-4209-9d14-e3e03f722e0f.pdf","commentCount":352,"userGcodeCount":0,"remixCount":20,"canBeRated":false,"printer":null,"image":{"id":"2877775","filePath":"media/prints/796303/images/6166465_58d4ae24-f163-4ada-a250-e4e13d5bf8ec_0537fc6d-8f36-46f1-afde-31798a48234b/img_1333.jpg","rotation":0,"imageHash":"4CgKFgKoh9iKh/iIiGiHhoWYu2C3CTY=","imageWidth":3024,"imageHeight":3514,"__typename":"PrintImageType"},"images":[{"id":"2877775","filePath":"media/prints/796303/images/6166465_58d4ae24-f163-4ada-a250-e4e13d5bf8ec_0537fc6d-8f36-46f1-afde-31798a48234b/img_1333.jpg","rotation":0,"imageHash":"4CgKFgKoh9iKh/iIiGiHhoWYu2C3CTY=","imageWidth":3024,"imageHeight":3514,"__typename":"PrintImageType"},{"id":"2877774","filePath":"media/prints/796303/images/6166462_a00090f5-300b-44a3-90fd-25acac974a0d_a8ede5ec-d418-44d7-999e-80f6c892264e/img_1330.jpg","rotation":0,"imageHash":"3xgGFgLqp+d6h/Z4eElnZmV6+XGbDJc=","imageWidth":2940,"imageHeight":3358,"__typename":"PrintImageType"},{"id":"2877773","filePath":"media/prints/796303/images/6166463_0d228c88-2bb7-4a00-858b-792e841fdc7e_6859f711-31e8-41bd-aad9-4e99567b99e0/img_1329.jpg","rotation":0,"imageHash":"ohgGFQLKo69o+JmplGiEaKlQmQdV","imageWidth":3024,"imageHeight":4032,"__typename":"PrintImageType"},{"id":"2877776","filePath":"media/prints/796303/images/6166464_16039849-ded3-4016-9419-dc0fa43842f6_91721e31-8fc2-4479-b470-d36d72a40f1c/img_1328.jpg","rotation":0,"imageHash":"pBgGDQLLhp936XiYlXZmaLdgbAmW","imageWidth":3024,"imageHeight":4032,"__typename":"PrintImageType"},{"id":"2945902","filePath":"media/prints/796303/images/6318636_85ea3415-8a33-413f-8dcb-eca736ad6bc0_30784f0d-303d-4204-9a91-f0a1b2150a77/img_1479.jpg","rotation":0,"imageHash":"YhgKDgLIhsd5h/hoeWiGZpd371PqFgU=","imageWidth":3024,"imageHeight":3377,"__typename":"PrintImageType"}],"tags":[{"name":"card","id":"168","__typename":"TagType"},{"name":"storage","id":"1916","__typename":"TagType"},{"name":"wallet","id":"1980","__typename":"TagType"},{"name":"minimalist","id":"2254","__typename":"TagType"},{"name":"creditcard","id":"2414","__typename":"TagType"},{"name":"creditcardwallet","id":"14441","__typename":"TagType"},{"name":"creditcardholder","id":"27008","__typename":"TagType"},{"name":"holderfortoiletpaper","id":"126829","__typename":"TagType"}],"thingiverseLink":null,"filesType":null,"previewFile":{"id":"3382640","filePreviewPath":"media/prints/796303/stls/6166376_6f3ab6c5-996c-49bf-963a-0dfa43570d51_6fdd58d8-96d7-4749-9c25-733f55fb93be/card-wallet-top_preview.png","__typename":"STLType"},"license":{"id":"1","disallowRemixing":false,"__typename":"LicenseType"},"remixParents":[{"id":"456301","modelId":"450194","modelName":"Modular Wallet - 6, 8, 12, 14, or 16 Cards","modelAuthor":{"id":"685","handle":"chking","verified":false,"publicUsername":"chking","__typename":"UserType"},"model":{"id":"450194","name":"Modular Wallet - 6, 8, 12, 14, or 16 Cards","slug":"modular-wallet-6-8-12-14-or-16-cards","datePublished":"2024-06-09T01:42:53.088351+00:00","image":{"id":"1996637","filePath":"media/prints/450194/images/4192018_594a928f-90bb-4854-b41b-c5af62a3db6f/pxl_20230702_014710909.jpg","rotation":0,"imageHash":"3RgKHYRpiIhgeXfJZ5hldqqGf3v5","imageWidth":4032,"imageHeight":3024,"__typename":"PrintImageType"},"club":false,"authorship":"author","license":{"id":"1","name":"Creative Commons \u2014 Attribution","disallowRemixing":false,"__typename":"LicenseType"},"eduProject":null,"__typename":"PrintType"},"url":null,"urlAuthor":null,"urlImage":null,"urlTitle":null,"urlLicense":null,"urlLicenseText":null,"__typename":"PrintRemixType"}],"remixDescription":"

Strengthened sides and added compartment on the back for coins etc.

","__typename":"PrintType","user":{"id":"111723","handle":"Mikester","verified":false,"dateVerified":null,"publicUsername":"Mike","avatarFilePath":"media/auth/avatars/f0/f0c280ec-a9da-4e8b-9d0f-95616a55f67d.jpg","badgesProfileLevel":{"profileLevel":14,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isFollowedByMe":false,"canBeFollowed":true,"designer":false}},"unavailableModel":null,"replies":[{"id":"1643767","created":"2024-03-19T07:18:12.980018+00:00","edited":null,"deleted":null,"isMake":false,"printer":null,"parent":{"id":"1643752","__typename":"PrintCommentType"},"author":{"id":"111723","handle":"Mikester","verified":false,"dateVerified":null,"publicUsername":"Mike","avatarFilePath":"media/auth/avatars/f0/f0c280ec-a9da-4e8b-9d0f-95616a55f67d.jpg","badgesProfileLevel":{"profileLevel":14,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[],"mentions":[],"text":"Thanks very much, I also used an MK4 so my designs were based on that and fits are exact.","rating":null,"likesCount":1,"liked":null,"membershipAgeMonths":null,"membershipTier":null,"__typename":"PrintCommentType"}]}}}

Pop-up credit card wallet spreader with coin/cash storage

Pop-up credit card wallet spreader with coin/cash storage
