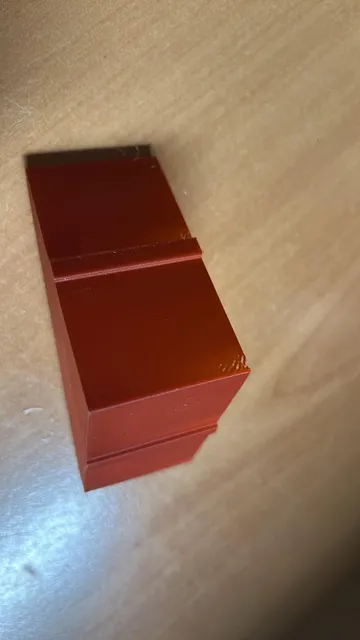

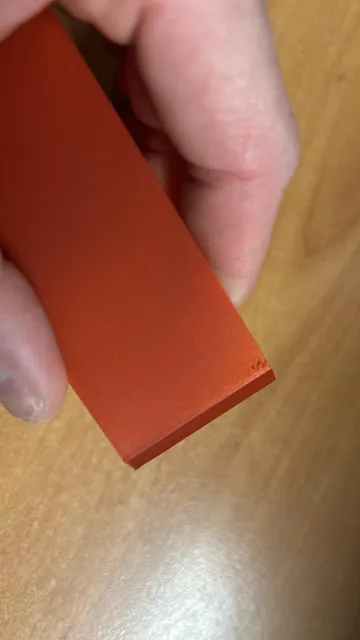

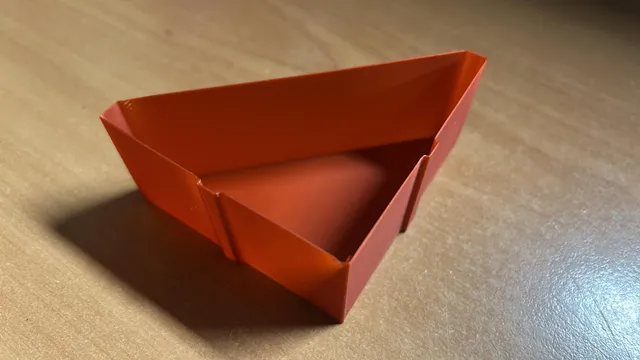

{"data":{"make":{"id":"1630247","created":"2024-03-13T21:51:59.999416+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"292","name":"Creality Ender 3 V2","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"1503543","handle":"Moose3D_1503543","verified":false,"dateVerified":null,"publicUsername":"Francq","avatarFilePath":"media/auth/avatars/16/1639b095-e43c-437c-aac7-bbcfab0c11ef.png","badgesProfileLevel":{"profileLevel":15,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"1463969","filePath":"media/comment_images/59/5c5d4b-8f21-4dbb-a28b-7aaf76f9382a/431091439_770858697974520_3917328460531313533_n.jpg","rotation":0,"__typename":"CommentImageType"},{"id":"1463968","filePath":"media/comment_images/91/b6ffb8-3c77-4ae0-883a-f2ab287fbd59/432598181_425943939974117_5358800099404001117_n.jpg","rotation":0,"__typename":"CommentImageType"},{"id":"1463967","filePath":"media/comment_images/d2/e9edd9-ce37-43ee-bbf8-77af1e576c2e/431163127_944162970673860_3933585076133287937_n.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"Tr\u00e8s rapide \u00e0 imprimer ! On voit bien et rapidement l'endroit ou \u00e7a commence \u00e0 perdre en qualit\u00e9.","rating":5,"likesCount":0,"liked":null,"membershipAgeMonths":null,"membershipTier":null,"__typename":"PrintCommentType","model":{"id":"123877","slug":"klipper-pressure-advance-tower-v2","name":"Klipper Pressure Advance Tower V2","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"4.8750000000","myRating":null,"ratingCount":8,"description":"

I prefer this model better than the original.
Lightweight, fast, & easier to read.

Print:
1 Bottom layer
0.2mm layer height
1 Perimeter
0 Top layer
0 Infill

Set all speeds to 100mm/s, except the first layer speed. Use your default value.

Important in Prusaslicer:
Under cooling: Set to 0 \"Slow down if layer print time is below\"
Otherwise 100mm / s cannot be achieved.
And
Turn off \"Lift Z\", during retraction, so as not to falsely trigger the TUNING_TOWER COMMAND .... procedure.

Continue the procedure.
https://www.klipper3d.org/Pressure_Advance.html

For Direct drive extruder, I prefer to use FACTOR = .01, instead of FACTOR = .005.
The precision is good enough anyway, and the printing time goes twice as fast until you find the sweatspot.

","category":{"id":"12","path":[{"id":"1","name":"3D Printers","nameEn":"3D Printers","description":"Upgrading and improving your 3D printer couldn't be easier - no matter whether you're looking for functional or aesthetic modifications. Discover the best improvements.","__typename":"CategoryType"},{"id":"12","name":"Test Models","nameEn":"Test Models","description":"Print test objects to verify the capability of your printer: temp tower, calibration cube, and bridging test, or Bed Level correction tool for advanced users.","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2022-01-24T20:45:29.816913+00:00","firstPublish":"2022-01-24T20:44:08.845190+00:00","datePublished":"2022-01-24T20:44:08.845190+00:00","dateCreatedThingiverse":null,"nsfw":false,"summary":"A faster and easier to read, calibration tower for Pressure Advance in Klipper","likesCount":80,"makesCount":13,"liked":null,"printDuration":null,"numPieces":0,"weight":null,"nozzleDiameters":null,"usedMaterial":null,"layerHeights":null,"mmu":false,"materials":[],"dateFeatured":null,"downloadCount":1723,"displayCount":5909,"filesCount":1,"privateCollectionsCount":56,"publicCollectionsCount":66,"pdfFilePath":"media/prints/123877/pdfs/123877-klipper-pressure-advance-tower-v2-da92a35c-308c-4377-ab9d-0aeda4f7caea.pdf","commentCount":17,"userGcodeCount":0,"remixCount":0,"canBeRated":false,"printer":null,"image":{"id":"614870","filePath":"media/prints/123877/images/1194553_839dbea4-5b24-44c9-8535-2ae3e140bccd/img_20220124_205716.jpg","rotation":0,"imageHash":"GAgODoJmiIiAeYeIeLdYeJiH+p+s38g=","imageWidth":1024,"imageHeight":834,"__typename":"PrintImageType"},"images":[{"id":"614870","filePath":"media/prints/123877/images/1194553_839dbea4-5b24-44c9-8535-2ae3e140bccd/img_20220124_205716.jpg","rotation":0,"imageHash":"GAgODoJmiIiAeYeIeLdYeJiH+p+s38g=","imageWidth":1024,"imageHeight":834,"__typename":"PrintImageType"},{"id":"614869","filePath":"media/prints/123877/images/1194554_a5c94993-0a23-4d33-a2a6-d36064e71761/img_20220124_205615.jpg","rotation":0,"imageHash":"WggGBICliLWPenh5iXy/tcTPeQ==","imageWidth":1024,"imageHeight":566,"__typename":"PrintImageType"}],"tags":[{"name":"calibration","id":"809","__typename":"TagType"},{"name":"tower","id":"1114","__typename":"TagType"},{"name":"pressure","id":"15186","__typename":"TagType"},{"name":"klipper","id":"16010","__typename":"TagType"},{"name":"pressureadvance","id":"60871","__typename":"TagType"}],"thingiverseLink":null,"filesType":null,"previewFile":{"id":"509329","filePreviewPath":"media/prints/123877/stls/1194535_c06406e9-27ed-4746-9320-b402baaa1512/klipper-pressure-advance-tower-v2_preview.png","__typename":"STLType"},"license":{"id":"7","disallowRemixing":false,"__typename":"LicenseType"},"remixParents":[],"remixDescription":null,"__typename":"PrintType","user":{"id":"201398","handle":"Fagge","verified":false,"dateVerified":null,"publicUsername":"Fagge","avatarFilePath":"media/auth/avatars/cf/cfead526-3478-49cb-b403-a671fb3cafd4.jpg","badgesProfileLevel":{"profileLevel":19,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isFollowedByMe":false,"canBeFollowed":true,"designer":false}},"unavailableModel":null,"replies":[]}}}

Klipper Pressure Advance Tower V2

Klipper Pressure Advance Tower V2
