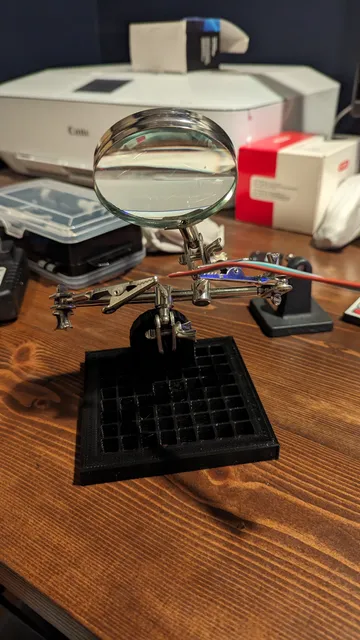

{"data":{"make":{"id":"1578368","created":"2024-02-25T03:16:31.574552+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"546","name":"Creality Ender 3 V2 Neo","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"1691600","handle":"MatthewScher_1691600","verified":false,"dateVerified":null,"publicUsername":"Matthew Schermer","avatarFilePath":"media/auth/e3f543e7-dd15-48cd-ac74-ff46ff40bd1a.jpg","badgesProfileLevel":{"profileLevel":8,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"1411416","filePath":"media/comment_images/e5/c68c04-adf3-4e75-b37e-9af2f5a7ec85/1000003961.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"This is a great design! Thanks for uploading. I hated using mine because the base on it sucks so bad. This actually made the jig useful! My only complaint is the ball on the pin snaps pretty easily. I snapped one off immediately. I guess that's why you included 3. They really need to be printed flat but I don't even think that's possible.","rating":5,"likesCount":1,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"184448","ratingAvg":"5.0000000000","ratingCount":1,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType","model":{"eligibleForNomination":false,"id":"184448","slug":"helping-hand-base","name":"Helping Hand Base","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"5.0000000000","myRating":null,"ratingCount":1,"description":"\n\n\n

I bought a \"Helping Hand Jig\" from Harbor Freight* a while back, and although the price was right and it's been a great help with my soldering, I was disappointed that it tips over so easily.

The first picture in this listing shows the original cast iron base along side the new base I made. The original base, though heavy, is very easy to tip over. The new printed base is light weight, yet you have to really work at it to make it tip over.

I sized all of the parts so that they only need to be \"Pressed Fit\" together, but if you're worried about them coming apart, just use a little super glue during assembly.

I included 3-Posts, since I tend to misplace, break, or damage them with daily use.

This new base works great for me, I hope it's useful to you.

Harbor Freight Helping Hands, Item #60501.

Print Settings

Printer Brand:

Printrbot

Printer: \n

Printrbot Simple Metal

Rafts:

Supports: \n

Resolution:

.25mm

Infill: \n

50%

Notes:

You can use any infill you choose, but I wanted mine to be a little more solid without going for 100%.
