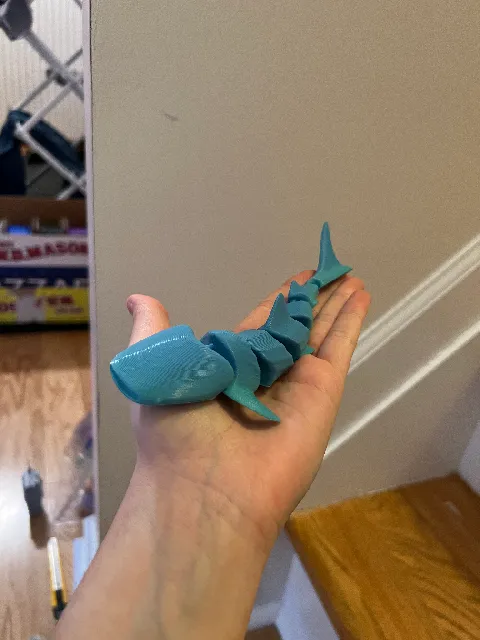

{"data":{"make":{"id":"1563900","created":"2024-02-19T22:18:02.863259+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"567","name":"Elegoo Neptune 3 Plus","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"1035673","handle":"machinerisms_1035673","verified":false,"dateVerified":null,"publicUsername":"machinerisms","avatarFilePath":"media/auth/avatars/d8/d8e9e665-aadd-4114-b081-11878fe28f07.jpg","badgesProfileLevel":{"profileLevel":8,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"1397046","filePath":"media/comment_images/3a/7885bd-8972-43b3-8f01-1de6e15956a2/img_1572.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"This print is gorgeous! I did it with Bambu blue gradient PLA and it came out beautifully","rating":5,"likesCount":0,"liked":null,"membershipAgeMonths":0,"membershipTier":null,"__typename":"PrintCommentType","model":{"id":"507275","slug":"articulated-whale-shark","name":"Articulated Whale Shark","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"4.9576008273","myRating":null,"ratingCount":967,"description":"

Dimensions (LxWxH)

186,9 x 66,7 x 33,8 mm (100% scale)

Basic information

The model is divided into 7 movable articulated segments, which grant the model with lifelike movement, and a high range of flexibility.

The model was designed to print as easily, and as reliably, as possible. No post processing, or tweaking needed. Just download, slice, print, and have fun!

Files information

You can choose from total of 3 files: .3mf (recommended); .stl (for slicer compatibility issues); and .gcode (for MK3S+, pre-sliced, ready to print)

This design is a part of the Articulated Sea Life collection by me. You can check out other designs from this collection here.

The Articulated Sea Life collection is a live project, and I'm continuously adding new designs, anytime I get an interesting idea, or a suggestion. The designs are also updated, if any changes or tweaks have to be made. Feedback, suggestions and ideas are welcome!

Material

PLA

Layer height

\u22640,2 mm

>0,2 mm + variable layer height

Infill

>15%

Support

None. The model was designed not to require any support material.

Scaling

Possible, however, If your machine isn't calibrated properly, has accuracy problems, or if you're dealing with filament issues, downscaling isn't recommended. When downscaling, proceed cautiously, and don't go too small, unless you want to risk mobility related issues. When printing a downscaled version, adjust layer height in proportion to the scale.

But be careful, if you're printing a downscaled version, the tail fin is fairly narrow, and it's sticking out quite a lot, so it might not have enough time to cool down while printing. To eliminate this issue, print at least two instances of the model, or add a simple tower with the same height as the model. This will force the nozzle to move away from the fin, and allow it to cool down properly.

Orientation

Default, laid flat on the belly

Adhesion aid

Not necessary, contact area with the buildplate should be sufficient. If your print surface suffers from poor adhesion, consider using some adhesive spray, or other kind of adhesion booster. Using brim is possible, but not recommended, as it would be difficult, and inconvenient to remove afterwards.

Other settings/ideas

To make the model look even cooler, add a filament change into your gcode, and print the belly in a different color.

In this section, you can find a list of all updates and fixes, which were introduced to the model along the way. Each update will be explained thoroughly, so that you know, which issue was every specific update adressing. If you're having any problems with the model, you can check here, if a new, revised version of the model, has already been released in a response to your problem, or not.

If you run into any issues with the model, please pay a visit to a section of known issues, which can be found just below the Updates and fixes. If you won't find your specific problem in there, don't hesitate to contact me via dm.

7/2/2023 - Added an .stl version of the model, to solve compatibility issues with some slicers, which don't offer .3mf files support (yet). Both, the .3mf and .stl versions are identical, but the .3mf version is more storage efficient, and carries additional useful data for your slicer, so if your software of choice supports both file formats, go for the .3mf version. To make the files easily distinquishable, and to help to avoid confusion, the .stl version is placed in a separate folder named \u201cstl version\u201d. This update was released just to deal with .3mf file slicer compatibility issues, and it doesn't introduce any changes to the model itself.

11/30/2024 - Fixed a non-functioning link in the model description

There currently aren't any known issues/work in progress. If you run into any, please contact me via dm.

My work is free for personal, non commercial use. If you want to sell, or monetize my models in any other way, please visit my Patreon for more licensing options.

","category":{"id":"36","path":[{"id":"30","name":"Toys & Games","nameEn":"Toys & Games","description":"Idle hands are the devil's playgrou\u00adnd. Make yourself and your kids busy with some cool 3D printed games. Print items for both indoor and outdoor play.","__typename":"CategoryType"},{"id":"36","name":"Action Figures & Statues","nameEn":"Action Figures & Statues","description":"Discover supernatural powers and print all your favourite heroes and iconic characters in 3D. Pokemon models, Baby Yoda, little Jo, Groot, and many others.","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2024-11-30T09:31:45.036105+00:00","firstPublish":"2023-06-17T16:05:29.333908+00:00","datePublished":"2024-11-30T09:31:45.016714+00:00","dateCreatedThingiverse":null,"nsfw":false,"aiGenerated":false,"summary":"Print in place, articulated happy Whale shark","likesCount":14784,"makesCount":1259,"liked":null,"printDuration":"2.40","numPieces":1,"weight":"22.00","nozzleDiameters":["0.40"],"usedMaterial":null,"layerHeights":["0.20"],"mmu":false,"materials":[{"id":"1","name":"PLA","__typename":"MaterialTypeType"}],"dateFeatured":"2024-09-09T07:30:15.799737+00:00","downloadCount":84769,"displayCount":182684,"filesCount":3,"privateCollectionsCount":9276,"publicCollectionsCount":6420,"pdfFilePath":"media/prints/507275/pdfs/507275-articulated-whale-shark-e2681caa-f9bc-4db9-9e0b-309987cfd12a.pdf","commentCount":1391,"userGcodeCount":2,"remixCount":0,"canBeRated":false,"addMakePermission":null,"printer":{"id":"1","name":"Prusa MK3/S/S+","__typename":"PrinterTypeType"},"image":{"id":"1961936","filePath":"media/prints/507275/images/4115180_51a9d2b3-27fe-4864-ad76-9424a737da32/whaleshark2.png","rotation":0,"imageHash":"I+YEHYppQ3dnh4kwuaqrmVlWkGUF","imageWidth":2000,"imageHeight":1500,"__typename":"PrintImageType"},"images":[{"id":"1961936","filePath":"media/prints/507275/images/4115180_51a9d2b3-27fe-4864-ad76-9424a737da32/whaleshark2.png","rotation":0,"imageHash":"I+YEHYppQ3dnh4kwuaqrmVlWkGUF","imageWidth":2000,"imageHeight":1500,"__typename":"PrintImageType"},{"id":"1961955","filePath":"media/prints/507275/images/4115226_6ec9754d-9c64-4941-b5fd-9af32cbb2e94/whaleshark3.png","rotation":0,"imageHash":"o8UEHYx6VnaId4dAmHmXnGqIoIYI","imageWidth":2000,"imageHeight":1500,"__typename":"PrintImageType"}],"tags":[{"name":"animal","id":"398","__typename":"TagType"},{"name":"sea","id":"949","__typename":"TagType"},{"name":"articulated","id":"1939","__typename":"TagType"},{"name":"flexible","id":"1944","__typename":"TagType"},{"name":"fish","id":"3057","__typename":"TagType"},{"name":"shark","id":"5543","__typename":"TagType"},{"name":"whale","id":"9519","__typename":"TagType"},{"name":"sealife","id":"11156","__typename":"TagType"}],"thingiverseLink":null,"filesType":"GCODE","previewFile":{"id":"2214742","filePreviewPath":"media/prints/507275/stls/4193707_50d5ed30-a393-4510-974e-0cf672eb2d23/articulatedwhaleshark_preview.png","__typename":"STLType"},"license":{"id":"6","disallowRemixing":true,"__typename":"LicenseType"},"remixParents":[],"remixDescription":null,"__typename":"PrintType","user":{"id":"289531","handle":"JD3D","verified":false,"dateVerified":null,"publicUsername":"Jopek Design","avatarFilePath":"media/auth/avatars/1c/1cd8ea81-a2af-41f9-8bdd-a8109fbf8b3f.jpg","badgesProfileLevel":{"profileLevel":15,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isFollowedByMe":false,"canBeFollowed":true,"designer":true}},"unavailableModel":null,"replies":[]}}}
