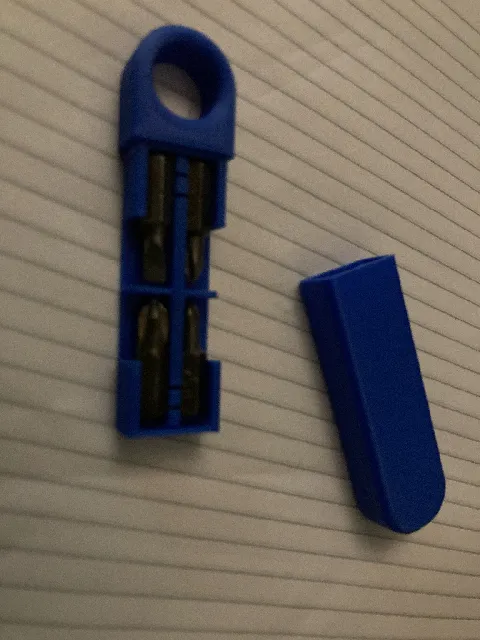

{"data":{"make":{"id":"1538210","created":"2024-02-11T12:27:59.851800+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"281","name":"Artillery Sidewinder X1","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"246545","handle":"GriffLawrence_246545","verified":false,"dateVerified":null,"publicUsername":"GriffLawrence","avatarFilePath":"media/auth/avatars/f4/f4dbcd0b-d41a-4127-bba7-73d066e2110e.jpg","badgesProfileLevel":{"profileLevel":8,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"1371334","filePath":"media/comment_images/e4/480ee1-50af-45c3-9e15-c245410ba8ed/image0.jpeg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"Printed it with one side flat for ease of printing, works fantastic! I printed 2 so I can have every bit I need","rating":5,"likesCount":1,"liked":null,"membershipAgeMonths":null,"membershipTier":null,"__typename":"PrintCommentType","model":{"id":"271645","slug":"pocket-screwdriver-kit","name":"Pocket Screwdriver Kit","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"4.7835820896","myRating":null,"ratingCount":134,"description":"

Note: Update available here: Pocket Screwdriver Kit v2

I picked up a pocket screwdriver kit similar to this at a tradeshow many years ago, and I wanted another one so here it is. The bits fit in snugly and the cover snaps closed.

No supports required (but you might need a brim for the outer case). Print in three pieces then glue the insert and handle together using the alignment nubs. You will also want to glue a tiny magnet in end of the case to hold the bit in place when using the screwdriver.

Disc magnet for the tip should be no larger than 6mm x 1mm \u2013 thicker magnets will hold the bits too strong. E.g., https://amzn.com/dp/B01NAL9I5H/

Any straight \u00bc\" / 6mm bits should work, up to ~ 1\" / 25mm in length. E.g., https://amzn.com/dp/B09T9H1DFC/

Update:

Added extra-tolerance-handle.3mf with an extra 0.2 mm tolerance to glue the bit insert to the handle a little easier. You may want to start with this one as opposed to the handle piece in the original file.
