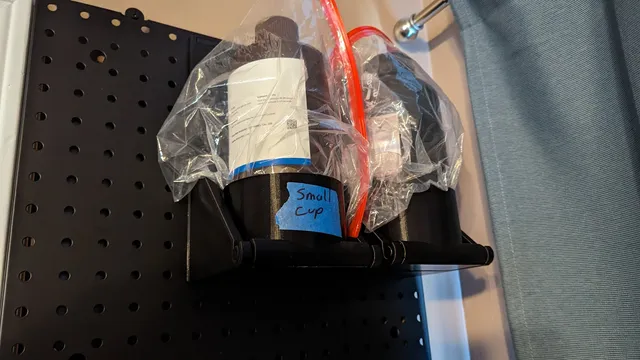

{"data":{"make":{"id":"1535513","created":"2024-02-10T15:58:22.127751+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"14","name":"Prusa MK3S/+ & MMU2S/3","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"79811","handle":"MattGlitchTech","verified":false,"dateVerified":null,"publicUsername":"Matt - GlitchTech","avatarFilePath":"media/auth/avatars/dc/dc858ef4-2125-40a5-94da-91683bde926d.jpg","badgesProfileLevel":{"profileLevel":14,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"1368800","filePath":"media/comment_images/cc/77ac25-45d4-4461-9ebe-154a642b3450/pxl_20240210_155639605mp.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"Works perfectly. Easy to print as well, assuming your printer is behaving (which mine was not last night).","rating":5,"likesCount":0,"liked":null,"membershipAgeMonths":null,"membershipTier":null,"__typename":"PrintCommentType","model":{"id":"62070","slug":"modular-pegboard-system-resin-bottle-storage-elego","name":"Modular Pegboard System - Resin Bottle Storage (Elegoo/Anycubic 1Kg)","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"4.7500000000","myRating":null,"ratingCount":4,"description":"

I recently purchased an Elegoo Mars 2 Pro and an Elegoo Saturn and I needed somewhere to store my resin so I expanded upon my Modular Pegboard System and made a tilting storage mechanism.

The tilt allows you store the bottles more densely as you can insert or remove them without interfering with anything mounted above it on the pegboard.

There are 6 parts to this:

Resin Bottle Cup
Front half of the sled that the cup attaches to
Back half of the sled that connects to the pegboard mount
The pegboard mount and its two pegs

The pegboard mount and its two pegs You will need 4-6 M3x10 screws to attach the front and back halves of the sled to each other.

F3D and STEP source files are included for those who would like to to modify this to suite their needs.

04/02/2021 EDIT: A bottle of Translucent Elegoo resin that I just got is slightly too big so I expanded the inner diameter of the resin cup to compensate and attached the new files. The relevant stl and source files are named \"Slightly Larger Resin Cup\"

Notes:

The parts should be printable in their provided orientations. Supports are required for the cup and optional on the front part of the sled. The rest of the files should not require any supports.
