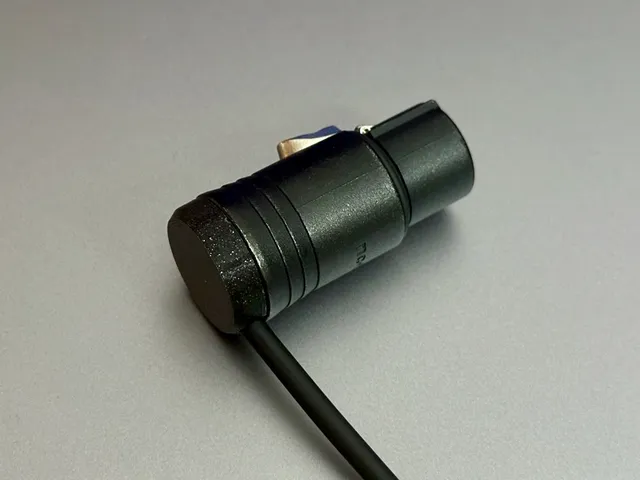

{"data":{"make":{"id":"1519802","created":"2024-02-04T22:56:51.871619+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"1","name":"Prusa MK3/S/S+","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"203479","handle":"Korni_203479","verified":false,"dateVerified":null,"publicUsername":"Korni","avatarFilePath":"","badgesProfileLevel":{"profileLevel":11,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"1353636","filePath":"media/comment_images/2c/56b0e0-5a10-4991-8a6e-8e7043983ffc/img_0751-2.jpeg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"Nice design to shrink the Neutrik XLR to the absolute bare minimum and blending into the overall design of the connector. \n\nThe fit of the 4mm cap was a bit loose for my Cordial CSP1 Patch cable but it might work as a suitable strain relief after adding heat shrink tubing near the connector. \nAt first I intended to use even thinner SC Cicada Cable, but it couldn't be secured without further modifications to the cap. I might look back to this later.\nPrinting the fine thread is demanding and I had quite a bit of stringing around the triangular teeth on the Cap and threaded insert, but they fit well after a bit of post processing.","rating":5,"likesCount":0,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"510102","ratingAvg":"5.0000000000","ratingCount":3,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType","model":{"eligibleForNomination":false,"id":"510102","slug":"low-profile-cap-neutrik-nc3mxx","name":"Low Profile cap Neutrik NC3MXX","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"5.0000000000","myRating":null,"ratingCount":3,"description":"

Neutrik NC3MXX cable mod. Turning a normal plug into a 90\u00b0 angled low profile plug that you can print in your own color for match and marking.

Features :
- 4mm and 6mm cable support
- Supports both male and female plugs, and plugs with push-button without blocking the button mechanic.
- Strong and tight (no single thread rotation engagement or lose caps)
- 360\u00b0 lockable cable exit orientation, able to align multiple cables to exit in same direction.

How to print :
- No support needed.
- Print cap using concentric bottom layer gives a nice pattern ;)

How to use :
- Make sure you add the \u201cfork\u201d and \u201cthread insert\u201d to the able before soldering the cable to the plug.
- push in the fork together with the plug into the casing.
- Screw in the insert until flush with casing, it should go in smooth by hand, else use a screwdriver on the internal teeth.
- Align cable to the direction/orientation you want it to exit.
- Counter clock wise rotate the cable 90\u00b0 away from your wanted orientation.
- Then push in the \u201ccap\u201d, and rotate tight clock-wise until nice and tight and wanted precise orientation is achieved :).

Neutrik NC3MXX cable mod. Turning a normal plug into a 90\u00b0 angled low profile plug that you can print in your own color for match and marking.

I wanted to get more desk space by removing (tugging away) the XLR 6mm cables. And I wanted to isolate vibrations to the microphone more by switching to a 4mm cable that also exits out of the side to make a nice loop before contacting to the mic stand.

(coming) Update :
Currently on Holliday, but will upload more pictures of final result when I'm back :)

","category":{"id":"25","path":[{"id":"21","name":"Gadgets","nameEn":"Gadgets","description":"Everyone loves smart gadgets. Use 3D printing to make amazing items for audio, photo & video, computers, and phones. Top models are ready to download for free.","__typename":"CategoryType"},{"id":"25","name":"Audio","nameEn":"Audio","description":"Tune-up your home audio system and enjoy music at full blast. Headphone stands are just the start. Download free 3D prints for sound engineers or music lovers.","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2023-06-21T12:31:57.781619+00:00","firstPublish":"2023-06-21T12:31:57.760323+00:00","datePublished":"2023-06-21T12:31:57.762464+00:00","dateCreatedThingiverse":null,"nsfw":false,"aiGenerated":false,"politicalContent":false,"summary":"Set of parts to turn Neutrik NC3MMX connectors in low-profile 90\u00b0 angled versions with custom colors.","likesCount":73,"makesCount":3,"liked":null,"printDuration":null,"numPieces":0,"weight":null,"nozzleDiameters":null,"usedMaterial":null,"layerHeights":null,"mmu":false,"materials":[],"dateFeatured":null,"downloadCount":545,"displayCount":2608,"filesCount":4,"privateCollectionsCount":61,"publicCollectionsCount":40,"pdfFilePath":"media/prints/510102/pdfs/510102-low-profile-cap-neutrik-nc3mxx-3c981191-d9f2-488b-8afe-3545a5773b84.pdf","commentCount":7,"userGcodeCount":0,"remixCount":1,"canBeRated":false,"addMakePermission":null,"printer":null,"image":{"id":"1970889","filePath":"media/prints/510102/images/4134546_3a21a26d-2dcc-4568-93df-6a485e42d8b1/20230515_161819.jpg","rotation":0,"imageHash":"VQgGE4LAl2eBmEd5UIQFmYY=","imageWidth":4032,"imageHeight":1960,"__typename":"PrintImageType"},"images":[{"id":"1970889","filePath":"media/prints/510102/images/4134546_3a21a26d-2dcc-4568-93df-6a485e42d8b1/20230515_161819.jpg","rotation":0,"imageHash":"VQgGE4LAl2eBmEd5UIQFmYY=","imageWidth":4032,"imageHeight":1960,"__typename":"PrintImageType"},{"id":"1970887","filePath":"media/prints/510102/images/4134541_38bcdb0c-d881-4e05-b2cb-98601ac7db2f/2023-06-21-13_09_41-exploded-view.png","rotation":0,"imageHash":"D/gFDgQJpWiXaFeneIp2d4hoOI9x+ag=","imageWidth":1512,"imageHeight":1745,"__typename":"PrintImageType"},{"id":"1970888","filePath":"media/prints/510102/images/4134547_8df6994f-85b3-4f50-a7bc-f63c75636ec3/2023-06-21-13_05_31-sliced.png","rotation":0,"imageHash":"EQgGDoYJRrd4iWSGeYhoZoiHZ49z94g=","imageWidth":1731,"imageHeight":1598,"__typename":"PrintImageType"}],"imagesCount":3,"tags":[{"name":"xlr","id":"2327","__typename":"TagType"},{"name":"audio","id":"2441","__typename":"TagType"},{"name":"lowprofile","id":"5828","__typename":"TagType"},{"name":"angled","id":"7685","__typename":"TagType"},{"name":"90degree","id":"9094","__typename":"TagType"},{"name":"xlrplug","id":"28203","__typename":"TagType"},{"name":"neutrik","id":"34293","__typename":"TagType"},{"name":"audiocable","id":"63541","__typename":"TagType"}],"thingiverseLink":null,"filesType":null,"previewFile":{"id":"2182490","filePreviewPath":"media/prints/510102/stls/4134544_cb16299f-b4e3-4d74-8a2f-d872280158ea/low-profile-cap-fork-insert-neutrik-nc3mxx_preview.png","__typename":"STLType"},"license":{"id":"2","disallowRemixing":false,"__typename":"LicenseType"},"remixParents":[],"remixDescription":null,"easyprintProjects":[],"__typename":"PrintType","user":{"id":"26235","handle":"AcEKrystal","verified":false,"dateVerified":null,"publicUsername":"AcE Krystal","avatarFilePath":"media/auth/avatars/95/95ad8b06-69a4-42d5-b7f9-cd27fbe7e978.jpg","badgesProfileLevel":{"profileLevel":18,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isFollowedByMe":false,"canBeFollowed":true,"designer":false}},"unavailableModel":null,"replies":[{"id":"1520009","created":"2024-02-05T00:28:13.826918+00:00","edited":null,"deleted":null,"isMake":false,"printer":null,"parent":{"id":"1519802","__typename":"PrintCommentType"},"author":{"id":"26235","handle":"AcEKrystal","verified":false,"dateVerified":null,"publicUsername":"AcE Krystal","avatarFilePath":"media/auth/avatars/95/95ad8b06-69a4-42d5-b7f9-cd27fbe7e978.jpg","badgesProfileLevel":{"profileLevel":18,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[],"mentions":[{"id":"203479","handle":"Korni_203479","__typename":"MentionListAssociationType"}],"text":"##user-203479## Thanks for ya feedback =^.^=, looks nice!\nWhat diameter smaller cable should I make an extra cap for?","rating":null,"likesCount":0,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"510102","ratingAvg":"5.0000000000","ratingCount":3,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType"}]}}}
