No need to explain, all is in the title.

Based on Voron Stealthburner for Bambu Lab X1C/X1 Hotend by MrTelip

Changelog :

Update 12/11/2023 :
- Too many versions ! attempt to simplify choice table
- Fix airflow for \u201cclone + std V6 nozzle\u201d

Update 02/11/2023 :
- Add version to use M3x16 SHCS instead of original EEL screws

Update 12/05/2023 :
- fix TH_holder clearance (Users reports not enough clearance , Thanks elpopo, LC49 )

Update 22/02/2023 :
- Add a version HE 2mm higher (for Ali clone with CHT nozzle. Suggestion of @Controllore)
Nota : This version suits for Ali clone hotend with \u201cStandard V6 Nozzle\u201d which makes the mount 2mm longer than Clone HE kit (47.5mm to 49.5mm)

Update 11/01/2023 :
- TH_holder revision 4 : Add chamfer to first layer

Update 08/01/2023 :

A user report problems with square nuts thicker than the DIN562, so I made a version for this.

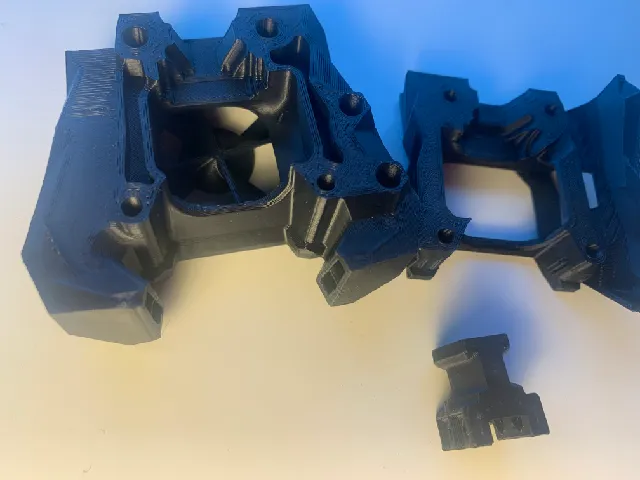

3 possibilities :

Nuts thickness	Screws	Hotend	Overall Hotend length	parts to print
<1.8 mm	BBL screws only	Original BBL Clone	~47.3 mm	[a]_SB_bambulab_TH_holder_r6.stl SB_bambulab_TH_front_r3.stl SB_bambulab_TH_rear_CW2_r3.stl
<2.4 mm	M3x16 SHCS	Original BBL Clone	~47.3 mm	[a]_SB_bambulab_TH_holder_r6.stl SB_bambulab_TH_front_clone.stl SB_bambulab_TH_rear_CW2_clone.stl
Clone + Std V6 nozzle (Bondtech CHT, V6 TC nozzle, ...)	~49.3 mm	[a]_SB_bambulab_TH_holder_r6_2mm.stl SB_bambulab_TH_front_clone_2mm.stl SB_bambulab_TH_rear_CW2_clone_2mm.stl

But Why ??

Bambulab toolhead is cheap, fast to heat up/down (40s from 25\u00b0C to 270\u00b0C), had great max flow. Exists in stainless steel ans hardened steel.

What is bad ?

The cables are pretty short.

This mod vs MrTelip version

Fix screw holes position
Revert toolhead (back/front) to optimize cable length
Add a cable path
Add coding in toolhead holder
TAP complient

Bill of Materials

Category	Qty	Description	Notes
Hardware	4	M3 Heatset Insert	Standard Voron spec 4.7 mm diameter inserts
Hardware	2	M3 nut	DIN562 (square)
Hardware	1	Bambulab Toolhead or Clone	Hotend kit
Hardware	2	Bambulab Toolhead screw or M3x16 SHCS
Hardware	1	Bambulab Heater or Clone
Hardware	1	Bambulab thermistor or Clone
Hardware	1	Bambulab sock or Clone
Hardware	2	M3 x 16 SHCS	Socket head cap screw
Hardware	2	Microfit 3.0 2 pins	depends on the way you plug the TH

Any questions ?

Contact me on Discord @fboc

Related model :

Bambulab Toolhead for Voron 0.2 mini Stealthburner
