ATX Open Frame PC Case Tabletop
Comments
@SebastianMons_314287 I'm not sure if your mainboard is Micro-ATX, to me it looks even smaller. Can you post the dimensions?
@SebastianMons_314287
Ahhh OK.
I will try, (next Days) to create a new "Middle" Part.
Maybe a little bigger to get also the third row for srews and a new shorter Bracket, but with a second holder, to keep more stable for bigger GFX Cards.

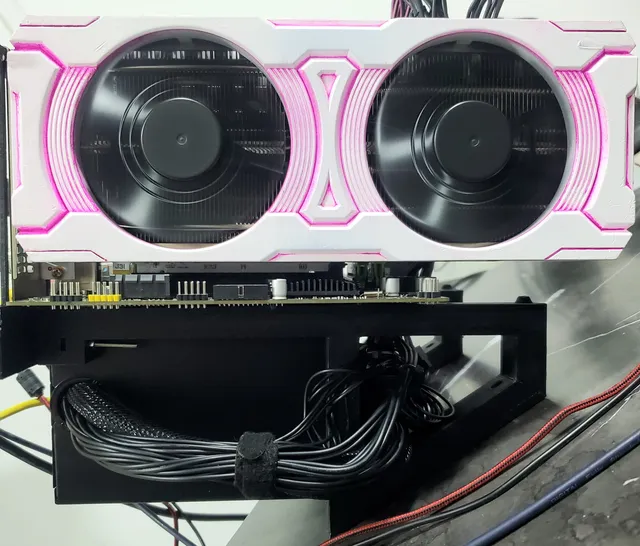

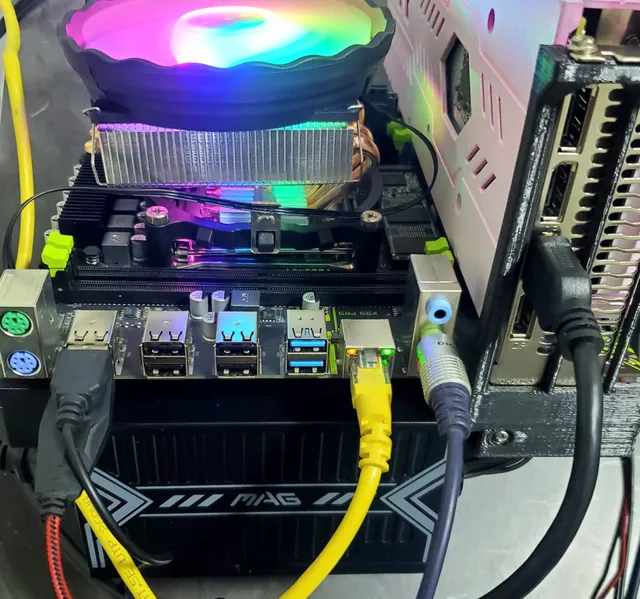

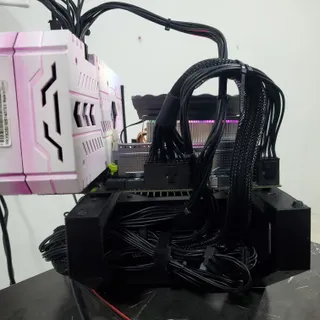

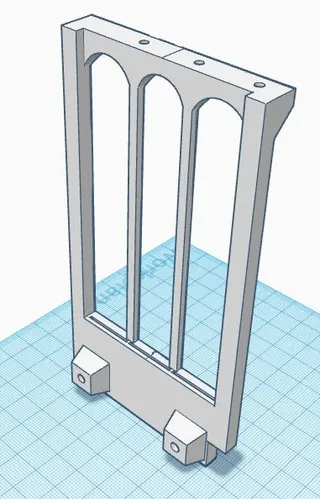

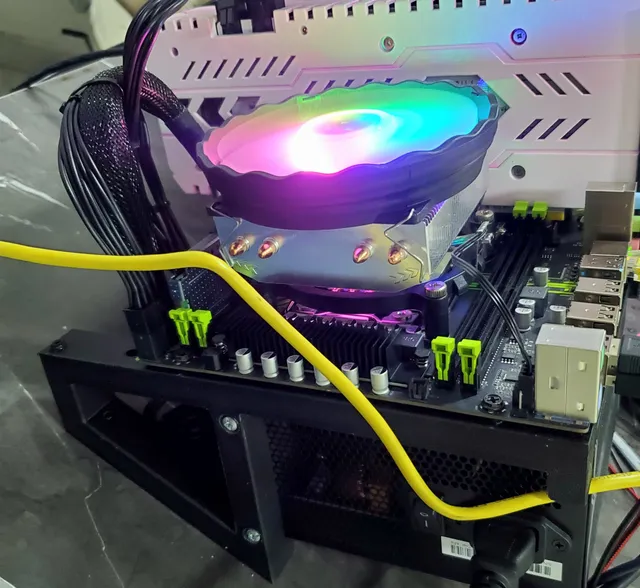

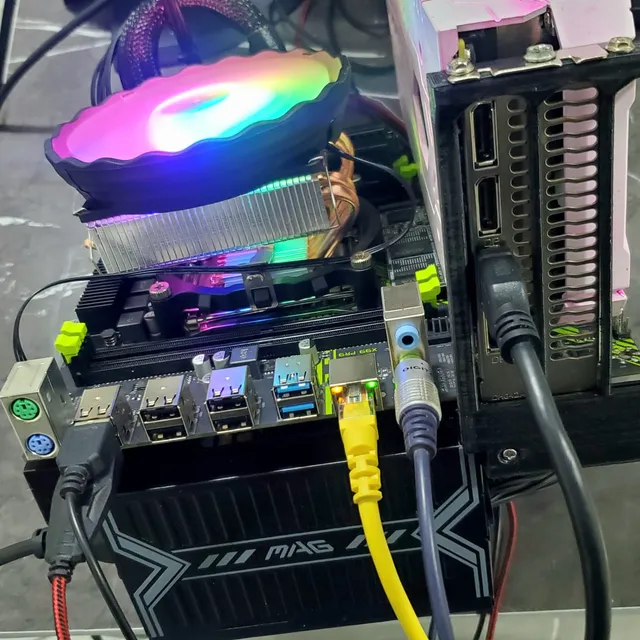

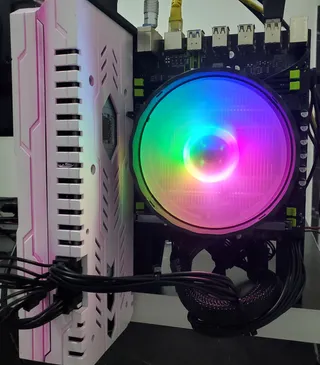

@Alexa3D_76105 Hi, thanks for your help my english is not the best. This is how I assembled, literally just cut the bracket, but I only have one screw for the PCI bracket and the GPU is too heavy so a single screw with 2 nuts works fine. I quickly modify the bracket using TINKERCAD but dont tested yet, I can use the "atx-board-left-v1" at this point an get the full assembly with the right, middle and left board arm much closer. I upload some pictures so you can unsderstand.
@SebastianMons_314287
Thank you for your MAKING Pictures.
If it is possible, you can send 1 or 2 more Pictures for the smaller Version of the PCI Bracket?
Maybe i can make a smaller Version from the Bracket for your MICRO ATX Version.

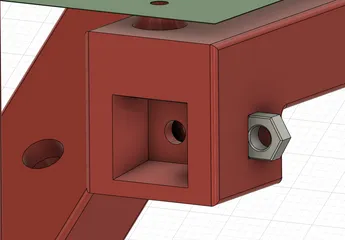

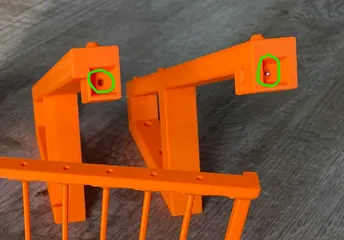

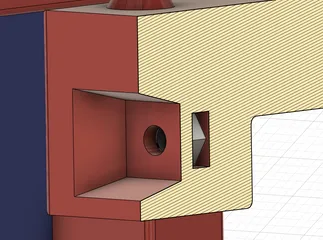

And i see something on your Pictures.
Inside the MIDDLE and RIGHT
I put these new Pictures also in the Description to Understand the Holes there.

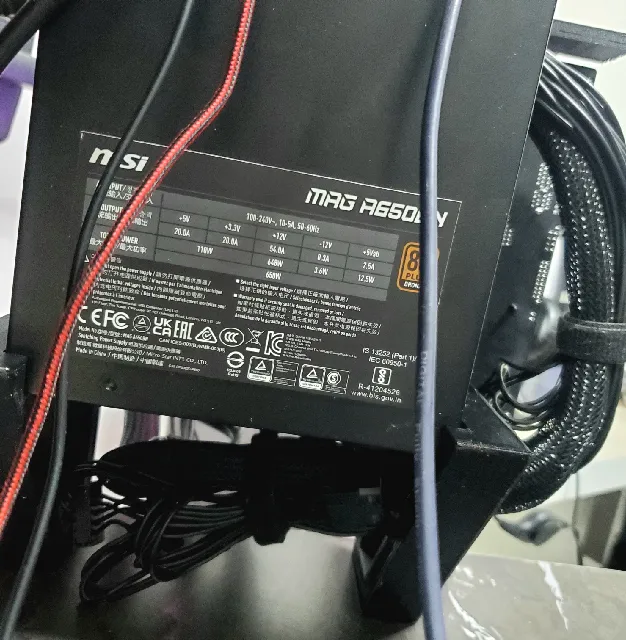

For a Micro-ATX build you don't need the "atx-board-left-v1" you just need the ones that support the PSU, and you only use 3 slots (I cut the rest) of the "support-bracket" I use a single through screw to attach the two parts.
