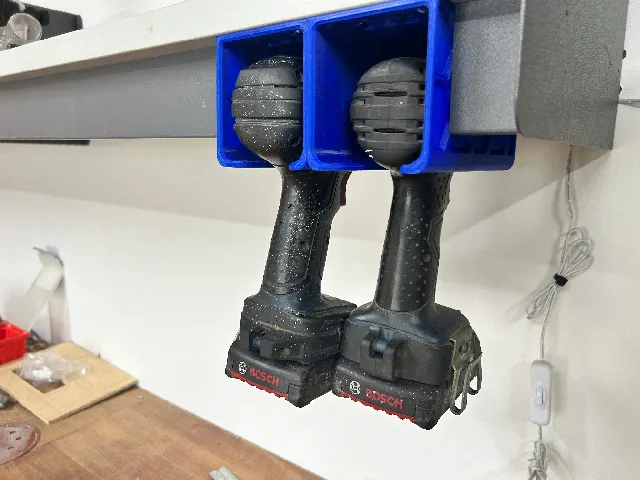

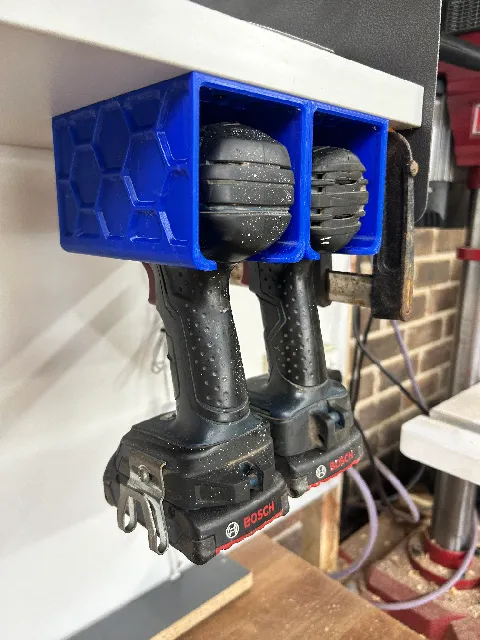

{"data":{"make":{"id":"1490175","created":"2024-01-27T01:24:43.110245+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"671","name":"Elegoo Neptune 4 Pro","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"1686627","handle":"StuartRoy_1686627","verified":false,"dateVerified":null,"publicUsername":"Stugen","avatarFilePath":"media/auth/avatars/25/25743bcd-adc2-466e-b4e7-9d34c510410b.jpg","badgesProfileLevel":{"profileLevel":10,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"1324244","filePath":"media/comment_images/0f/c09b47-5783-4394-a3bd-e3f3c079dcf4/img_0644.jpg","rotation":0,"__typename":"CommentImageType"},{"id":"1324243","filePath":"media/comment_images/bb/56219e-252e-46df-84dc-288a36e475ad/img_0643.jpg","rotation":0,"__typename":"CommentImageType"},{"id":"1324242","filePath":"media/comment_images/69/00e09b-2433-490a-a20d-78d1d56eb7d6/img_0646.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"Works great for my Bosch Drill and Impact Driver. Printed with Flashforge Blue PLA.\nVery quick to print compared to others, only 4 hours.","rating":5,"likesCount":0,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"499938","ratingAvg":"5.0000000000","ratingCount":8,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType","model":{"eligibleForNomination":false,"id":"499938","slug":"universal-cordless-drill-holder-ultralight-edition","name":"Universal Cordless Drill Holder - Ultralight Edition","authorship":"remix","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"5.0000000000","myRating":null,"ratingCount":8,"description":"

I want to start by giving respect where respect is due for the original model creators for giving me the inspiration to tinker and a place to start! Thanks kerngebiet and mnemic!

I designed a drill holder that uses a lot less material than other holder models and saves you valuable print time! See Print Time Comparison in Photos!

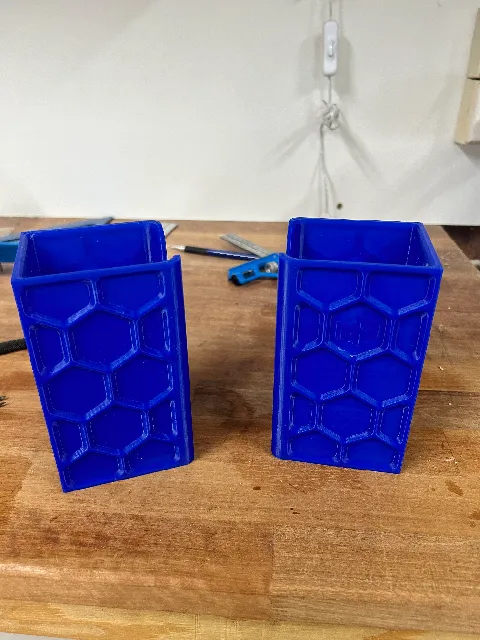

The Ultralight Edition incorporates hexagonal reliefs to reduce material used without increasing the number of non-printing moves, thus saving a you significant amount of time while still maintaining the strength!

Other versions of this drill holder incorporate very large hexagonal cut-outs, but they still require more filament than this model and in most cases, more time. These large cut-outs can also reduce rigidity/strength of your holder, while the hexagonal reliefs can offer a stronger, more rigid holder by eliminating unnecessary holes.

I reduced the number of screws required to mount the holder from 6 down to 3. I also brought the holes closer to the center of the part slightly to make it easier to access the screws when installing. The two front most holes are slotted so you can preset your front screws then slide the part on after to finish installation. The rear screw locks it in place. All screw holes are countersunk for a secure hold. the mounting area also has reliefs that greatly reduce material usage.

There is a 40mm version and a 35mm version available for download. I'm eager to see how you all like it! I'm looking forward to improving upon the design even more!

Recommended Settings:

0.6mm Nozzle

0.2mm Layer Height

3 Perimeters or More

PETG, PLA, ETC
