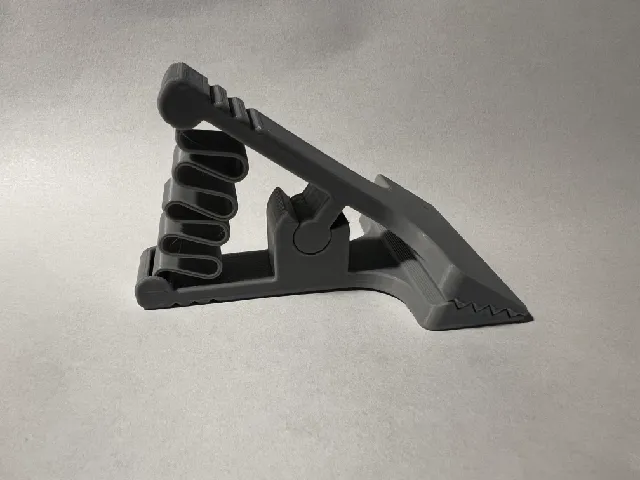

{"data":{"make":{"id":"1479118","created":"2024-01-23T02:50:23.863833+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"699","name":"Creality Ender 3 V3 SE","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"1661426","handle":"Manic803_1661426","verified":false,"dateVerified":null,"publicUsername":"Manic803","avatarFilePath":"","badgesProfileLevel":{"profileLevel":7,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"1313991","filePath":"media/comment_images/95/a3e733-c187-474a-bc52-0cff04a64120/img_7743.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"Finally made it work on the 3rd try mainly because I tried to snap them together instead of sliding them together.","rating":5,"likesCount":0,"liked":null,"membershipAgeMonths":null,"membershipTier":null,"__typename":"PrintCommentType","model":{"id":"237920","slug":"super-strong-bag-clip","name":"Super Strong Bag Clip","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"4.4444444444","myRating":null,"ratingCount":9,"description":"

This clip was inspired by \"Spring Clip Stronger\" by Blake Haas. Although it has several improvements:

It prints easily with no support
It snaps together without glue
Positively locks together (won't come undone during use)
Can be printed in any material

During development, I tried ABS, ASA, Tough PLA, and 2 brands of PLA. I felt the strongest was ABS, but got very good results with PolyLite ASA, CC3D PLA, and MatterHackers Tough PLA. The weakest was Solutech Clear PLA (seemed to shrink and not bounce back as well).

I printed with standard easy settings: 20% gyroid infill, 2 perimeters, no support.

To assemble:

Line the 2 halves up in the mostly closed position. You will see the inner half has a little pie shaped tab the will line up with the opening in the outer half.
When aligned, slide them together. The little tab rides in a slot the prevents the halves from sliding apart in normal opening.
Insert one end of the spring into the socket on one of the halves. Gently but firmly push it into the socket until it seats.
Then compress the spring until the other end snaps into its socket. If it doesn't go in all the way at first, try straightening the spring alignment and squeezing the clip open.

As always, my Fusion 360 design is included.

Update 7/13/2024

The best material for this is PETG.

","category":{"id":"4","path":[{"id":"3","name":"Household","nameEn":"Household","description":"Marvel at these impressive interior and exterior decors. Download print-in-place items, vases of various shapes, or geometrical lamps.","__typename":"CategoryType"},{"id":"4","name":"Kitchen","nameEn":"Kitchen","description":"Organize your kitchen with DIY crafts. Seal opened packs easily with bag clips. Print bottle opener or collapsible basket, coasters, and various holders.","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2024-07-13T21:50:04.608737+00:00","firstPublish":"2022-07-07T22:34:14.801752+00:00","datePublished":"2024-07-13T21:50:04.586830+00:00","dateCreatedThingiverse":null,"nsfw":false,"summary":"A strong functional bag clip that prints without support and snaps together.","likesCount":41,"makesCount":7,"liked":null,"printDuration":"1.79","numPieces":1,"weight":"19.00","nozzleDiameters":["0.40"],"usedMaterial":null,"layerHeights":["0.20"],"mmu":false,"materials":[{"id":"1","name":"PLA","__typename":"MaterialTypeType"}],"dateFeatured":null,"downloadCount":308,"displayCount":1244,"filesCount":6,"privateCollectionsCount":54,"publicCollectionsCount":49,"pdfFilePath":"media/prints/237920/pdfs/237920-super-strong-bag-clip-c5d0e844-ca81-459a-8e0d-d704b2dac888.pdf","commentCount":12,"userGcodeCount":0,"remixCount":0,"canBeRated":false,"printer":{"id":"1","name":"Prusa MK3/S/S+","__typename":"PrinterTypeType"},"image":{"id":"1055477","filePath":"media/prints/237920/images/2154063_dd262dfa-b410-469a-9046-13f7ea86cf06/dscn0640.jpg","rotation":0,"imageHash":"IzkGJoSomIeAd2ebZlZ2Z4eIgIoLqPk=","imageWidth":380,"imageHeight":336,"__typename":"PrintImageType"},"images":[{"id":"1055477","filePath":"media/prints/237920/images/2154063_dd262dfa-b410-469a-9046-13f7ea86cf06/dscn0640.jpg","rotation":0,"imageHash":"IzkGJoSomIeAd2ebZlZ2Z4eIgIoLqPk=","imageWidth":380,"imageHeight":336,"__typename":"PrintImageType"},{"id":"1055475","filePath":"media/prints/237920/images/2154061_6df7994b-7d7d-4cb3-afcb-6372c7df7a43/dscn0643.jpg","rotation":0,"imageHash":"IikGLYSflZVweZVclmdZhn9Zu5f1","imageWidth":448,"imageHeight":335,"__typename":"PrintImageType"},{"id":"1055478","filePath":"media/prints/237920/images/2154064_4b265bfd-312e-4a8a-a68f-e14ae33dbb8a/dscn0641.jpg","rotation":0,"imageHash":"4kkGJoSoy5igeGWsVjaGiJiHcJ0MyOg=","imageWidth":398,"imageHeight":336,"__typename":"PrintImageType"},{"id":"1055479","filePath":"media/prints/237920/images/2154065_c7317a93-e5b2-41c1-9335-45fca1602fc8/dscn0642.jpg","rotation":0,"imageHash":"YikGD4LLqIngOHZqpIl0qqlk+Em+1vYO","imageWidth":340,"imageHeight":336,"__typename":"PrintImageType"},{"id":"1055480","filePath":"media/prints/237920/images/2154066_6a19276a-3e10-4bc1-bc68-610f3e6376ed/dscn0647.jpg","rotation":0,"imageHash":"pTkKHoCbqHhvp4ecZReapXeISIgwXAQ=","imageWidth":415,"imageHeight":336,"__typename":"PrintImageType"},{"id":"1055482","filePath":"media/prints/237920/images/2154068_3c860253-0bb3-42d3-87af-09fb7c17d92a/dscn0644.jpg","rotation":0,"imageHash":"ZDkGFYCeh1fWV4h/hWWHczNLAMRl","imageWidth":529,"imageHeight":365,"__typename":"PrintImageType"},{"id":"1055483","filePath":"media/prints/237920/images/2154069_85e865c7-20c2-47ab-95bf-f2c01fe6a25e/dscn0646.jpg","rotation":0,"imageHash":"ZDkKHYBpi2iLeXdfloZ3h1dnIAQy","imageWidth":530,"imageHeight":410,"__typename":"PrintImageType"},{"id":"1055486","filePath":"media/prints/237920/images/2154072_f2f4c348-9e41-4588-999f-903910be0589/dscn0645.jpg","rotation":0,"imageHash":"3TkKHYCVmXePdod4eHd5Z0iIUP36","imageWidth":494,"imageHeight":359,"__typename":"PrintImageType"},{"id":"1055484","filePath":"media/prints/237920/images/2154070_f8edd2f8-a912-454b-b8d0-5a8614384980/dscn0649.jpg","rotation":0,"imageHash":"5BgGJYLleFZ/d3d9k1iIl+qGv133","imageWidth":576,"imageHeight":432,"__typename":"PrintImageType"},{"id":"1055487","filePath":"media/prints/237920/images/2154073_4dbb2b81-3bd7-4378-b034-02d9d063e33a/clip-b-v5.jpg","rotation":0,"imageHash":"PAgGDoLWinV4h4mPZHaYSIh3CofhcAg=","imageWidth":427,"imageHeight":336,"__typename":"PrintImageType"}],"tags":[{"name":"clip","id":"339","__typename":"TagType"},{"name":"spring","id":"846","__typename":"TagType"},{"name":"fusion360","id":"1018","__typename":"TagType"},{"name":"bagclip","id":"3624","__typename":"TagType"},{"name":"strong","id":"10224","__typename":"TagType"}],"thingiverseLink":null,"filesType":"GCODE","previewFile":{"id":"1000904","filePreviewPath":"media/prints/237920/stls/2154256_36cd73a7-8ff6-46de-b1d2-68cc6a031163/innerhalf-v5_preview.png","__typename":"STLType"},"license":{"id":"4","disallowRemixing":false,"__typename":"LicenseType"},"remixParents":[],"remixDescription":null,"__typename":"PrintType","user":{"id":"15113","handle":"SteveS42","verified":false,"dateVerified":null,"publicUsername":"SteveS42","avatarFilePath":"media/auth/avatars/b4/b4cb1396-41dc-4d04-bcec-b8c50a0a7cc9.jpg","badgesProfileLevel":{"profileLevel":23,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isFollowedByMe":false,"canBeFollowed":true,"designer":false}},"unavailableModel":null,"replies":[]}}}
