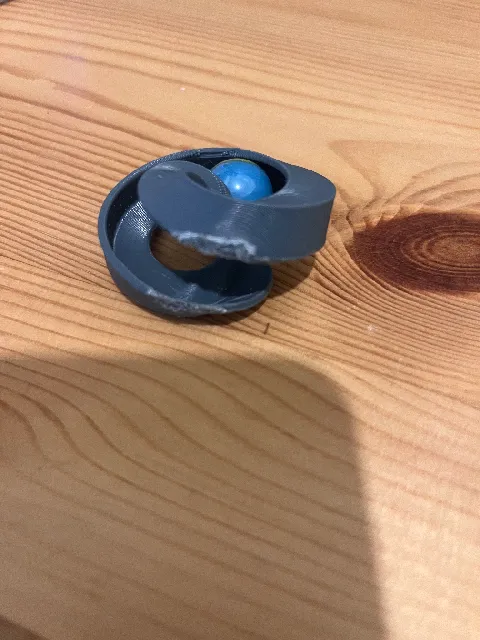

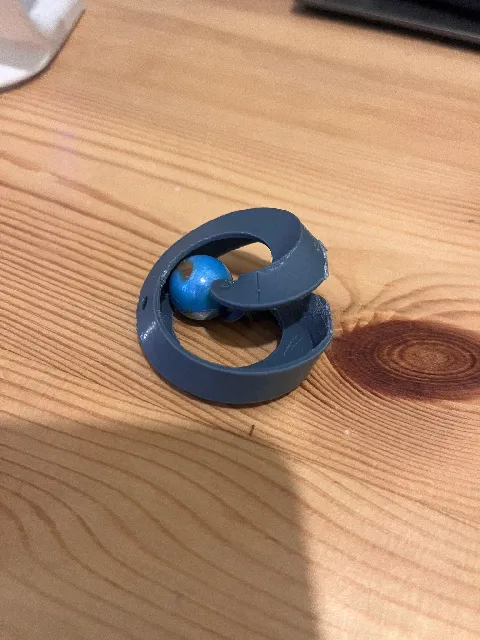

{"data":{"make":{"id":"1477318","created":"2024-01-22T15:09:15.220867+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"547","name":"Creality Ender 3 S1 Pro","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"1166646","handle":"YB_1166646","verified":false,"dateVerified":null,"publicUsername":"YB","avatarFilePath":"media/auth/4f292678-b038-4d9b-a09b-beb9306fbfcc.png","badgesProfileLevel":{"profileLevel":10,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"1312329","filePath":"media/comment_images/0c/76ca13-a0b2-4bdc-9f28-867ec3791797/img_1463_copy.jpg","rotation":0,"__typename":"CommentImageType"},{"id":"1312328","filePath":"media/comment_images/08/ead82a-f2ba-4ef8-8128-bf77be460d15/img_1464.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"Came out pretty cool! Had to work filing down the pieces that came off the thick base added to the stl but other than that cool fideget!","rating":4,"likesCount":0,"liked":null,"membershipAgeMonths":null,"membershipTier":null,"__typename":"PrintCommentType","model":{"id":"86797","slug":"marble-track-keychain","name":"Marble Track Keychain","authorship":null,"club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"4.5714285714","myRating":null,"ratingCount":7,"description":"

Features:

beautiful keychain with interesting shape based on a Moebius ring
nice to watch the different parts join in mid-air during the print
illustrates that 3d prints can be combined with other objects
useful as everyone has some key laying around that can use a keychain
fun little gadget with the spinning marble
ideal to show-off your printer to a friend and let him/her keep the print as a gift

See the spinning marble in action:

I'm interested in seeing what creative combinations of marbles and filament colors you can come up with. So post a picture of your creation, if you print one.

Print instructions

I have put two versions for different marble sizes: 13 mm (white marble in pictures) and 16 mm (orange-red marble). I prefer the smaller version for use as a keychain. But since many marbles have a larger diameter, I included a bigger version also.

Optimized for 0.20mm SPEED profile (PLA)
Print upright with keyring hole at the top
Supports: For support enforcers only
Add a support enforcer box at the bottom to keep the print stable.
Vertical shells: 4 perimeters
Detect bridging parameters: On
Insert a \u201cPause Print\u201d g-code above point where two halves join to insert marble.

Small loops may occur near the top overhang. These can easily be removed with your finger nails:

NOTE: If you want scale the design to fit a different marble size, try to select a scaling factor that has as little overhang as possible on the layer before the bridge that joins the two halves together in the middle:
