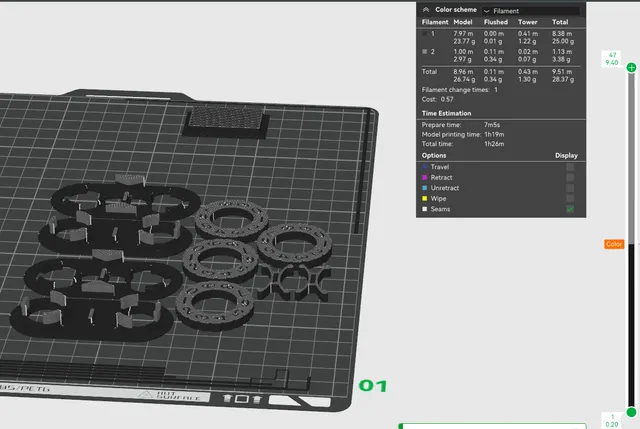

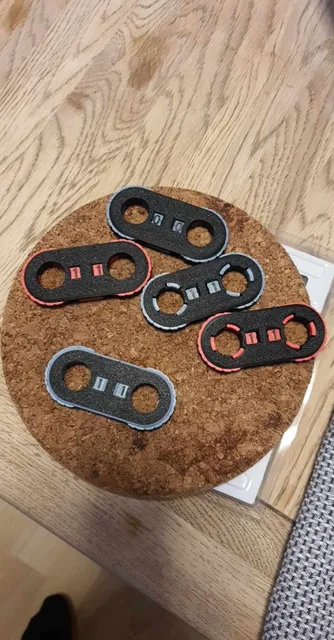

{"data":{"make":{"id":"1460884","created":"2024-01-17T09:13:02.490998+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"336","name":"Bambu Lab X1","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"807044","handle":"MadsMadsen_807044","verified":false,"dateVerified":null,"publicUsername":"Mads Madsen","avatarFilePath":"media/auth/b23b2207-4586-4729-a5a3-9c5f1f57902d.jpg","badgesProfileLevel":{"profileLevel":9,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"1296703","filePath":"media/comment_images/66/7adb4e-bcb6-4748-8806-3d29df263b1a/415749690_1635977537207846_5762857167353655649_n.jpg","rotation":0,"__typename":"CommentImageType"},{"id":"1296702","filePath":"media/comment_images/95/5a4d0e-6469-4e36-9572-fad6ee9fd09a/screenshot-2024-01-17-100938.png","rotation":0,"__typename":"CommentImageType"},{"id":"1296701","filePath":"media/comment_images/3a/e3f42d-a5a7-4d48-8528-000dcb9db327/20240117_101058.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"Super nice print. I do it with color change as shown in the screenshot. Makes it easy to print multiple in one print.","rating":null,"likesCount":2,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"703486","ratingAvg":"4.9213483146","ratingCount":178,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType","model":{"eligibleForNomination":false,"id":"703486","slug":"clicky-rotate-counter","name":"Clicky Rotate Counter","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"4.9213483146","myRating":null,"ratingCount":178,"description":"

This 2-digit counter boasts a stylish design! It features a wheel with a satisfying click. Each number comes to a stop with a click. and easy snap on assembly.

Assembly:

0. print a total of 5 parts: \u2018Case_M\u2019, \u2018Case_F\u2019, \u2018Spring\u2019, \u2018Wheel_A\u2019, and \u2018Wheel_B\u2019. Choose either the Standard or Reversed case, and select either Normal or Soft for the spring.

1. Put the wheel onto the 'case_M' part and check its rotation. If it feels stiff, use sandpaper or apply a small amount of grease to the inside of the wheel. (When you choose the reversed design case the wheel numbers must be placed downward.)

2. Put the spring onto the \u2018case_M\u2019 part.

3. Snap-on the opposite side of the case.

Notes:

Recommended layer height: 0.15 - 0.20mm, In my case with slicer, layer heights above 0.28mm, the spring, wheel clearance lost are do not function.
Do not use Matte PLA, Silk PLA, as they have weak layer adhesion and can break with snap-on.

Update:
[06/01/2024]
I have fine-tuned the chamfer of Case_M.stl, changed it to v1.21, and compatibility with other parts has been preserved.

[04/01/2024]
I have released a case with reversed front and back designs, as a result, the existing case has undergone minor adjustments and is now v1.2.

[03/01/2024]
v1.2 files - I adjusted the spring and wheel to enhance the clicking sensation and reduce play.

[02/01/2024]
Bugfix - In the initial release, the number \"6\" on \u201cWheel_A.stl\u201d was upside down. I have addressed this issue and released the corrected version, \u201cWheel_A_v1.1\u201d.

","category":{"id":"43","path":[{"id":"21","name":"Gadgets","nameEn":"Gadgets","description":"Everyone loves smart gadgets. Use 3D printing to make amazing items for audio, photo & video, computers, and phones. Top models are ready to download for free.","__typename":"CategoryType"},{"id":"43","name":"Other Gadgets","nameEn":"Other Gadgets","description":"Wide offer of 3D printable inventive and technological gadgets and gizmos are available for free download in STL. True techies never have enough of them.","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2024-01-22T02:46:04.414472+00:00","firstPublish":"2024-01-02T14:42:28.852607+00:00","datePublished":"2024-01-22T02:46:04.389550+00:00","dateCreatedThingiverse":null,"nsfw":false,"aiGenerated":false,"politicalContent":false,"summary":"This is a 2-digit counter that counts from 00 to 99","likesCount":2988,"makesCount":204,"liked":null,"printDuration":null,"numPieces":0,"weight":null,"nozzleDiameters":null,"usedMaterial":null,"layerHeights":null,"mmu":false,"materials":[],"dateFeatured":null,"downloadCount":8033,"displayCount":47455,"filesCount":9,"privateCollectionsCount":2050,"publicCollectionsCount":1349,"pdfFilePath":"media/prints/703486/pdfs/703486-clicky-rotate-counter-ebd5810f-bf02-4c52-abfd-4a9435ccd8de.pdf","commentCount":314,"userGcodeCount":1,"remixCount":16,"canBeRated":false,"addMakePermission":null,"printer":null,"image":{"id":"2597137","filePath":"media/prints/703486/images/5537963_89e7c0ba-f848-4ae8-b6ea-330ab562f399_f44c2272-d1f0-4bb6-accf-4645349db3e2/pxl_20240104_003424516portrait.jpg","rotation":0,"imageHash":"mAgOJYB/iHiJeIeGeId3eAeFUCEI","imageWidth":1269,"imageHeight":952,"__typename":"PrintImageType"},"images":[{"id":"2597137","filePath":"media/prints/703486/images/5537963_89e7c0ba-f848-4ae8-b6ea-330ab562f399_f44c2272-d1f0-4bb6-accf-4645349db3e2/pxl_20240104_003424516portrait.jpg","rotation":0,"imageHash":"mAgOJYB/iHiJeIeGeId3eAeFUCEI","imageWidth":1269,"imageHeight":952,"__typename":"PrintImageType"},{"id":"2597231","filePath":"media/prints/703486/images/5538194_f99a7b78-1cf4-46ef-85fa-c61c18312e51_b340b3c8-b334-472f-a73d-f83c49cc8f1b/pxl_20240104_001807761portraitoriginal.jpg","rotation":0,"imageHash":"3vcJBYB8aIhvhoeKh4Z4d82AzA7Z","imageWidth":1269,"imageHeight":952,"__typename":"PrintImageType"},{"id":"2597232","filePath":"media/prints/703486/images/5538200_fdd8c0f9-ccba-4dde-969a-dfdd79794594_9d48d88d-c0cc-4dd0-91f1-f6ecf920d126/pxl_20240104_003715293mp.jpg","rotation":0,"imageHash":"WggOFYBvmImcd3eId2eIiAeKs3BZ","imageWidth":1269,"imageHeight":952,"__typename":"PrintImageType"},{"id":"2593008","filePath":"media/prints/703486/images/5528361_db1fc761-20de-473a-b9f8-e00ddd3f30ff_49064f7f-ca9f-48b1-93f5-355609c3e7eb/pxl_20240103_055111412portrait.jpg","rotation":0,"imageHash":"2wgOHYKPmnh4h4eGd2iIhgFtAZVH","imageWidth":1140,"imageHeight":855,"__typename":"PrintImageType"},{"id":"2597136","filePath":"media/prints/703486/images/5537965_b3208344-5482-4189-8ae5-e37a7e109a2c_01d33f8e-7cc4-4fbc-b0ce-caa7aeff51ec/pxl_20240104_004134778portraitoriginal.jpg","rotation":0,"imageHash":"WPgFHYA4aHZfdohEiXiHlyp1oAQI","imageWidth":1269,"imageHeight":952,"__typename":"PrintImageType"},{"id":"2589510","filePath":"media/prints/703486/images/5520852_de3851a2-b357-4f86-96cf-b557e6a9cc9e_91239bfd-0467-46e3-895a-c2f193734447/counter.jpg","rotation":0,"imageHash":"LggOBwD3mKdrl4edZVd3yGeXiGApB5YD","imageWidth":720,"imageHeight":720,"__typename":"PrintImageType"}],"imagesCount":6,"tags":[{"name":"fidget","id":"830","__typename":"TagType"},{"name":"counter","id":"2012","__typename":"TagType"},{"name":"tracker","id":"3970","__typename":"TagType"},{"name":"clicker","id":"28781","__typename":"TagType"}],"thingiverseLink":null,"filesType":null,"previewFile":{"id":"2987218","filePreviewPath":"media/prints/703486/stls/5564316_ac473e1e-7a06-4b0b-a203-d217d31a7a02_47a71504-a536-430f-8ad3-36a349357771/case_m_v121_preview.png","__typename":"STLType"},"license":{"id":"2","disallowRemixing":false,"__typename":"LicenseType"},"remixParents":[],"remixDescription":null,"__typename":"PrintType","user":{"id":"174466","handle":"BaGooN","verified":false,"dateVerified":null,"publicUsername":"BaGooN","avatarFilePath":"media/auth/avatars/ac/ac7488a6-8d60-4edc-8432-0b095267f1ad.jpg","badgesProfileLevel":{"profileLevel":29,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isFollowedByMe":false,"canBeFollowed":true,"designer":false}},"unavailableModel":null,"replies":[{"id":"1464042","created":"2024-01-18T11:33:32.837808+00:00","edited":null,"deleted":null,"isMake":false,"printer":null,"parent":{"id":"1460884","__typename":"PrintCommentType"},"author":{"id":"174466","handle":"BaGooN","verified":false,"dateVerified":null,"publicUsername":"BaGooN","avatarFilePath":"media/auth/avatars/ac/ac7488a6-8d60-4edc-8432-0b095267f1ad.jpg","badgesProfileLevel":{"profileLevel":29,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[],"mentions":[{"id":"807044","handle":"MadsMadsen_807044","__typename":"MentionListAssociationType"}],"text":"##user-807044## Thank you for posting these wonderful prints \u2764","rating":null,"likesCount":1,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"703486","ratingAvg":"4.9213483146","ratingCount":178,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType"},{"id":"1587870","created":"2024-02-28T10:05:16.350790+00:00","edited":null,"deleted":null,"isMake":false,"printer":null,"parent":{"id":"1460884","__typename":"PrintCommentType"},"author":{"id":"1751915","handle":"BogdanG_1751915","verified":false,"dateVerified":null,"publicUsername":"Bogdan G.","avatarFilePath":"media/auth/ab660019-2a2d-4c28-aab7-550d18e9c9c3.png","badgesProfileLevel":{"profileLevel":0,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[],"mentions":[{"id":"807044","handle":"MadsMadsen_807044","__typename":"MentionListAssociationType"}],"text":"##user-807044## Have you you printed the 2 different colors black/orange, black/blue in one go? Acc. to your slicer you have just one color change, so I am curios if multiple color schemes can be done","rating":null,"likesCount":0,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"703486","ratingAvg":"4.9213483146","ratingCount":178,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType"}]}}}
