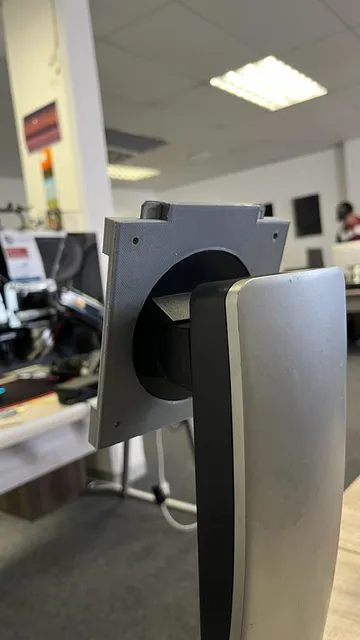

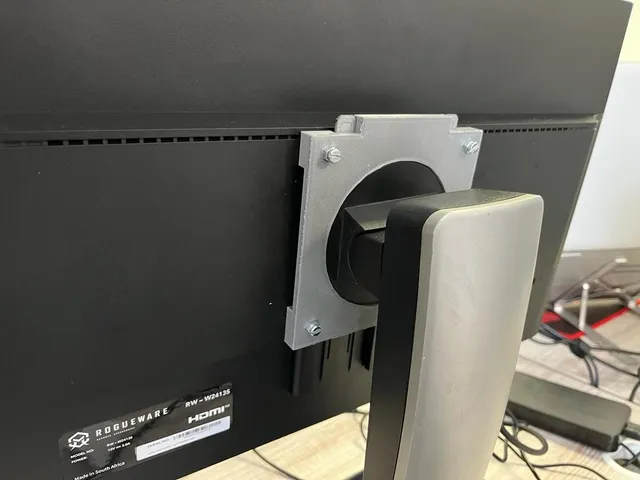

{"data":{"make":{"id":"1439206","created":"2024-01-10T07:12:48.088927+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"292","name":"Creality Ender 3 V2","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"1016719","handle":"PietmanMauer_1016719","verified":false,"dateVerified":null,"publicUsername":"Pietman Mauer","avatarFilePath":"media/auth/avatars/4e/4eaf3603-cfb5-430f-b926-5d97e710f47a.png","badgesProfileLevel":{"profileLevel":9,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"1275286","filePath":"media/comment_images/f2/c71688-13d2-435c-b9e3-d4519ebb8f22/whatsapp-image-2024-01-10-at-084826_fbe4daee.jpg","rotation":0,"__typename":"CommentImageType"},{"id":"1275287","filePath":"media/comment_images/7f/527ac2-ffb1-4268-85c6-5069bc2ddfdf/whatsapp-image-2024-01-10-at-084826_4d098956.jpg","rotation":0,"__typename":"CommentImageType"},{"id":"1275288","filePath":"media/comment_images/ab/9b0d21-ebf9-4f1f-bcbd-298d68fc6744/whatsapp-image-2024-01-10-at-084826_835a943f.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"At my work we have a few dell necks and other screens with vesa mounts and this is a great solution and cheaper than getting monitor arms.\n\nThanks for the design!","rating":null,"likesCount":1,"liked":null,"membershipAgeMonths":null,"membershipTier":null,"__typename":"PrintCommentType","model":{"id":"622441","slug":"dell-p2210-stand-vesa-100-adapter","name":"Dell P2210 Stand VESA 100 Adapter","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"0E-10","myRating":null,"ratingCount":0,"description":"

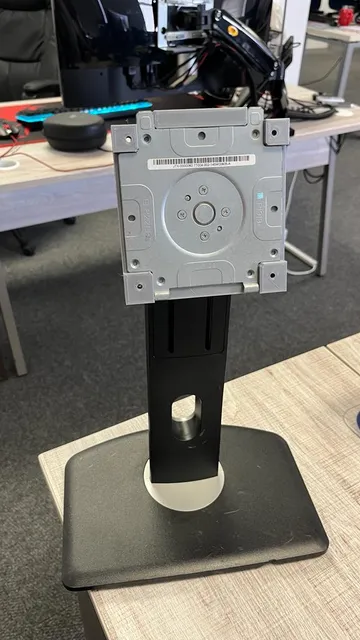

My old DELL P2210 came with a proprietary monitor stand. This adapter converts it for use with standard VESA 100 monitors.

There is a standard (5 mm) and extra thick version (10 mm) attached - I only printed the standard version as it is strong enough for my 24'' monitor.

Requires 4x M4 20-25 mm screws (25-30 mm for extra thick version).

The 4 small holes must be drilled with a 2 mm drill.

Print settings

0.2 mm Quality preset with Prusament PLA

4 Perimeters

30% infill

70% infill for the top part (guide rail and holes)

or use the 3mf project files as example.

","category":{"id":"29","path":[{"id":"3","name":"Household","nameEn":"Household","description":"Marvel at these impressive interior and exterior decors. Download print-in-place items, vases of various shapes, or geometrical lamps.","__typename":"CategoryType"},{"id":"29","name":"Office","nameEn":"Office","description":"Sitting behind the desk will be more comfortable with an adjustable stand for laptop, mobile, and documents. Improve your office with a pen holder or organizer.","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2023-10-22T09:39:03.744176+00:00","firstPublish":"2023-10-22T09:29:58.886604+00:00","datePublished":"2023-10-22T09:39:03.729878+00:00","dateCreatedThingiverse":null,"nsfw":false,"summary":"Adapter to use the proprietary DELL stand with all VESA 100 monitors.","likesCount":17,"makesCount":1,"liked":null,"printDuration":"4.63","numPieces":2,"weight":"48.00","nozzleDiameters":["0.40"],"usedMaterial":null,"layerHeights":["0.20"],"mmu":false,"materials":[{"id":"1","name":"PLA","__typename":"MaterialTypeType"}],"dateFeatured":null,"downloadCount":96,"displayCount":832,"filesCount":6,"privateCollectionsCount":10,"publicCollectionsCount":8,"pdfFilePath":"media/prints/622441/pdfs/622441-dell-p2210-stand-vesa-100-adapter-e278564e-af7d-4d26-a6a6-014b0667a328.pdf","commentCount":2,"userGcodeCount":0,"remixCount":1,"canBeRated":false,"printer":{"id":"1","name":"Prusa MK3/S/S+","__typename":"PrinterTypeType"},"image":{"id":"2334608","filePath":"media/prints/622441/images/4937047_b1479d89-e528-445f-9ecc-4eec2a29a592_cc293df9-2911-4b42-8cde-3534e30c95f1/result.jpg","rotation":0,"imageHash":"IggKDIKIuoaPd3d6d4qGlY9Y+g==","imageWidth":1200,"imageHeight":677,"__typename":"PrintImageType"},"images":[{"id":"2334608","filePath":"media/prints/622441/images/4937047_b1479d89-e528-445f-9ecc-4eec2a29a592_cc293df9-2911-4b42-8cde-3534e30c95f1/result.jpg","rotation":0,"imageHash":"IggKDIKIuoaPd3d6d4qGlY9Y+g==","imageWidth":1200,"imageHeight":677,"__typename":"PrintImageType"}],"tags":[{"name":"dell","id":"4563","__typename":"TagType"},{"name":"vesa100","id":"9904","__typename":"TagType"}],"thingiverseLink":null,"filesType":"GCODE","previewFile":{"id":"2629935","filePreviewPath":"media/prints/622441/stls/4937049_6e8f25ca-b47e-42dd-889c-74e6ab42290f_2a8147db-7a73-41bd-af19-88e51f8eabd8/dell-vesa-holder_slicer_extra_thick_preview.png","__typename":"STLType"},"license":{"id":"1","disallowRemixing":false,"__typename":"LicenseType"},"remixParents":[],"remixDescription":null,"__typename":"PrintType","user":{"id":"141854","handle":"alexkoe_141854","verified":false,"dateVerified":null,"publicUsername":"alexkoe","avatarFilePath":"","badgesProfileLevel":{"profileLevel":6,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isFollowedByMe":false,"canBeFollowed":true,"designer":false}},"unavailableModel":null,"replies":[]}}}

Dell P2210 Stand VESA 100 Adapter

Dell P2210 Stand VESA 100 Adapter
