Ender 5 Belt Bearing Spacer
Creality Ender 3 V3 SE
2
January 9, 2024 at 2:24 AM
Original model
Comments
Happy it helps. Should keep the belts from fraying as much.
@daann_ii I didn't dare to choose the right side. I did the left side as you said. it looks good right now. thank you.
@milknmocha It is a bit of work to get to the one on the right side. Here is a video that I used to do mine which shows how to replace the belt. Basically do all the steps except actually replacing the belt. If you still need some assistance, let me know. https://www.youtube.com/watch?v=b81rU2iMNso&t=628s
And be sure to re-run the leveling function after you are done. Anytime you remove components and put them back, you should run the leveler. (edited)
@daann_ii how were you able to put it on? im trying to take it off but im having trouble

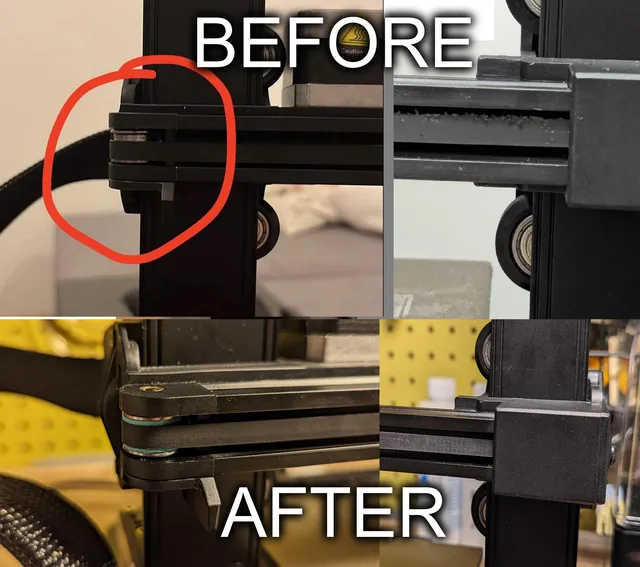

I made these for a Ender 3 V3 SE. They are not the correct size but I scaled them down to 83%x, 83%y, 100%z. I printed in PETG. I put them on two pulleys, the visible one on the left and the covered one on the right (accessible only after removing belt so have fun with that). Big shout out to the creator as I have zero CAD skills. Its also a simple yet clever solution that works really well. Thanks a ton.
