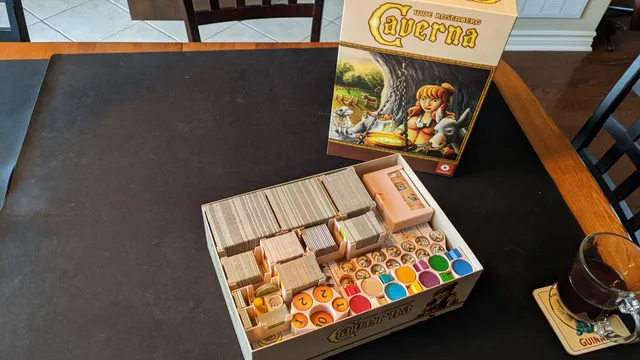

An organizer for board game Caverna: The Cave Farmers is designed for box inner dimensions 310 mm x 220 mm x 100 mm to store all game componets (boards, tiles, tokens, cards, rules) of base game.

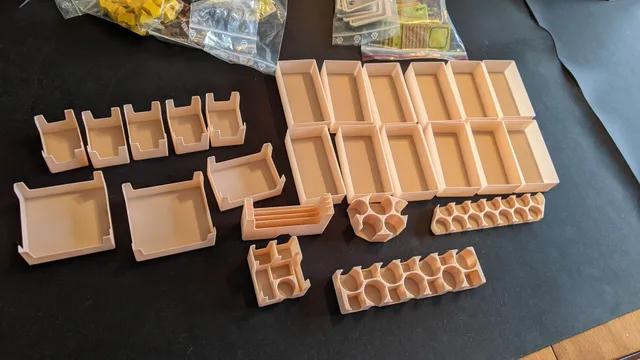

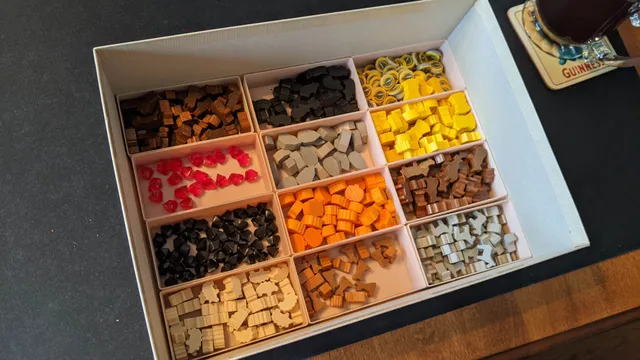

Components of the organizer are placed into box in two layers. In bottom layer is placed 12 tokens compartment (standard size) or up to 4 customizable tokens compartments. In top layer are placed all other holders. There is several options for placement of holders in top layer. Cards holder is designed for cards in protection sleeves.

I printed with standart profile for PLA, 0,4 mm nozzle, 0,20 mm layer height with some adjustments - enabled option for avoid crossing perimeters (100 %) for less stringing, skirt height set to 1 layer. Tokens compartment were printed in Vase mode with outer perimeter set to 0,7 mm.

As option you can print several half sized tokens compartment to save some space.

Another option is print customizable tokens compartment - you can delete/move (even add more) inner walls directly in slicer (checked in PrusaSlicer 2.5.2) according to your needs. It replaces four standard tokens compartment.

Please leave a comment if you preffer another wall thickness.
