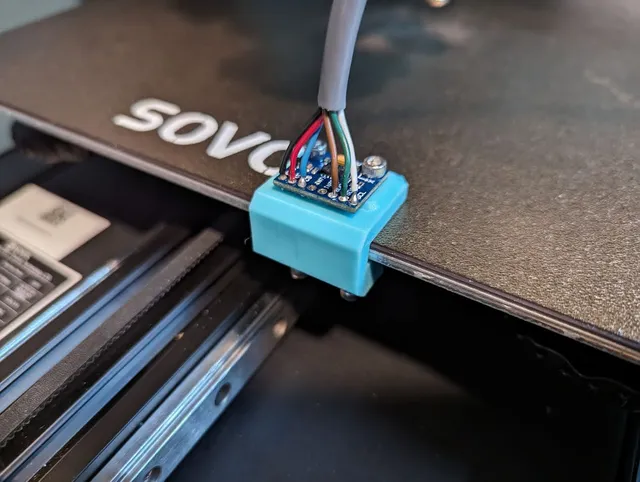

Here's my over engineered captive mount ADXL345 bed mount, it's designed for PEI covered beds of no more than 6mm deep total. Glass surfaces won't fit here!

Keep your printer bed undamaged by using this captive clamping system.

No bolts screw down onto your bed, the clamping block does not fall out of the body!

NOTE: Your printer must be setup well & be very accurate - SMALL DETAILS!!

Print 0.2mm layer height or smaller.

Print standing upright on its end with supports added inside the body opening. Make sure your support settings are easy to remove, leaving a bad review because you can't remove your supports is not cool. This STL prints perfectly like this.

Once printed, gently & carefully pop the block into the body with the tabs at the bottom & slight rounded corners to the open side. Slip one side in first then pop the other down trying not to damage the print.

You'll need:

4x M3 SHORT heat inserts

2x M3 10-12mm cap heat bolts for lower clamp

2x M3 4mm cap head bolts for upper mounting

oh & don\u2019t tighten the bolts when the clamp is empty or you\u2019ll pop the block out

I have a X axis mount for the Biqu H2V2/S extruder as well.
