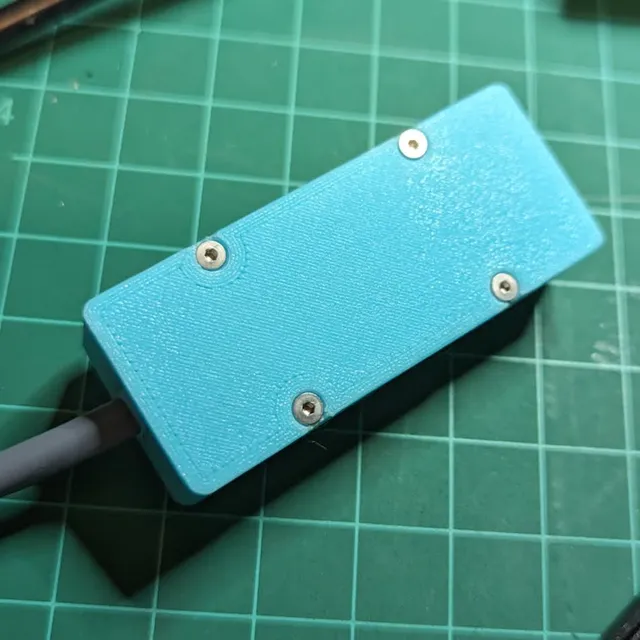

Screw in Case for Raspberry Pi Pico

I designed this after watching Nero3D's Video on how to use the Pico with an ADXL Sensor on Klipper:

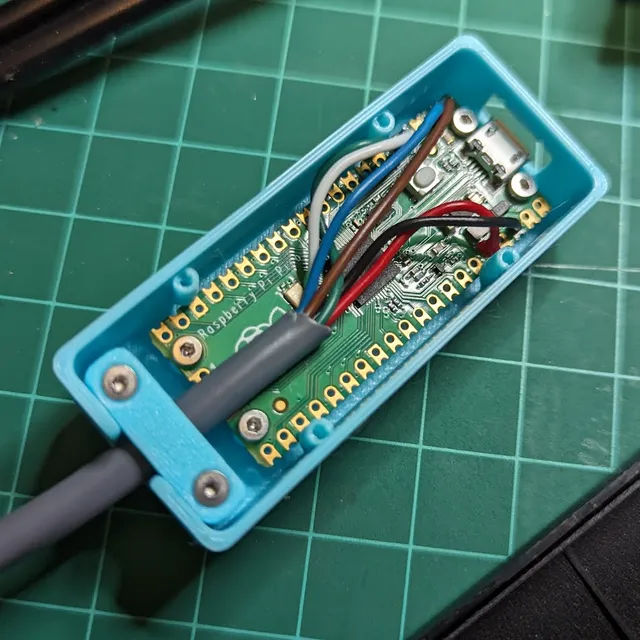

This case fits the Pi Pico and got a built in strain relief for the ethernet cable (5.5-6mm diameter will work).

What you need:

4x M2x4mm Screw (for mounting the Pi inside the case)
2x M2x10mm Screw (for the strain relief)
4x M2x7mm Screw (for the lid)

Revisions:

You can find revisions in the files folders, parts that are not revised remain in the root folder.

Initial commit
Added possibility to remove the assembly with the cable from the case by adding a cutout in the case and a matching piece in the lid
