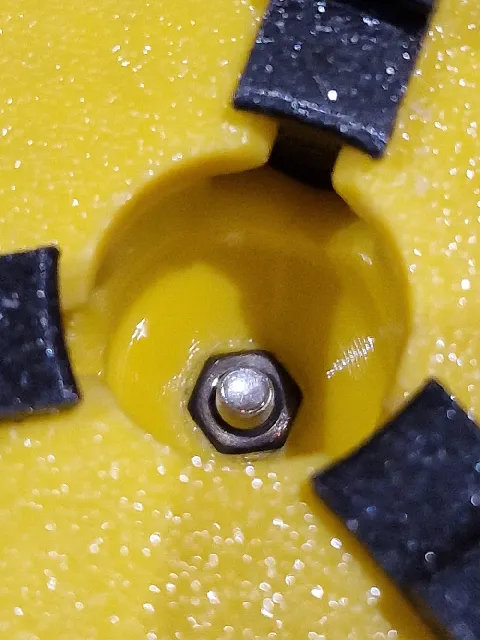

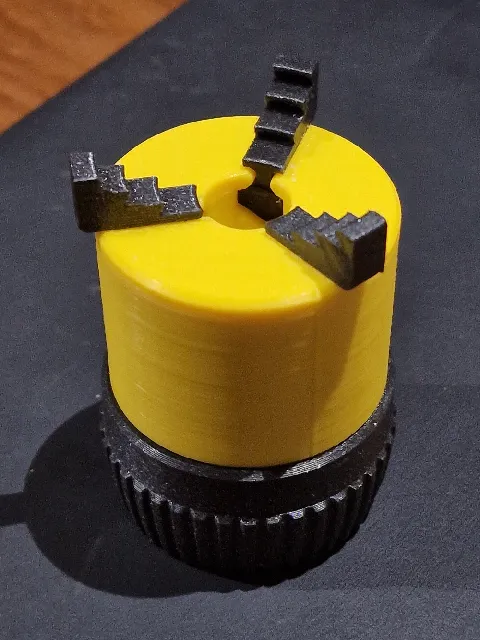

{"data":{"make":{"id":"1293865","created":"2023-11-22T22:57:40.318055+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"336","name":"Bambu Lab X1","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"1158731","handle":"Josuanbn","verified":false,"dateVerified":null,"publicUsername":"Josuanbn","avatarFilePath":"media/auth/avatars/e7/e75e4f74-dc85-47d7-b279-9c6dd1efe16b.png","badgesProfileLevel":{"profileLevel":12,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"1132240","filePath":"media/comment_images/1d/ff6704-34b2-47d1-891f-0ad8b02e2b84/17006935177096484872614223549412.jpg","rotation":0,"__typename":"CommentImageType"},{"id":"1132239","filePath":"media/comment_images/b1/83faaf-5999-401c-a4e8-288c656dea8b/17006935369682924632023384389323.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"Awesome tool! Since I didn't have an M3 insert, I heated an M3 thread and pulled it with an M3x60 screw so that it is integrated into the part, then I threaded the bottom part with an M3x10 (2nd photo).\nThanks for this design!","rating":5,"likesCount":1,"liked":null,"membershipAgeMonths":null,"membershipTier":null,"__typename":"PrintCommentType","model":{"id":"633650","slug":"vise-miniature-holder-for-painting","name":"Vise Miniature Holder For Painting","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"4.9686098655","myRating":null,"ratingCount":223,"description":"

Inspired by Sneaks awesome vise model I designed this miniature holder for painting. This mechanical concept makes so easy to attach and release miniatures with different base diameter or shape (square, oval\u2026) although is best for round ones (up to 50 mm)

PRINT SETTINGS:

No supports. Print teeth with brim to ensure good bed adhesion. My recommendations are 3 walls, 20% infill, 0.2 layer height.

On Prusa Slicer, Bambu Studio or Orca Slicer make sure to disable thick bridges.

You need to have well tuned printer and filament settings (flow rate, e-steps) in order to print accurate parts because this model has tight tolerances.

ASSEMBLY NOTES:

Teeth are numbered, it's very important to put them in the right place and order.
If you have some grease, like superlube or lithium grease it can make vise run way better. It's not a must, but always helps.

IMPORTANT UPDATE 11/15/23: If you are having trouble with 50mm version of teeth make sure to download the FIXED stl files. Turns out that Prusa Slicer and Bambu Studio have an extrange behavior that makes 50mm version of the teeth to be sliced incorrectly when using 0.2 layer height, making them grip to the top part due to slightly larger measurement in some areas. Thanks to sphink for report this issue!

Check for other updates after the short assembly video at the end of description.

ASSEMBLY STEPS:

All three teeth are numbered by dots, look for the one with only one dot and take it.

Place it from the inner hole sliding it all to the end of the slot.

Place the other two teeth strictly in clockwise order as shown in the picture above.

Put a little bit of grease with your finger on top of bottom part and spread it well.
Align tooth number 1 with the notch in the bottom part and attach both parts together. All three teeth must remain always completely open to fit in the right place.

Test vise assembly twisting it back and forth to check teeth movement. Maintain a little pressure to ensure both pieces remain in place. If everything feels ok it's time to lock it.

Take the lock washer piece and one M5x10 bolt (M5x15 or M5x20 are ok too) Put more grease on the conical face of the washer and screw everything against the top part. Not too tight, be gentle!

NOTHING LIKE A SHORT VIDEO:

UPDATES:

11/07/2023: Added by request new versions of Top and Lock_Washer pieces for those who want to use an M3 threaded insert and M3 bolt instead of M5 bolt.

11/11/2023: Added by request new teeth version that allows to grab bases up to 50mm instead of initial 42mm limitation. Thanks to Sean for kindly testing it!

11/21/2023: Modified by request angle of teeth steps to improve grip. Now fits a lot better with GW bases.

23/11/2023: Modified hole for Top_ThreadedInsertM3. The hole was too big and has been reduced to 4mm diameter, now I believe it fits most common threaded inserts. Make sure to download the FIXED version of stl file. Thanks to EisenKurt for report this issue!

04/12/2023: Uploaded STEP files for those who want to modify or create new parts for this model. Looking forward to see your remixes!
