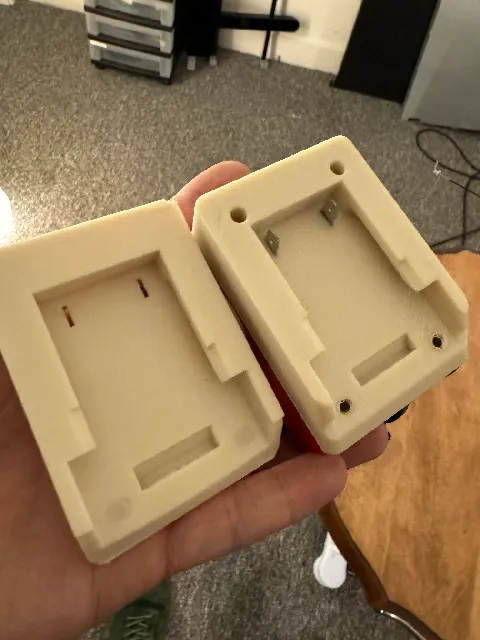

{"data":{"make":{"id":"1279882","created":"2023-11-17T04:29:14.259261+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"648","name":"Creality K1","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"366288","handle":"aspoels_366288","verified":false,"dateVerified":null,"publicUsername":"aspoels","avatarFilePath":"media/auth/avatars/d6/d6711fe3-b7da-4097-b786-f8660daf2372.jpeg","badgesProfileLevel":{"profileLevel":16,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"1118629","filePath":"media/comment_images/26/46f132-3f42-47be-b0be-3cadd4216efa/img_1347.jpeg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"Works great, modified it a little for my purposes.","rating":5,"likesCount":0,"liked":null,"membershipAgeMonths":null,"membershipTier":null,"__typename":"PrintCommentType","model":{"id":"226563","slug":"dewalt-20v-battery-dock","name":"Dewalt 20V battery dock","authorship":null,"club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"5.0000000000","myRating":null,"ratingCount":2,"description":"

I made this mating connector for a Dewalt 20V battery pack so I could use it in a battery-powered project. For printability I split it into two halves and glued them together.

I used \u00bc\" spade terminals as the contacts, which can be glued into the pockets (although with the deforming from crimping they press-fit nicely without glue). I'm only accessing the battery + and - contacts, although apparently it's possible to roll your own your own balanced charger (see the link below) in which case you'll need the other contacts too.

PLEASE NOTE: Apparently under-voltage protection for these battery packs is provided in the tool, not the pack, so please plan accordingly!!! Lithium-ion batteries are dangerous! This info is to be used at your own risk!

Based loosely on this Dewalt battery pack model, however I did need to adjust some dimensions: https://grabcad.com/library/dewalt-dcb-battery-1

More info on pinouts, etc. can be found in this very helpful teardown: https://www.sevarg.net/2016/09/11/dewalt-20v-max-30ah-battery-pack/

I included a STEP file so this can be easily integrated into your project, and a Fusion 360 file is available. PLEASE BE CAREFUL!!!
