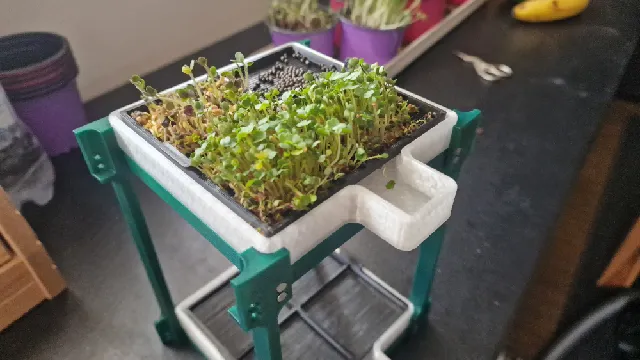

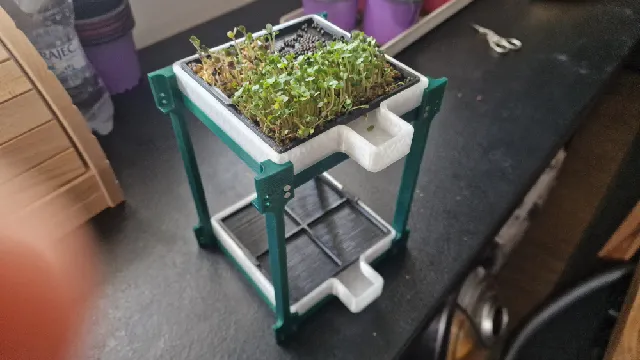

{"data":{"make":{"id":"1278157","created":"2023-11-16T09:26:04.394018+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"18","name":"Prusa MINI / MINI+","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"1327275","handle":"Hacky_1327275","verified":false,"dateVerified":null,"publicUsername":"Hacky","avatarFilePath":"media/auth/605bfc84-13b7-4f98-ae59-e2bd4146b6ce.jpg","badgesProfileLevel":{"profileLevel":9,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"1116969","filePath":"media/comment_images/12/f5d34d-6ef7-43b3-84f0-3606f9ef6018/20231031_091504.jpg","rotation":0,"__typename":"CommentImageType"},{"id":"1116970","filePath":"media/comment_images/3d/2a5dad-509b-4b5d-8cb8-c8af5f0a00f6/20231031_091516.jpg","rotation":0,"__typename":"CommentImageType"},{"id":"1116971","filePath":"media/comment_images/81/384e9d-88a4-4544-9a8e-9dc38b09243b/20231031_091455.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"Sieve and bottom were printed using PETG, others using PLA. Works well, I just had to improvise with the screws (used nails in the end).","rating":5,"likesCount":0,"liked":null,"membershipAgeMonths":null,"membershipTier":null,"__typename":"PrintCommentType","model":{"id":"163298","slug":"modular-cresssprout-sievefarm-v2","name":"Modular Cress/Sprout Sieve/Farm V2","authorship":"remix","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"4.9000000000","myRating":null,"ratingCount":20,"description":"

Based on this work.
Reworked version of the Modular Cress/Sprout Sieve/Farm V1.
The previous version had some flaws regarding the claning of the individual trays. So I modified the setup to allow the individual trays to be removed for cleaning.

Sieve and bottom are compatible to V1.

Required hardware:

8x 1.7x10 self tapping, counter sunk screws (8x for connecting 2 modules)

Available Files :

farm_bottom: water tank to keep your sprouts hydrated

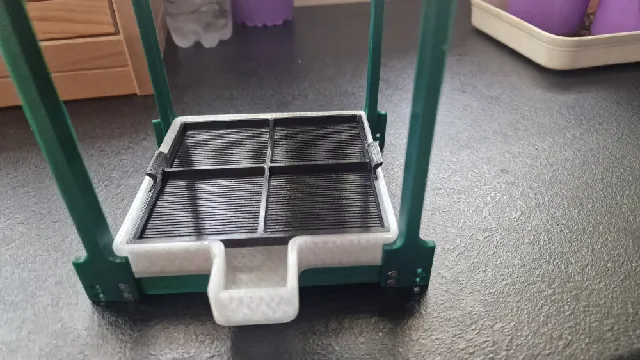

sieve: removable sieve to put your sprouts on
spacer: used to build up the \u201cshelf\u201d together with the connectors
connector_2d: for stacking multiple modules and at the same time ensuring enough lighting for the sprouts

Usage (for cress):

put 2 table spoons of cress seeds in a glass of water and wait for 15min
put one layer of wet seed on the sieve
make sure to keep thee seeds wet for the initial 2 days, carefully water them from above of fill the tank entirely.
after 2 days the sprouts have grown roots and can be watered by just filling the tank
After 5-6 days you can harvest the sprouts.

Printing Instructions

Prusament PETG Urban Grey
layer height 0.3mm
No raft

Feedback Appreciated

Please give feedback and post your makes. I am curious to see your prints and setups.
