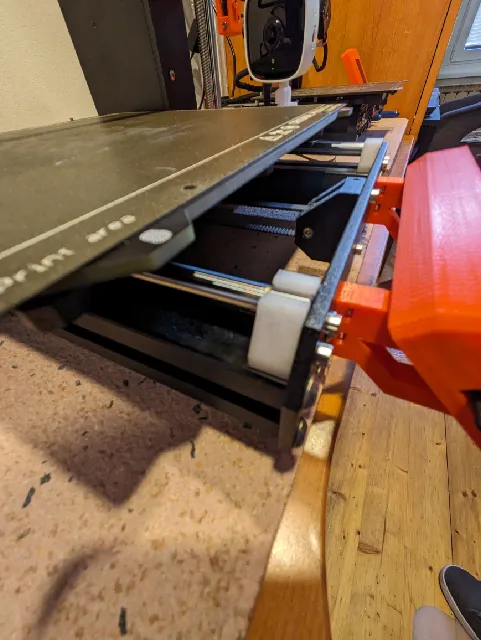

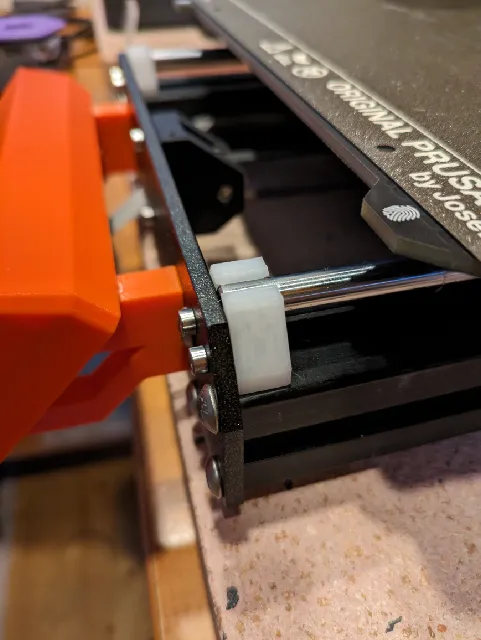

{"data":{"make":{"id":"1254770","created":"2023-11-06T12:32:53.311155+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"18","name":"Prusa MINI / MINI+","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"112156","handle":"Goro","verified":false,"dateVerified":null,"publicUsername":"Gorobey","avatarFilePath":"media/auth/avatars/be/beb65bee-e273-4cf6-9864-0be7363bf1b7.jpg","badgesProfileLevel":{"profileLevel":15,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"1093745","filePath":"media/comment_images/74/52c817-a34f-4c8d-99fe-3b4def9a98d3/1000010613.jpg","rotation":0,"__typename":"CommentImageType"},{"id":"1093744","filePath":"media/comment_images/cd/e7bfde-0e70-42c1-b948-feb461bd79bc/1000010621.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"a good solution, it seems to work like the original, but it also seems more solid, even if it uses less hardware. printed after breaking one of the supports (I overtightened a screw)","rating":4,"likesCount":0,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"422929","ratingAvg":"4.5000000000","ratingCount":2,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType","model":{"eligibleForNomination":false,"id":"422929","slug":"prusa-mk3-y-rod-holder","name":"Prusa MK3 Y Rod Holder","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"4.5000000000","myRating":null,"ratingCount":2,"description":"

Summary
File updated 2019-11-23

This is a Y-Rod holder for the Prusa i3 MK3 that removes the need for zip ties. I originally tried one with a fully enclosed circle, but ended up cracking them during installation. This version leaves a gap at top for expansion when inserting rod, yet provides a tight secure lock on the rod.

Don't forget to recalibrate first layer height after installation!

Print Settings
Printer brand:
Prusa

Printer:
i3 MK3

Rafts:
No
Supports:
No
Resolution:
.2mm
Infill:
20%
Filament brand:
Prusa

Filament color:
Orange

Filament material:
PET

Notes:
To install, do one piece at a time. When replacing the front pieces, slide the heatbed all the way to the back, and vice-versa when replacing the back pieces. Cut the zip tie off one of the supports, and then remove the two screws holding it to the frame to release it. Remove the square nuts from the old piece (may have to destroy it to get them out), and insert into the new piece. Position in the correct orientation and insert the end of the rod into the holder. Stage the holder in position (you may have to support the nuts with your fingers or a temporary piece of tape to keep them from falling out), and secure to the frame with the two screws. Repeat for all 4 supports. Upon completion, perform a first layer calibration.

","category":{"id":"134","path":[{"id":"1","name":"3D Printers","nameEn":"3D Printers","description":"Upgrading and improving your 3D printer couldn't be easier - no matter whether you're looking for functional or aesthetic modifications. Discover the best improvements.","__typename":"CategoryType"},{"id":"134","name":"Prusa Parts & Upgrades","nameEn":"Prusa Parts & Upgrades","description":"Explore upgrades, parts and modifications! Enhance your Prusa 3D printer with spool holders, camera mounts, LCD covers, fan shrouds, and more, including the Lack enclosure \u2013 all designed to optimize your Prusa CORE One, MK4, XL, MINI, MK3S+, SL1S, HT90 and more.","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2023-03-13T17:25:14.721347+00:00","firstPublish":"2023-03-13T17:25:14.706350+00:00","datePublished":"2023-03-13T17:25:14.708192+00:00","dateCreatedThingiverse":null,"nsfw":false,"aiGenerated":false,"politicalContent":false,"summary":"This is a Y-Rod holder for the Prusa i3 MK3 that removes the need for zip ties","likesCount":16,"makesCount":2,"liked":null,"printDuration":null,"numPieces":0,"weight":null,"nozzleDiameters":null,"usedMaterial":null,"layerHeights":null,"mmu":false,"materials":[],"dateFeatured":null,"downloadCount":138,"displayCount":713,"filesCount":1,"privateCollectionsCount":15,"publicCollectionsCount":8,"pdfFilePath":"media/prints/422929/pdfs/422929-prusa-mk3-y-rod-holder-52ab8394-10d8-4702-ac63-3fdeea5f48de.pdf","commentCount":3,"userGcodeCount":0,"remixCount":0,"canBeRated":false,"addMakePermission":null,"printer":null,"image":{"id":"1684466","filePath":"media/prints/422929/images/3502175_c646a546-a697-4b74-8957-22566305a6fb/2cbdc7c2305e8c2cc3dfab8b00c3ebaa_preview_featured.jpg","rotation":0,"imageHash":"WkkONYpXZ4eGh3d+eXl4fzh3gGIH","imageWidth":628,"imageHeight":472,"__typename":"PrintImageType"},"images":[{"id":"1684466","filePath":"media/prints/422929/images/3502175_c646a546-a697-4b74-8957-22566305a6fb/2cbdc7c2305e8c2cc3dfab8b00c3ebaa_preview_featured.jpg","rotation":0,"imageHash":"WkkONYpXZ4eGh3d+eXl4fzh3gGIH","imageWidth":628,"imageHeight":472,"__typename":"PrintImageType"},{"id":"1684465","filePath":"media/prints/422929/images/3502178_8c8b912b-f934-44c5-a294-4db7f0bf430b/c67053a0238b3fc7654a29225dea2dde_preview_featured.jpg","rotation":0,"imageHash":"zUgGJYplrGndfIncuXetj2CVBzZ5","imageWidth":628,"imageHeight":472,"__typename":"PrintImageType"},{"id":"1684467","filePath":"media/prints/422929/images/3502176_233b0ba9-77fc-430d-823c-c08c9dc1db2d/790930fc8a5511d7ebd4ef7cdc43dfd3_preview_featured.jpg","rotation":0,"imageHash":"T0gKFYYqeXmsenW1WvdKivdcVFgF","imageWidth":628,"imageHeight":472,"__typename":"PrintImageType"},{"id":"1684468","filePath":"media/prints/422929/images/3502179_11a0d6e4-104c-42d9-b3c4-ae567c30742c/21f7dcb3e8ba99993db93129863a1e4c_preview_featured.jpg","rotation":0,"imageHash":"WVkONYxoZ4eDh3d7eYmHjzh3gFMH","imageWidth":628,"imageHeight":472,"__typename":"PrintImageType"}],"imagesCount":4,"tags":[],"thingiverseLink":null,"filesType":null,"previewFile":{"id":"1836830","filePreviewPath":"media/prints/422929/stls/3502177_9406e773-6ea8-4f28-b802-3668264563d5/y_rod_holder_preview.png","__typename":"STLType"},"license":{"id":"1","disallowRemixing":false,"__typename":"LicenseType"},"remixParents":[],"remixDescription":null,"easyprintProjects":[],"__typename":"PrintType","user":{"id":"16130","handle":"Mr_Tantrum","verified":false,"dateVerified":null,"publicUsername":"Mr_Tantrum","avatarFilePath":"media/auth/avatars/36/36849658-db70-45d5-903d-b4ef0052ed3e.jpg","badgesProfileLevel":{"profileLevel":16,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isFollowedByMe":false,"canBeFollowed":true,"designer":false}},"unavailableModel":null,"replies":[{"id":"1549254","created":"2024-02-14T22:49:02.602835+00:00","edited":null,"deleted":null,"isMake":false,"printer":null,"parent":{"id":"1254770","__typename":"PrintCommentType"},"author":{"id":"16130","handle":"Mr_Tantrum","verified":false,"dateVerified":null,"publicUsername":"Mr_Tantrum","avatarFilePath":"media/auth/avatars/36/36849658-db70-45d5-903d-b4ef0052ed3e.jpg","badgesProfileLevel":{"profileLevel":16,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[],"mentions":[{"id":"112156","handle":"Goro","__typename":"MentionListAssociationType"}],"text":"##user-112156## Glad they worked out for you. I think Prusa has changed their design but when I first designed these the OEM part actually used zip ties.","rating":null,"likesCount":0,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"422929","ratingAvg":"4.5000000000","ratingCount":2,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType"}]}}}

Prusa MK3 Y Rod Holder

Prusa MK3 Y Rod Holder
