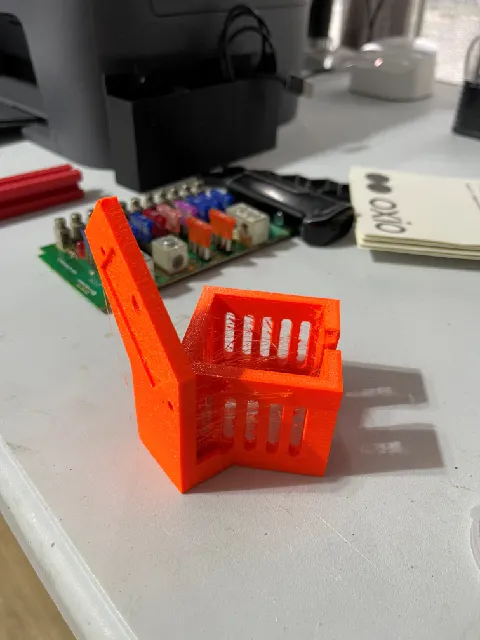

{"data":{"make":{"id":"1244727","created":"2023-11-02T17:23:33.657693+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"18","name":"Prusa MINI / MINI+","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"568358","handle":"Rooster","verified":false,"dateVerified":null,"publicUsername":"Rooster","avatarFilePath":"media/auth/avatars/77/77d9d0c7-d86f-4d85-aa80-879c044f0a19.jpg","badgesProfileLevel":{"profileLevel":21,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"1083502","filePath":"media/comment_images/15/1fc67e-4213-4d09-9a91-6dff52f6e7c9/hjafhs.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"can't wait to test this","rating":5,"likesCount":0,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"378060","ratingAvg":"5.0000000000","ratingCount":1,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType","model":{"eligibleForNomination":false,"id":"378060","slug":"filament-sensor-vertical-mount-for-prusa-mini","name":"Filament Sensor Vertical Mount (for Prusa Mini)","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"5.0000000000","myRating":null,"ratingCount":1,"description":"

Vertical Sensor Mount:

For this vertical sensor mount solution you do not need any new parts. Every standart Prusa Mini+ part can be used with this new mount.

Installation:

This mount replaces the top case of your filament sensor. You only need to remove two screwes of the top default case. After removing the top cover, you put the sensor on the new mount. You use both screws again to mount it. The standart tools (hex driver) of your Prusa mini+ are the only tools needed. That's it.

Printing:

PLA or PETG
0.4mm Nozzle
0.2 layer height and width
no supports
3-4 layer vertical

Note:

I have upgraded my mini with the bondtech extruder. The sensor is not connected to the mini anymore. I do not have any old pictures of the original extruder with this mount. I also reduced the material usage of this design!
