Check the latest version here:
https://www.printables.com/model/447434-squash-ball-mk4mk3smk3s-vibration-damper-v40

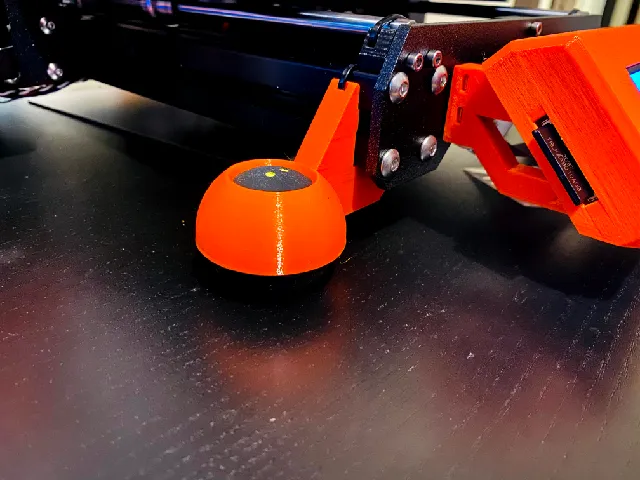

Yet another SquashBall MK3S/MK3s+ vibration Damper,
I had 3 design objectives:

Damp the nasty vibrations caused by the MK3;
Use the Same part in all corners;
Use no Tools/screws, you only need 4 cable ties (you should have some left from the KIT)

Already have a couple of days of printing in these, im very happy with them! :)

Extras needed:
-4 balls, I used the double yellow dot.
-4 zip ties from your MK3S kit.

check out also the new Version:

https://www.prusaprinters.org/prints/59947-new-version-squahball-mk3smk3s-vibration-damper-v3

Print instructions

Printed in Prusament PETG;
Prusa 0,2 Quality Profile modified 4 Perimeters;
No supports needed!

I recommend putting the zip ties in the parts before you clip them in the printer.
Tip: bend slightly the tip of the zip ties.

Be sure the balls are 100% in, it's designed to keep them in place.

Keep them as close as possible to the back and front frame respectively, this way there's no chance the zip ties interfere with the linear bearings holders.

Extras needed:
-4 balls, I used the double yellow dot.
-4 zip ties from your MK3S kit.
