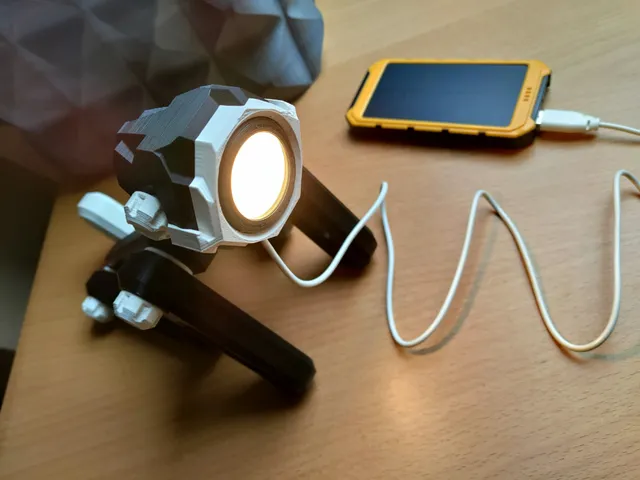

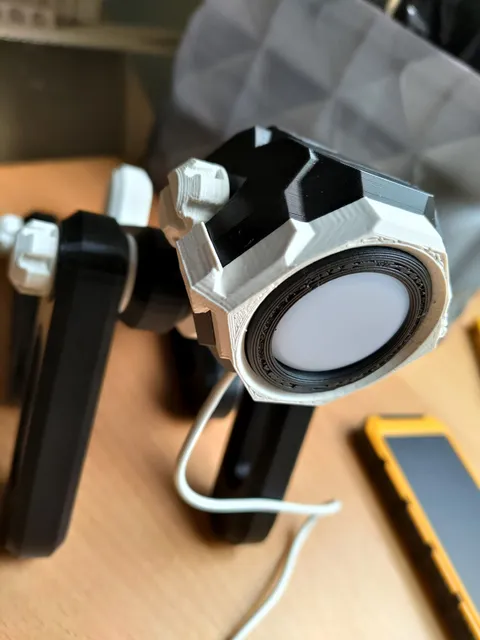

{"data":{"make":{"id":"121739","created":"2022-01-05T12:57:50.612130+00:00","edited":null,"deleted":null,"isMake":true,"printer":null,"parent":null,"author":{"id":"2084","handle":"DannyHermans","verified":false,"dateVerified":null,"publicUsername":"Danny Hermans","avatarFilePath":"media/auth/avatars/22/22aacb6f-2b5e-432a-b574-5beb9d9e6401.jpg","badgesProfileLevel":{"profileLevel":16,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"47868","filePath":"media/comment_images/b3/b15e8b-1afd-4af8-b513-0e185917f3cd/p_20220105_124724.jpg","rotation":0,"__typename":"CommentImageType"},{"id":"47869","filePath":"media/comment_images/b6/8575dd-7f49-481f-8378-64c127c99240/p_20220105_124757.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"Thanks, very good and nice design","rating":5,"likesCount":0,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"40728","ratingAvg":"5.0000000000","ratingCount":1,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType","model":{"eligibleForNomination":false,"id":"40728","slug":"i-dog","name":"i-DOG","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"5.0000000000","myRating":null,"ratingCount":1,"description":"

UPDATE:

Ikea do not have any more the light: \"IKEA - LEDBERG\"

Danny Hermans did make a remix to use \u201cIkea Halvklart\u201d - ( HERE )

Ty Danny for your update.

=====================================================================

Here are the files for my i-DOG,

I'm a dog lover, so my inspiration came from my love for dogs, the style is very bionic is how i like to design my parts.
I made this so that anyone can easily mod this model, and add extra parts or play with imagination, you can replace any parts easily.
I did take some time to design this model so that we can print without any stupors that are 100% overhangs free ;).
Is a funny model and you can play with him by placing him in many positions, work very well as bedside light and other applications just use your imagination.

Is 100% printable except the light that I did use \"IKEA - LEDBERG\".
https://www.ikea.com/pt/pt/p/ledberg-projetor-led-branco-00400927/

If you prefer you can use M10 screw rod and M10 nuts in place of printed ones.

The neck has a mechanism to lock in place just to guarantee the light stays in that position, you can always clear the preset points with a sand paper and use a TPU washer, but will not work as well as the preset points.

On this link you can download the assembly manual:
https://drive.google.com/file/d/1dAl2adbIIaBGuYFQOWIEwS2Mu6G5MSGn/view?usp=sharing

Hope you all enjoy,

Be safe and print on my friends.

Print instructions

Printed settings:

All parts:
25% Infill / Rectilinear
0.2 layer height
3 - Perimeter
4 - Top Layers
3- Bottom layers

Nuts:
25% Infill / Rectilinear
0.2 layer height / 0.1 optional.
3 - Perimeter
4 - Top Layers
3- Bottom layers

TPU washers:
For this washer I followed the tutorial from Prusa on this video, I did use the infill pattern - \"stars\".

The assembly is very easy. Just take note that I have made a kind of mechanism to lock the neck in place, you must align that with the neck.

On this link you can download the assembly manual:
https://drive.google.com/file/d/19lbqyyKw-1WNVksbbcWtnXdWjD8jk1KD/view?usp=sharing
