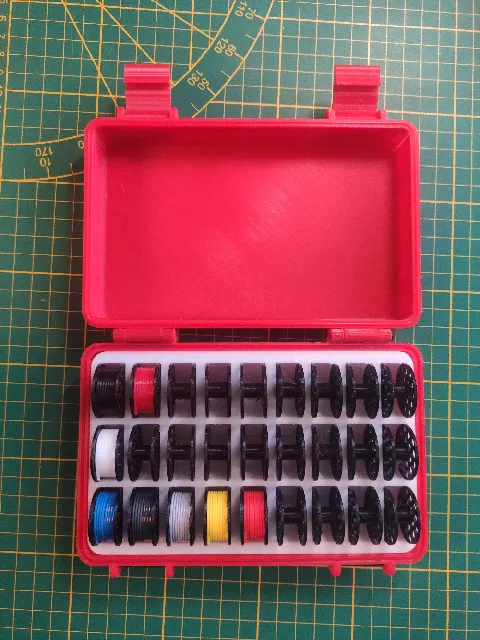

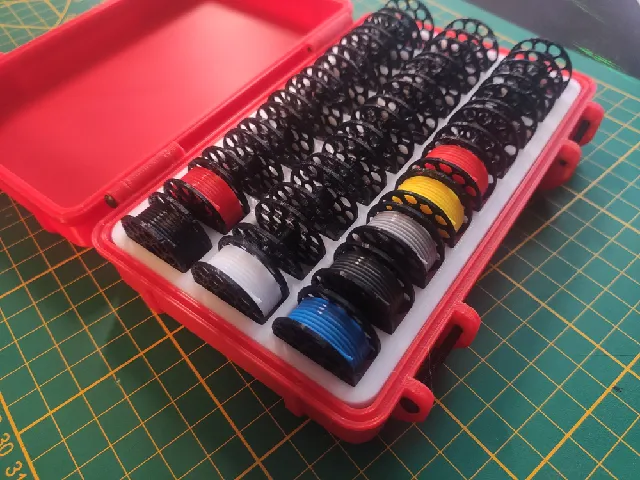

{"data":{"make":{"id":"1195274","created":"2023-10-14T13:25:38.771258+00:00","edited":"2023-10-14T13:28:01.725032+00:00","deleted":null,"isMake":true,"printer":{"id":"246","name":"Voron 2.4 CoreXY","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"1269951","handle":"msquaza_1269951","verified":false,"dateVerified":null,"publicUsername":"msquaza","avatarFilePath":"media/auth/avatars/e0/e070b2fe-a6ed-410d-8996-24ce23748065.jpg","badgesProfileLevel":{"profileLevel":7,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"1035121","filePath":"media/comment_images/e2/b2b714-6762-483e-8e57-1c950c2b3447/img_20231014_131049.jpg","rotation":0,"__typename":"CommentImageType"},{"id":"1035122","filePath":"media/comment_images/b2/773854-cd05-418c-bce8-c5174fcec980/img_20231014_131031.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"I splited the filament roll in two parts for ABS/ASA filaments and smooth one half with acetone vapor, so I have a better imagination of how a part would look like smoothed with acetone.","rating":5,"likesCount":0,"liked":null,"membershipAgeMonths":null,"membershipTier":null,"__typename":"PrintCommentType","model":{"id":"360829","slug":"mini-filament-spool-swatches-box","name":"Mini Filament Spool Swatches Box","authorship":"remix","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"4.8571428571","myRating":null,"ratingCount":77,"description":"

This is combination of multiple remixes to create filament spool swatches box that holds 27 spools.

Fun way to see what colors of filament you have in stock and sometimes the raw color is different from printed one. I added filament brand and name to side of spool.

Print settings

0.2mm layer hight
Supports: Box.stl requires supports, other files doesn't
Bottom fill pattern: Concentric on textured PEI buildplate
Spool settings: 0.4mm nozzle or under. Enable detect thin walls or use arachne perimeter generator
- I would also set extrusion width, external perimeters to automatic (0) (PrusaSlicer)

Filament color roll takes around ~15min to print.

Tip for PrusaSlicer users. Add filament roll model in shapes gallery, so that when printing something with new color its easy to throw in there.

What is modified from original authors

Prusament Spool Token (alex_3dprint) - spool honeycomb removed as scaling it down makes it not printable
Rugged Box (Whity)- changed size to match filament insert
Filament Spool Knob (DaHaubi)- Filament roll modified and resized
Small Spool swatches Box (KilianHerbst)- as is

Hardware

6x M3 30mm screws for hinge and latch

Edit 19.7.2023

Added adjusted_box. Supports no longer required. Thanks for the fix @MakeAUsername_285162

Edit 9.4.2023

Box.stl requires supports

Edit 16.2.2023

Updated latch print orientation

Edit 11.3.2023

Simplified filament spool knob mesh with v2
Added two THICK versions of filament spool to make it easier to print, high and loose tolerance, 0.1mm and 0.22mm

","category":{"id":"40","path":[{"id":"1","name":"3D Printers","nameEn":"3D Printers","description":"Upgrading and improving your 3D printer couldn't be easier - no matter whether you're looking for functional or aesthetic modifications. Discover the best improvements.","__typename":"CategoryType"},{"id":"40","name":"Accessories","nameEn":"Accessories","description":"Add cool improvements to your 3D printer - drybox, filament buffer, or extruder visualizer. These smart ideas will make your printer even better!","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2023-11-02T07:11:25.101545+00:00","firstPublish":"2023-01-06T18:24:49.893961+00:00","datePublished":"2023-11-02T07:11:24.508972+00:00","dateCreatedThingiverse":null,"nsfw":false,"aiGenerated":false,"summary":"Remix of multiple authors to create box of mini filament spool swatches","likesCount":1344,"makesCount":86,"liked":null,"printDuration":null,"numPieces":0,"weight":null,"nozzleDiameters":null,"usedMaterial":null,"layerHeights":null,"mmu":false,"materials":[],"dateFeatured":null,"downloadCount":3857,"displayCount":23351,"filesCount":12,"privateCollectionsCount":876,"publicCollectionsCount":664,"pdfFilePath":"media/prints/360829/pdfs/360829-mini-filament-spool-swatches-box-5e3fa3ed-a731-4783-b051-e58278b49916.pdf","commentCount":122,"userGcodeCount":0,"remixCount":8,"canBeRated":false,"printer":null,"image":{"id":"1480121","filePath":"media/prints/360829/images/3056328_45cff7c3-402a-4c0b-ab81-383f8183ff63/img20230106192024.jpg","rotation":0,"imageHash":"mkgKDYb0lZh4l3iMh1aHmgyWtWBJ","imageWidth":4000,"imageHeight":3008,"__typename":"PrintImageType"},"images":[{"id":"1480121","filePath":"media/prints/360829/images/3056328_45cff7c3-402a-4c0b-ab81-383f8183ff63/img20230106192024.jpg","rotation":0,"imageHash":"mkgKDYb0lZh4l3iMh1aHmgyWtWBJ","imageWidth":4000,"imageHeight":3008,"__typename":"PrintImageType"},{"id":"1480119","filePath":"media/prints/360829/images/3056326_a9b66309-aa89-4771-b490-5b70ed98df1c/img20230106192247.jpg","rotation":0,"imageHash":"YwgKDYLHmWaUeIZ/hEeYdth534r2","imageWidth":4000,"imageHeight":3008,"__typename":"PrintImageType"},{"id":"1480120","filePath":"media/prints/360829/images/3056327_da6757f8-e0c8-410a-92a9-c6837cc0b908/img20230106192340.jpg","rotation":0,"imageHash":"YQgKBYD3mIelZohupmeGd7+Ju3MG","imageWidth":4000,"imageHeight":3008,"__typename":"PrintImageType"},{"id":"1677176","filePath":"media/prints/360829/images/3486646_78fe3f92-d9aa-4488-8780-668a7d41a58b/msedge_mijyfoxoa1.png","rotation":0,"imageHash":"bQgODoB394h5d4eMiHWIyIh3iICDBjg=","imageWidth":878,"imageHeight":791,"__typename":"PrintImageType"},{"id":"1480122","filePath":"media/prints/360829/images/3056329_0dbdc8a6-311d-4051-ae14-4e8e86e47587/img20230106192648.jpg","rotation":0,"imageHash":"HokOHY71pXdrdniJeId3hweEckAo","imageWidth":4000,"imageHeight":3008,"__typename":"PrintImageType"}],"tags":[{"name":"filament","id":"303","__typename":"TagType"},{"name":"filamentspool","id":"2035","__typename":"TagType"},{"name":"filamentswatch","id":"9591","__typename":"TagType"},{"name":"filamentswatchbox","id":"103246","__typename":"TagType"}],"thingiverseLink":null,"filesType":null,"previewFile":{"id":"1592820","filePreviewPath":"media/prints/360829/stls/3056224_24b7adb5-fab9-4f2a-a084-403ba8e8c9dd/filament_roll_preview.png","__typename":"STLType"},"license":{"id":"4","disallowRemixing":false,"__typename":"LicenseType"},"remixParents":[{"id":"422585","modelId":null,"modelName":null,"modelAuthor":null,"model":null,"url":"https://www.thingiverse.com/thing:5607691","urlAuthor":"KilianHerbst","urlImage":"https://cdn.thingiverse.com/assets/02/57/c1/85/49/featured_preview_8bab8bcd-86be-475a-a881-b9514fa708b3.jpg","urlTitle":"Small Spool swatches Box","urlLicense":{"id":"1","name":"Creative Commons \u2014 Attribution","disallowRemixing":false,"__typename":"LicenseType"},"urlLicenseText":"Creative Commons - Attribution","__typename":"PrintRemixType"},{"id":"339601","modelId":"178237","modelName":"Prusament Spool Token","modelAuthor":{"id":"242114","handle":"alex_3dprint","verified":false,"publicUsername":"alex_3dprint","__typename":"UserType"},"model":{"id":"178237","name":"Prusament Spool Token","slug":"prusament-spool-token","datePublished":"2023-02-11T11:04:19.397830+00:00","image":{"id":"1591184","filePath":"media/prints/178237/images/3301316_0e6fe857-6494-4320-b48d-acdaf51f68a1/20230211_120333.jpg","rotation":0,"imageHash":"3PcVFwCYh4ifeId6hnh3aHh4ePpGhV8E","imageWidth":2992,"imageHeight":2992,"__typename":"PrintImageType"},"club":false,"authorship":"author","license":{"id":"4","name":"Creative Commons \u2014 Attribution \u2014 Noncommercial \u2014 Share Alike","disallowRemixing":false,"__typename":"LicenseType"},"eduProject":null,"__typename":"PrintType"},"url":null,"urlAuthor":null,"urlImage":null,"urlTitle":null,"urlLicense":null,"urlLicenseText":null,"__typename":"PrintRemixType"},{"id":"339602","modelId":"258431","modelName":"Rugged Box (Parametric)","modelAuthor":{"id":"3307","handle":"Whity","verified":false,"publicUsername":"Whity","__typename":"UserType"},"model":{"id":"258431","name":"Rugged Box (Parametric)","slug":"rugged-box-parametric","datePublished":"2025-02-16T16:04:31.504694+00:00","image":{"id":"1163583","filePath":"media/prints/258431/images/2362183_fd1aff76-7db1-4c13-9908-66b64e2ff041/rugged-box-parametric-01.png","rotation":0,"imageHash":"6GgSHor4p3eJiHh9hnZmuGiYBnZiYCc=","imageWidth":1545,"imageHeight":1389,"__typename":"PrintImageType"},"club":false,"authorship":"remix","license":{"id":"4","name":"Creative Commons \u2014 Attribution \u2014 Noncommercial \u2014 Share Alike","disallowRemixing":false,"__typename":"LicenseType"},"eduProject":null,"__typename":"PrintType"},"url":null,"urlAuthor":null,"urlImage":null,"urlTitle":null,"urlLicense":null,"urlLicenseText":null,"__typename":"PrintRemixType"},{"id":"339603","modelId":"304466","modelName":"Filament Spool Knob","modelAuthor":{"id":"45682","handle":"DaHaubi","verified":false,"publicUsername":"DaHaubi","__typename":"UserType"},"model":{"id":"304466","name":"Filament Spool Knob","slug":"filament-spool-knob","datePublished":"2022-12-29T18:06:31.579860+00:00","image":{"id":"1297293","filePath":"media/prints/304466/images/2656579_fb1f28a0-fa2a-4e02-9b25-7d7aa586825b/img_20221028_144016.jpg","rotation":0,"imageHash":"XggKDQLQdjGJN4Z3iJioqKngqHqf","imageWidth":4344,"imageHeight":5792,"__typename":"PrintImageType"},"club":false,"authorship":"author","license":{"id":"4","name":"Creative Commons \u2014 Attribution \u2014 Noncommercial \u2014 Share Alike","disallowRemixing":false,"__typename":"LicenseType"},"eduProject":null,"__typename":"PrintType"},"url":null,"urlAuthor":null,"urlImage":null,"urlTitle":null,"urlLicense":null,"urlLicenseText":null,"__typename":"PrintRemixType"}],"remixDescription":"

Added box seal
