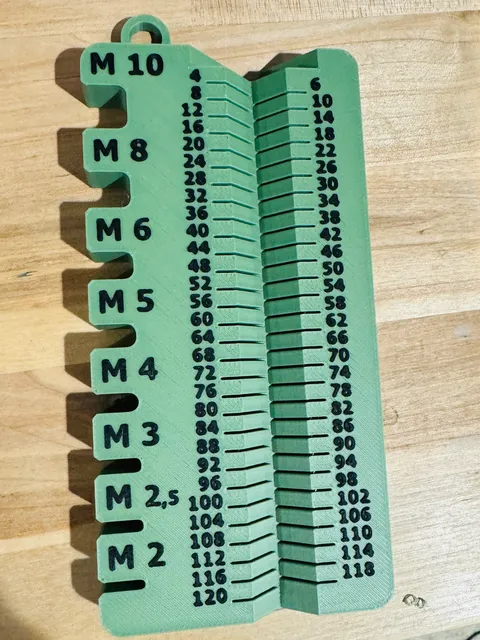

Based on the idea of the user Sneaks i made a measuring tool for metric screws.

This tool can measure M2-M10 screws with a length of 4-120mm

Printing instructions:

0,15 mm layer height
no supports
infill 15%
rectangular infill
2 perimeters

Color change for the letters & numbers

If you dont want to paint the letters you can add a color change with prusaslicer.
