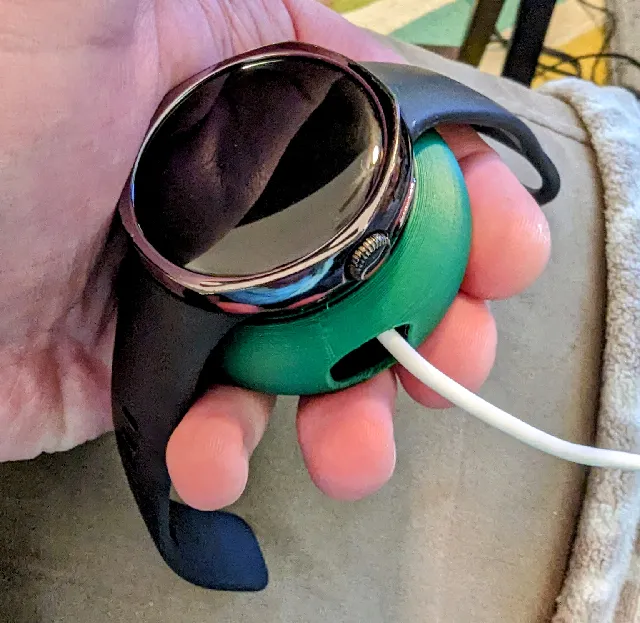

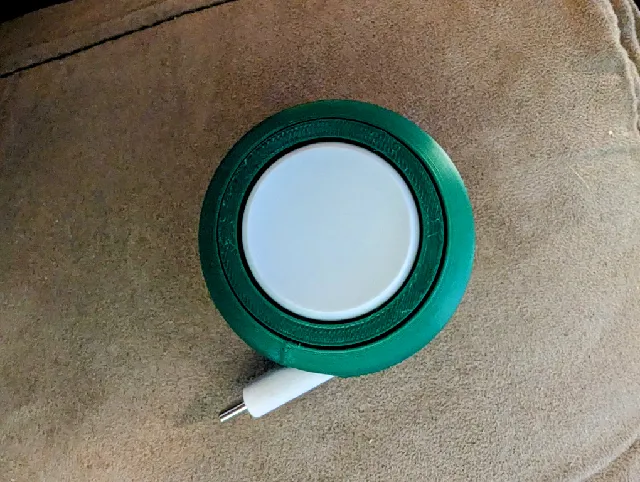

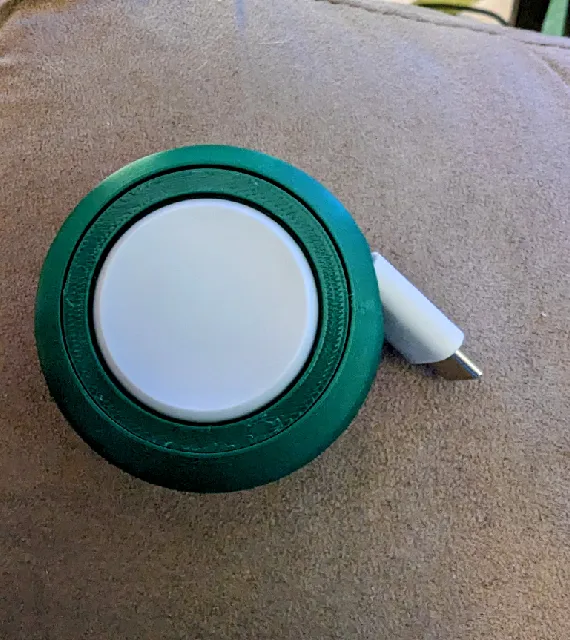

{"data":{"make":{"id":"1156637","created":"2023-09-29T11:35:26.719807+00:00","edited":"2023-09-29T11:36:06.141343+00:00","deleted":null,"isMake":true,"printer":{"id":"336","name":"Bambu Lab X1","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"1214632","handle":"pgastwirth_1214632","verified":false,"dateVerified":null,"publicUsername":"pgastwirth","avatarFilePath":"media/auth/414b38f7-eb8b-4495-8176-c87f51d57b13.jpg","badgesProfileLevel":{"profileLevel":12,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"997950","filePath":"media/comment_images/04/cb7c37-7866-4e6a-a535-a19e675cfa3a/pxl_20230929_1120462142.jpg","rotation":0,"__typename":"CommentImageType"},{"id":"997948","filePath":"media/comment_images/70/0e0921-e073-49cf-8d6d-3f9bfba2c91f/pxl_20230929_1121562262.jpg","rotation":0,"__typename":"CommentImageType"},{"id":"997949","filePath":"media/comment_images/65/0777db-8c3d-4633-8e5d-1fd6947ce3e5/pxl_20230929_112132690mp2.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"ESUN PLA as a test print\nThank you for making this. It took like 30 minutes to print and had no issues. I love it and it solves a problem for when traveling. I also love EDC stuff and I already have a cable in my tech pouch with a cable organizer, but this is so compact. I love it. Getting some special Burnt Titanium Filament to print another","rating":5,"likesCount":1,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"303391","ratingAvg":"4.7619047619","ratingCount":21,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType","model":{"eligibleForNomination":false,"id":"303391","slug":"pixel-watch-gen-1-charger-with-cable-winder-and-pl","name":"Pixel Watch gen 1 charger with cable winder and plug mount (USB-C & USB-A)","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"4.7619047619","myRating":null,"ratingCount":21,"description":"

Updates since initial upload:

Date	Description
02/23/2023	Added a USB-A version, to fit 3rd party adapters. The USB-A version is ~2.3mm thicker, and has been tested for the GEEMEE charger. Thanks to Martin Th. for providing me with the dimensions, and the printing and testing. If anyone tries with a different 3rd party charger and it requires some tuning, let me know.
02/10/2023	Added a version of the HyperJuice Power Adapter clip for EU (with the attachment on the large side)
11/11/2022	Increased tolerance slightly so it prints better (at 0.1mm layer height the two parts could get stuck)
10/27/2022	I added a clip design for the HyperJuice charger
10/26/2022 later	I uploaded the clip for Google's 15W USB-C power adapter. I updated the base of the case to fit on the clip. I also adjusted the vertical tolerance between the core and the ring of the case.
10/26/2022	Initial upload

This new design for the Pixel Watch charger traveling case was inspired by retractable USB cable solutions. It makes for a compact and easy to use solution you can carry around.

Printing:

The case should be printed in place without any support. It is designed to be printed in place.

The power adapter clip I printed with support.

Assembly/disassembly:

Align the core's cable hole with the ring's cable hole.
Feed the cable through all the way, and clip the pad in place.
Use the bottom handle to roll the cable up in the case. Keeping some tension on the cable while doing so can help.
To disassemble, unwind all of the cable, and pop the charging pad out of place by pushing through the bottom hole.

Size comparison with the Pixel Watch charger travel case:

","category":{"id":"28","path":[{"id":"21","name":"Gadgets","nameEn":"Gadgets","description":"Everyone loves smart gadgets. Use 3D printing to make amazing items for audio, photo & video, computers, and phones. Top models are ready to download for free.","__typename":"CategoryType"},{"id":"28","name":"Portable Devices","nameEn":"Portable Devices","description":"Find accessories for iPhones and other smartphones or portable video game consoles like Nintendo Switch. Print holders, mounts and docking station.","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2024-01-14T18:25:34.978046+00:00","firstPublish":"2022-10-26T19:51:31.035441+00:00","datePublished":"2024-01-14T18:25:34.955330+00:00","dateCreatedThingiverse":null,"nsfw":false,"aiGenerated":false,"politicalContent":false,"summary":"Compact pebble shaped traveling case for the Pixel Watch charger, with cable winding feature and power adapter mount.","likesCount":90,"makesCount":26,"liked":null,"printDuration":"8.59","numPieces":7,"weight":"61.00","nozzleDiameters":["0.40"],"usedMaterial":null,"layerHeights":["0.20","0.10"],"mmu":false,"materials":[{"id":"8","name":"PET","__typename":"MaterialTypeType"}],"dateFeatured":null,"downloadCount":430,"displayCount":3257,"filesCount":14,"privateCollectionsCount":72,"publicCollectionsCount":41,"pdfFilePath":"media/prints/303391/pdfs/303391-pixel-watch-gen-1-charger-with-cable-winder-and-plug-mount-usb-c-usb-a-c36026da-1d09-4eaf-b6de-7ff44de99dd5.pdf","commentCount":73,"userGcodeCount":0,"remixCount":4,"canBeRated":false,"addMakePermission":null,"printer":{"id":"1","name":"Prusa MK3/S/S+","__typename":"PrinterTypeType"},"image":{"id":"1294411","filePath":"media/prints/303391/images/2650380_55ff8863-e050-4808-8cfd-2ecb6e3efbe9/pxl_20221026_190315815-1.jpg","rotation":0,"imageHash":"HAgGBgK0aUepaGhUlp6EpwimwHivuPo=","imageWidth":3072,"imageHeight":3589,"__typename":"PrintImageType"},"images":[{"id":"1294411","filePath":"media/prints/303391/images/2650380_55ff8863-e050-4808-8cfd-2ecb6e3efbe9/pxl_20221026_190315815-1.jpg","rotation":0,"imageHash":"HAgGBgK0aUepaGhUlp6EpwimwHivuPo=","imageWidth":3072,"imageHeight":3589,"__typename":"PrintImageType"},{"id":"1294467","filePath":"media/prints/303391/images/2650501_7f0bc81e-ea3b-408e-8de2-6a65cb5be468/pxl_20221027_032059179.jpg","rotation":0,"imageHash":"XBgKDQCJea94d5iHZ3p1iMeGb1v4","imageWidth":2815,"imageHeight":3739,"__typename":"PrintImageType"},{"id":"1293944","filePath":"media/prints/303391/images/2649374_bcc07056-3fd2-4214-83eb-8f024decde09/pxl_20221026_191456489.jpg","rotation":0,"imageHash":"GwgGBYC8Nbg0iYmUaPcmhMCN6s+p","imageWidth":4080,"imageHeight":3072,"__typename":"PrintImageType"},{"id":"1294466","filePath":"media/prints/303391/images/2650503_3400b3b4-e3ff-42f7-99c9-f17d0bd33919/pxl_20221026_230344565.jpg","rotation":0,"imageHash":"WQgKDYKHWJWJaHhgeJpkh6o6j6jz","imageWidth":4080,"imageHeight":3072,"__typename":"PrintImageType"},{"id":"1293946","filePath":"media/prints/303391/images/2649375_14b37023-de9d-4671-a42e-70b662e6a794/pxl_20221026_190404439.jpg","rotation":0,"imageHash":"HQgKBYAop4hudXiAjFaniYWA5AuW","imageWidth":4080,"imageHeight":3072,"__typename":"PrintImageType"},{"id":"1293945","filePath":"media/prints/303391/images/2649376_88aa3dba-9d45-400d-a46b-c7be87ff5b67/pxl_20221026_190345448mp.jpg","rotation":0,"imageHash":"HQgKDQAmmJl2CNc3mIuUWHKAqgqm","imageWidth":3072,"imageHeight":4080,"__typename":"PrintImageType"},{"id":"1628617","filePath":"media/prints/303391/images/3384432_0bda9b94-8d74-4d6c-bde2-84edec2f01cd/pxl_20230223_114055657mp.webp","rotation":0,"imageHash":"3CgKHYT/iWhmh4eYY1dqdoCWCGia","imageWidth":1913,"imageHeight":1440,"__typename":"PrintImageType"},{"id":"1296405","filePath":"media/prints/303391/images/2654513_db2a30cc-95ec-4f7c-88bb-d46b1b32288d/pxl_20221027_190733221.jpg","rotation":0,"imageHash":"3vcJFQBQeY2ZF4qWeXlniH+F+ye4","imageWidth":2446,"imageHeight":3257,"__typename":"PrintImageType"},{"id":"1294465","filePath":"media/prints/303391/images/2650502_40f6d185-7205-4037-9ca5-fb9ddb0427f9/pxl_20221027_032037010.jpg","rotation":0,"imageHash":"oBgKBYB7iIePdniYeWiHh8RJT0ny","imageWidth":4080,"imageHeight":3072,"__typename":"PrintImageType"},{"id":"1293930","filePath":"media/prints/303391/images/2649349_fa05faea-9f72-48bb-9c34-1dd41a1a90d8/roll-up_pixel_watch_charger_2022-oct-26_06-04-30pm-000_customizedview13311289898.png","rotation":0,"imageHash":"kCgGBIBUqFdvd4l3emX5dK1PyA==","imageWidth":2160,"imageHeight":1100,"__typename":"PrintImageType"},{"id":"1293931","filePath":"media/prints/303391/images/2649348_e5088098-a533-430c-bd13-cb4d8a648918/roll-up_pixel_watch_charger_2022-oct-26_06-02-41pm-000_customizedview9952505890.png","rotation":0,"imageHash":"jDgGBIAH9zaJh4iCfoa5eZ+b9w==","imageWidth":2160,"imageHeight":1100,"__typename":"PrintImageType"},{"id":"1294384","filePath":"media/prints/303391/images/2650297_1ece54f1-b9b8-4733-a974-304c65cc532a/roll-up_pixel_watch_charger_2022-oct-27_01-51-49am-000_customizedview9215170165.png","rotation":0,"imageHash":"KggKBIAyIFSKmIiKhpjfh/cukw==","imageWidth":1280,"imageHeight":710,"__typename":"PrintImageType"},{"id":"1294383","filePath":"media/prints/303391/images/2650296_cdf3f96a-e2d2-4d30-9599-45add09fa7df/roll-up_pixel_watch_charger_2022-oct-27_01-16-57am-000_customizedview5089716518.png","rotation":0,"imageHash":"KQgKBIAgMGaaqYiKl4i/l/QL4w==","imageWidth":1280,"imageHeight":710,"__typename":"PrintImageType"}],"imagesCount":13,"tags":[{"name":"cable","id":"172","__typename":"TagType"},{"name":"case","id":"233","__typename":"TagType"},{"name":"clip","id":"339","__typename":"TagType"},{"name":"mount","id":"469","__typename":"TagType"},{"name":"pixel","id":"505","__typename":"TagType"},{"name":"plug","id":"858","__typename":"TagType"},{"name":"power","id":"1987","__typename":"TagType"},{"name":"charger","id":"2037","__typename":"TagType"},{"name":"charging","id":"2048","__typename":"TagType"},{"name":"adapter","id":"2276","__typename":"TagType"},{"name":"watch","id":"2456","__typename":"TagType"},{"name":"compact","id":"3048","__typename":"TagType"},{"name":"travel","id":"3936","__typename":"TagType"},{"name":"winder","id":"5437","__typename":"TagType"},{"name":"outlet","id":"5441","__typename":"TagType"},{"name":"retractable","id":"7846","__typename":"TagType"},{"name":"winding","id":"11691","__typename":"TagType"},{"name":"pixelwatch","id":"109428","__typename":"TagType"}],"thingiverseLink":null,"filesType":"GCODE","previewFile":{"id":"1410853","filePreviewPath":"media/prints/303391/stls/2732534_bde90ea8-5e6d-42a5-ada0-26ec55847be8/roll-up-case_preview.png","__typename":"STLType"},"license":{"id":"3","disallowRemixing":false,"__typename":"LicenseType"},"remixParents":[],"remixDescription":null,"easyprintProjects":[],"__typename":"PrintType","user":{"id":"60647","handle":"Felix","verified":false,"dateVerified":null,"publicUsername":"F\u00e9lix","avatarFilePath":"media/auth/avatars/ed/ed0c86b7-4159-4225-8aa7-317e30337086.jpg","badgesProfileLevel":{"profileLevel":20,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isFollowedByMe":false,"canBeFollowed":true,"designer":false}},"unavailableModel":null,"replies":[]}}}

Pixel Watch gen 1 charger with cable winder and plug mount (USB-C & USB-A)

Pixel Watch gen 1 charger with cable winder and plug mount (USB-C & USB-A)
