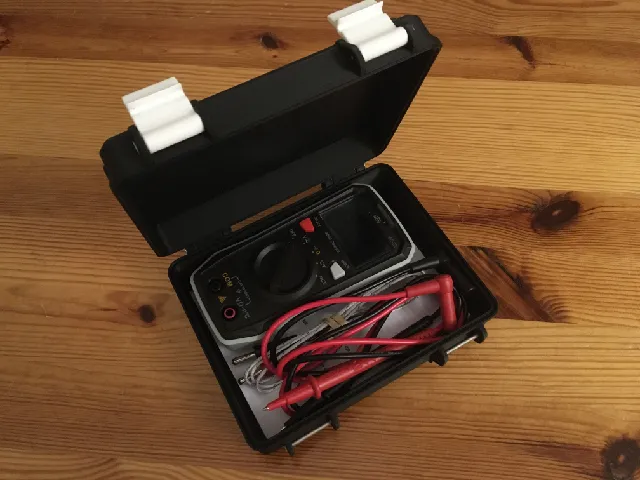

{"data":{"make":{"id":"1129092","created":"2023-09-18T08:11:27.758568+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"620","name":"Prusa MK4","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"965993","handle":"MadeinSwabia","verified":false,"dateVerified":null,"publicUsername":"MadeinSwabia","avatarFilePath":"media/auth/avatars/a4/a45805e9-4ac5-4b5a-a496-026f5948b0af.jpeg","badgesProfileLevel":{"profileLevel":14,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"972795","filePath":"media/comment_images/b6/a5f82b-29cf-4f06-a81b-b2bc07ad37fa/img_1405.jpeg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"Thank you for providing the model. I adjusted the size a bit and now the box fits perfect to my multimeter :)","rating":5,"likesCount":1,"liked":null,"membershipAgeMonths":null,"membershipTier":null,"__typename":"PrintCommentType","model":{"id":"258431","slug":"rugged-box-parametric","name":"Rugged Box (Parametric)","authorship":"remix","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"4.9480381760","myRating":null,"ratingCount":943,"description":"

NO, THERE IS NO WAY TO GET A LICENSE TO SELL THE BOX COMMERCIALLY.
MY DESIGNS WILL ALWAYS BE FREE FOR NON-COMMERIAL USE ONLY.
PLEASE STOP ASKING!

The design is based on the \"Tool box parametric\" by Yanev and provides some more options to parameterize it in Fusion 360.

Support my work

For non-Prusa parts and filaments, check out 3DJake (International, UK, Germany, France).
I'll get a small cut of any order you fulfil using these links (at no additional cost for you \ud83d\ude09).

If you want to support my work directly, you can buy me a coffee.

Also check out my other models.

Remixes

Some of my own remixes:

Important

The current STL files in the download section are all V1 only. If you want the newer design, use the Fusion 360 file and customize it as needed (that's recommended anyway, as there are many parameters to adjust)

Screws

I like these screws which have a nice round head:
Allen hex socket button head screw

Or, if you want no screw head at all, which I personally like even more:
Hex socket set screws

Note: I recommend the stainless steel ones. The blackened ones are oily and have to be cleaned.

Updates

24.08.2022:

V2 release:
- The front and back ribs are changed a bit to not have the full depth for the full height (see V2 details below). Looks much nicer like this (but V1 is still available)
  - The offset of the chamfer for each of them is configurable individually (\u2026RibChamferOffset Parameters). This way you can make the latch easier to open by lowering the offset, or make it less likely to open by accident by increasing the offset and cover the latch completely.
- If you wish you can now increase the size of the hinge to make it more sturdy (but I would not recommend it. It's more a hack\u2026)
- The width of the outer parts of each hinge can now be set to make it more sturdy (only useful when using screws longer than 25 or 30 mm)

18.08.2022:

Added \u201cFLUKE Edition\u201d
- 28.08.2022: Moved to a separate model: https://www.printables.com/model/267524-fluke-rugged-case-with-foam-insert

Changes made

All parts in one F360 file
Contains a seal to print in TPU (will not make it 100% water tight)
Additional parameters:
- The position of the latches and ribs (distance from the sides)
- The diameter and length of the screw (to support different sizes / latch widths)
- The inner chamfer size
- Separate parameters for the widths of the ribs on the side and for the hinges/latches
- Several tolerances to fine tune it for your printer

To assemble it you need 6 screws in total. For the provided STL files you will find the correct size in the folder names.

V2 Release

Here you see the main design change of the second version (V1 on the left, V2 on the right):

","category":{"id":"50","path":[{"id":"48","name":"Hobby & Makers","nameEn":"Hobby & Makers","description":"Are you a maker? Everyone is, be a printer. Upgrade your home workshop and combine different materials and methods of crafting including 3D printing.","__typename":"CategoryType"},{"id":"50","name":"Organizers","nameEn":"Organizers","description":"Tidy up your tools and small parts and keep track of them. Print plastic storage cases, modular organizers, cable spools, drawer system, racks and more.","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2025-02-16T16:04:31.545460+00:00","firstPublish":"2022-08-14T13:38:58.502077+00:00","datePublished":"2025-02-16T16:04:31.504694+00:00","dateCreatedThingiverse":null,"nsfw":false,"aiGenerated":false,"summary":"Fully parameterized rugged tool box","likesCount":27033,"makesCount":1148,"liked":null,"printDuration":null,"numPieces":0,"weight":null,"nozzleDiameters":null,"usedMaterial":null,"layerHeights":null,"mmu":false,"materials":[],"dateFeatured":null,"downloadCount":106445,"displayCount":495281,"filesCount":16,"privateCollectionsCount":18758,"publicCollectionsCount":12863,"pdfFilePath":"media/prints/258431/pdfs/258431-rugged-box-parametric-70d22129-fe4c-4120-b523-8563d4bdeec5.pdf","commentCount":1460,"userGcodeCount":1,"remixCount":740,"canBeRated":false,"printer":null,"image":{"id":"1163583","filePath":"media/prints/258431/images/2362183_fd1aff76-7db1-4c13-9908-66b64e2ff041/rugged-box-parametric-01.png","rotation":0,"imageHash":"6GgSHor4p3eJiHh9hnZmuGiYBnZiYCc=","imageWidth":1545,"imageHeight":1389,"__typename":"PrintImageType"},"images":[{"id":"1163583","filePath":"media/prints/258431/images/2362183_fd1aff76-7db1-4c13-9908-66b64e2ff041/rugged-box-parametric-01.png","rotation":0,"imageHash":"6GgSHor4p3eJiHh9hnZmuGiYBnZiYCc=","imageWidth":1545,"imageHeight":1389,"__typename":"PrintImageType"},{"id":"1163584","filePath":"media/prints/258431/images/2362185_8341908c-419a-471f-90d6-bead7e097d3e/rugged-box-parametric-02.png","rotation":0,"imageHash":"6lgOJYzol4domHd/d4Z5eRiJgJEI","imageWidth":1779,"imageHeight":1206,"__typename":"PrintImageType"},{"id":"1163585","filePath":"media/prints/258431/images/2362184_69fb9e9f-2124-4dd5-8b65-2979907de7fc/rugged-box-parametric-03.png","rotation":0,"imageHash":"52gSHYrHp5h6h3iPdmaIeSaLYLII","imageWidth":1695,"imageHeight":1181,"__typename":"PrintImageType"},{"id":"1163582","filePath":"media/prints/258431/images/2362182_0c7f6896-eedf-4cab-af84-2e9919494498/rugged-box-parametric-04.png","rotation":0,"imageHash":"KXkSHYzIp5eZd3h/hmaHiRhqgKEG","imageWidth":1494,"imageHeight":1110,"__typename":"PrintImageType"},{"id":"1163581","filePath":"media/prints/258431/images/2362177_cde97a46-33b0-44aa-835c-e7b6b54b3913/f360-parameters.png","rotation":0,"imageHash":"OggGA4DAVt1niDdp/7v3v3s=","imageWidth":1410,"imageHeight":678,"__typename":"PrintImageType"},{"id":"1150349","filePath":"media/prints/258431/images/2335286_1ac84c3e-5e8a-4a6f-b9e0-bf84e7acc57d/img_3031.jpg","rotation":0,"imageHash":"6sYNJgb2iaiGeNhoZ6h3eoaH9mhtj9Y=","imageWidth":2794,"imageHeight":3050,"__typename":"PrintImageType"},{"id":"1150354","filePath":"media/prints/258431/images/2335290_47dd0c1b-a18d-4d52-8111-e11b731b1f42/img_3030.jpg","rotation":0,"imageHash":"psYNJYb2mZhGmJhah2aIh/dUfE/F","imageWidth":4899,"imageHeight":3763,"__typename":"PrintImageType"},{"id":"1150347","filePath":"media/prints/258431/images/2335282_7b7579ce-b0d3-465d-abdd-7345fa927107/img_3022.jpg","rotation":0,"imageHash":"rMYNLob4t5iNZod/hmWHmGd36IiPfvg=","imageWidth":2526,"imageHeight":2106,"__typename":"PrintImageType"},{"id":"1150348","filePath":"media/prints/258431/images/2335288_aef3d39f-1d74-4b2b-b8a6-b274a2c481c3/img_3025.jpg","rotation":0,"imageHash":"q8YNLobnt5eMdod/hmaHl2h314d/bfg=","imageWidth":2536,"imageHeight":2192,"__typename":"PrintImageType"}],"tags":[{"name":"parametric","id":"28","__typename":"TagType"},{"name":"water","id":"29","__typename":"TagType"},{"name":"box","id":"65","__typename":"TagType"},{"name":"organizer","id":"66","__typename":"TagType"},{"name":"case","id":"233","__typename":"TagType"},{"name":"storage","id":"1916","__typename":"TagType"},{"name":"storagebox","id":"2017","__typename":"TagType"},{"name":"toolbox","id":"2292","__typename":"TagType"},{"name":"seal","id":"2583","__typename":"TagType"},{"name":"organize","id":"5719","__typename":"TagType"},{"name":"ruggedcase","id":"13569","__typename":"TagType"},{"name":"rugged","id":"13571","__typename":"TagType"},{"name":"watertight","id":"15539","__typename":"TagType"},{"name":"parameterized","id":"26942","__typename":"TagType"},{"name":"parameterizable","id":"44747","__typename":"TagType"}],"thingiverseLink":null,"filesType":null,"previewFile":{"id":"1207177","filePreviewPath":"media/prints/258431/stls/2362187_1f17ab7d-f438-40c1-ba2d-19d44706b892/rugged-box-box-120x70x4028_preview.png","__typename":"STLType"},"license":{"id":"4","disallowRemixing":false,"__typename":"LicenseType"},"remixParents":[{"id":"418438","modelId":"39729","modelName":"Tool box parametric","modelAuthor":{"id":"76533","handle":"Yanev","verified":false,"publicUsername":"Yanev","__typename":"UserType"},"model":{"id":"39729","name":"Tool box parametric","slug":"tool-box-parametric","datePublished":"2023-02-14T14:44:12.995957+00:00","image":{"id":"200793","filePath":"media/prints/39729/images/418313_4e9f1cf7-39c0-4436-9b51-65c2dc659efe/rsz_img_20201001_202406.jpg","rotation":0,"imageHash":"WUoKRIYKeZqPp3eEjHUHe2OgNw==","imageWidth":3000,"imageHeight":1688,"__typename":"PrintImageType"},"club":false,"authorship":"author","license":{"id":"4","name":"Creative Commons \u2014 Attribution \u2014 Noncommercial \u2014 Share Alike","disallowRemixing":false,"__typename":"LicenseType"},"eduProject":null,"__typename":"PrintType"},"url":null,"urlAuthor":null,"urlImage":null,"urlTitle":null,"urlLicense":null,"urlLicenseText":null,"__typename":"PrintRemixType"}],"remixDescription":"

More parameters

","__typename":"PrintType","user":{"id":"3307","handle":"Whity","verified":false,"dateVerified":null,"publicUsername":"Whity","avatarFilePath":"media/auth/avatars/cb/cbaf82d9-d9b5-4793-8bc0-4fa4f4e06e59.jpeg","badgesProfileLevel":{"profileLevel":21,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isFollowedByMe":false,"canBeFollowed":true,"designer":false}},"unavailableModel":null,"replies":[]}}}
