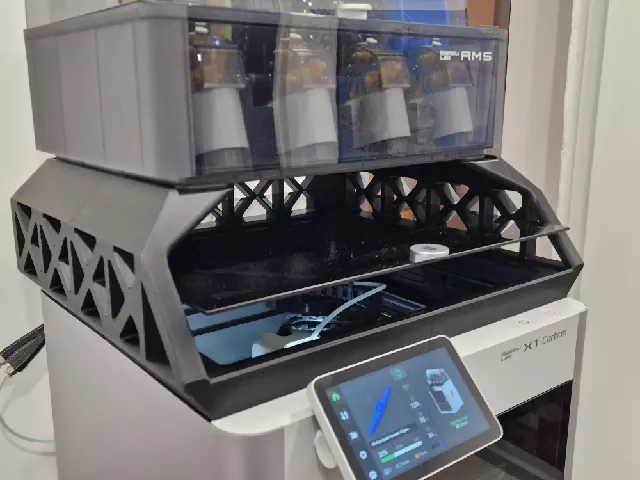

{"data":{"make":{"id":"1127958","created":"2023-09-17T20:02:48.446273+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"336","name":"Bambu Lab X1","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"1158731","handle":"Josuanbn","verified":false,"dateVerified":null,"publicUsername":"Josuanbn","avatarFilePath":"media/auth/avatars/e7/e75e4f74-dc85-47d7-b279-9c6dd1efe16b.png","badgesProfileLevel":{"profileLevel":13,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"971788","filePath":"media/comment_images/e6/d9a510-ec6f-401f-8f4e-cfa8216b6d42/1000023804.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"Printed with your emf files with Overture PLA Professional, fits perfect. Thanks a lot for the model.","rating":5,"likesCount":2,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"557492","ratingAvg":"4.8906250000","ratingCount":64,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType","model":{"eligibleForNomination":false,"id":"557492","slug":"v2-vented-remix-updated-bambu-lab-ultimate-p1p-p1s","name":"V2 Vented Remix - Updated Bambu Lab Ultimate P1P P1S X1-C Riser+AMS Stand - Community Build!","authorship":"remix","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"4.8906250000","myRating":null,"ratingCount":64,"description":"

Simple remix that adds ledges half way up the riser so the glass will slide in on top of for easy ventilation when printing PLA. Add LED lighting or stick cheap under cabinet lights to the bottom of the AMS for a simple lighting solution.

PRINT INSTRUCTIONS:

Recommend printing the pieces on their left and right faces respectively. Printed in PLA+ with 3 walls, 6 top/bottom layers and 15% gyroid, supports are recommended. I also added modifiers to the tabs and set them to 4 walls 40% gyroid for piece of mind, but this shouldn't be necessary. Check the .3mf files to view my personal print settings if unsure.

PRINT FROM HANDY APP:

For files ready to print remotely from the handy app, see: https://makerworld.com/en/models/18875#profileId-17654

OPTIONAL ADD-ONS:

Shelf inserts for users who printed the previous version without the top glass shelf
Hooked inserts to hang up to 10 buildplates
Spool Holder
Accessory inserts for various glues
Accessory inserts for BL Scraper
Accessory inserts for filament snips
More to come (Comment what you would like to see next)

**All item holder inserts print in the orientation which they were uploaded with no supports. If you're having trouble getting the radius's to print correctly on the ones that print upside down, see: Variable Layer Height Accessories.3mf

If you enjoy this model, please share a make so others can see real examples other than mine, it's appreciated by all!

THANKYOU @rockchewer for doing all the legwork and coming up with this awesome mod!!

THANKYOU Joel Telling @3dprintnerd for the awesome review: https://youtu.be/NYB1s-goaNc?si=l9_kPGnI9GACturo

----------------UPDATES----------------

Update 8/22/2023: .3mf Files uploaded for those who asked. Make sure you are using a textured pei sheet or change the sheet accordingly. I recommend leaving the door open as I disable the chamber fans and set my bed temp to 65c. This can be changed to your liking if desired.

Update 8/31/2023: It was brought to my attention by a user that the kickstarter AMS has a wider base than newer versions. Kickstarter AMS file uploaded with an extra \u00bd\" per side to accommodate per his request. Big thanks to Brett C. for noticing this AND for being the first to test it. Kickstarter AMS users should make sure to download the kickstarter version.

Update 9/3/2023: Thanks to @kacpi_946344 for pointing out that the model had a floating edge. Updated the STL's and 3MF's to address this issue for all users, there should no longer be a floating edge that is not contacting the build surface. I have also updated all of the plugs to account for this very slight difference in thickness.

Update 9/23/2023: Had a user reach out to me having a tough time with cooling/layer overlap, this problem made it hard for them to print a clean corner at the radius of the rear pieces. After trying to tweak some settings and still not being able to get it to print right, I uploaded a chamfered edge model for them to try. Thanks to @sevenmarc for letting me know and working with me to create an easier to print edge. If you experience any of this type of issue (or just prefer the aesthetic) and cannot seem to tune the problem away, try using the chamfered rear edge files.

","category":{"id":"136","path":[{"id":"1","name":"3D Printers","nameEn":"3D Printers","description":"Upgrading and improving your 3D printer couldn't be easier - no matter whether you're looking for functional or aesthetic modifications. Discover the best improvements.","__typename":"CategoryType"},{"id":"136","name":"Bambu Lab Parts & Upgrades","nameEn":"Bambu Lab Parts & Upgrades","description":"Free parts and upgrades for your Bambu Lab 3D printer!","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2024-01-12T22:12:35.899154+00:00","firstPublish":"2023-08-19T14:51:33+00:00","datePublished":"2024-01-12T22:12:35.875499+00:00","dateCreatedThingiverse":null,"nsfw":false,"aiGenerated":false,"politicalContent":false,"summary":"Remix of riser with tabs to slide the top glass into when not in use or ventilation is needed","likesCount":1353,"makesCount":73,"liked":null,"printDuration":null,"numPieces":0,"weight":null,"nozzleDiameters":null,"usedMaterial":null,"layerHeights":null,"mmu":false,"materials":[],"dateFeatured":null,"downloadCount":7336,"displayCount":43297,"filesCount":28,"privateCollectionsCount":1162,"publicCollectionsCount":838,"pdfFilePath":"media/prints/557492/pdfs/557492-v2-vented-remix-updated-bambu-lab-ultimate-p1p-p1s-x1-c-riserams-stand-community-build-cf94a728-f856-4ce4-a850-5d882a92954d.pdf","commentCount":166,"userGcodeCount":0,"remixCount":10,"canBeRated":false,"addMakePermission":null,"printer":null,"image":{"id":"2128349","filePath":"media/prints/557492/images/4482708_12c7b792-884d-4b74-903c-17ab5331d79d/20230820_180700.jpg","rotation":0,"imageHash":"WggKJQT5qYyppoaoaGtJWc9594uH","imageWidth":3000,"imageHeight":4000,"__typename":"PrintImageType"},"images":[{"id":"2128349","filePath":"media/prints/557492/images/4482708_12c7b792-884d-4b74-903c-17ab5331d79d/20230820_180700.jpg","rotation":0,"imageHash":"WggKJQT5qYyppoaoaGtJWc9594uH","imageWidth":3000,"imageHeight":4000,"__typename":"PrintImageType"},{"id":"2128348","filePath":"media/prints/557492/images/4482707_4adbde82-8a3a-4240-9567-18e90d0220e9/20230820_183412.jpg","rotation":0,"imageHash":"E/gFDQJGqHt4Cfjop4l2ymqPmvrX","imageWidth":3000,"imageHeight":4000,"__typename":"PrintImageType"},{"id":"2128347","filePath":"media/prints/557492/images/4482710_be2865d0-4614-4407-93bc-5a5ad173522d/20230820_180640.jpg","rotation":0,"imageHash":"WBgKHYSlhXeFi4l9iddogKuPmvqZ","imageWidth":4000,"imageHeight":3000,"__typename":"PrintImageType"},{"id":"2128356","filePath":"media/prints/557492/images/4482709_fd7e7d04-c826-4f02-9b15-c8b87712a5d6/20230820_183530.jpg","rotation":0,"imageHash":"FfgJBYIUdmagmolqeoenpD7Pdvqq","imageWidth":4000,"imageHeight":3000,"__typename":"PrintImageType"},{"id":"2128350","filePath":"media/prints/557492/images/4482711_941a0d12-a278-4f48-8682-153f590cc70e/20230820_183611.jpg","rotation":0,"imageHash":"EPgFDQLCl6+oSLmJim53SN5/2v7X","imageWidth":3000,"imageHeight":4000,"__typename":"PrintImageType"},{"id":"2135945","filePath":"media/prints/557492/images/4499176_894b0a54-7e69-415c-9bad-d732d31fc2c0/20230822_181758.jpg","rotation":0,"imageHash":"WRgKHQRZh3+K+ImneHeYN6eaf2n4","imageWidth":3000,"imageHeight":4000,"__typename":"PrintImageType"},{"id":"2140976","filePath":"media/prints/557492/images/4510100_2c08a90b-d2e2-4da4-8945-60210f3ab880/20230824_210249.jpg","rotation":0,"imageHash":"GQgODQC/ZZt4iHeXhoeIh3+r+OaJ","imageWidth":3000,"imageHeight":4000,"__typename":"PrintImageType"},{"id":"2140977","filePath":"media/prints/557492/images/4510101_59e72d9e-90b4-4ec1-9533-50b442e0933a/20230824_210939.jpg","rotation":0,"imageHash":"VBgODQBvNJ1odneYaIZ4iHsvufiC","imageWidth":3000,"imageHeight":4000,"__typename":"PrintImageType"},{"id":"2144991","filePath":"media/prints/557492/images/4519000_8453cd42-69a4-4ecb-81da-f59912a4754d/20230825_055914.jpg","rotation":0,"imageHash":"FQgKDQJvZJhX9nrWZmKIie/L99+N","imageWidth":3000,"imageHeight":4000,"__typename":"PrintImageType"},{"id":"2144990","filePath":"media/prints/557492/images/4518999_059e961d-1e76-41cb-8ed6-b7b7d632617f/20230825_055850.jpg","rotation":0,"imageHash":"GwgODQKwiG6Xx4poh3h3drC3CJqK","imageWidth":3000,"imageHeight":4000,"__typename":"PrintImageType"},{"id":"2578126","filePath":"media/prints/557492/images/5496464_8bd80ce3-14c9-40f9-b5d2-185ee1ae055e_2151fdaf-e3a6-402b-b11a-9749bd962570/screenshot-2023-12-30-161155.png","rotation":0,"imageHash":"UxgKDIIHnZJ5hoZ5eHkIeZTQZw==","imageWidth":488,"imageHeight":290,"__typename":"PrintImageType"},{"id":"2170137","filePath":"media/prints/557492/images/4573283_672e8f89-f09b-47cc-9c2a-e57d78e7f805/fb_img_1693743966781.jpg","rotation":0,"imageHash":"GDkGHYaXiGnPcVmIaXl1l8DCQToK","imageWidth":1080,"imageHeight":810,"__typename":"PrintImageType"},{"id":"2170791","filePath":"media/prints/557492/images/4574709_dc69088e-651e-45db-b619-f044c92d7371/slicer.jpg","rotation":0,"imageHash":"0/cFDIIHQ4WmhneDeWjxefeCVg==","imageWidth":1280,"imageHeight":720,"__typename":"PrintImageType"},{"id":"2232814","filePath":"media/prints/557492/images/4711403_79efcfbc-b748-426b-9fd0-ee4d56c998ca_6b24033c-85a6-4f38-9fa6-9f2c7e9a3713/untitled123213.jpg","rotation":0,"imageHash":"XOcFDIJlGB18RV11lfP+lbh/hw==","imageWidth":997,"imageHeight":555,"__typename":"PrintImageType"},{"id":"2123169","filePath":"media/prints/557492/images/4471756_89a4f617-12e6-4dea-b07e-02f2b796b467/untitled1.png","rotation":0,"imageHash":"N/gJFIKnp5d1iXiPh4mPmNIvuA==","imageWidth":2030,"imageHeight":1216,"__typename":"PrintImageType"},{"id":"2123170","filePath":"media/prints/557492/images/4471755_ec45e2ee-eef8-46d5-b1c0-b5a336255874/untitled.png","rotation":0,"imageHash":"DAgGDwIIhXqNZYeId2iJZ5h3hvI4N48D","imageWidth":1381,"imageHeight":1380,"__typename":"PrintImageType"}],"imagesCount":16,"tags":[],"thingiverseLink":null,"filesType":null,"previewFile":{"id":"2423543","filePreviewPath":"media/prints/557492/stls/4574068_690b2c93-b58f-49e7-9efe-416e4946cf88/new-left-front-pla_preview.png","__typename":"STLType"},"license":{"id":"7","disallowRemixing":false,"__typename":"LicenseType"},"remixParents":[{"id":"396311","modelId":"535282","modelName":"V2 Update Bambu Lab Ultimate P1P X1-C Riser+AMS Stand - Community Build!","modelAuthor":{"id":"195578","handle":"RockChewer","verified":false,"publicUsername":"RockChewer","__typename":"UserType"},"model":{"id":"535282","name":"V2 Update Bambu Lab Ultimate P1P X1-C Riser+AMS Stand - Community Build!","slug":"v2-update-bambu-lab-ultimate-p1p-x1-c-riserams-sta","datePublished":"2023-07-25T04:00:51+00:00","image":{"id":"2052525","filePath":"media/prints/535282/images/4316848_ddb40c25-4e19-48b9-b995-38de85f3b8bc/tempimageljktjp.gif","rotation":0,"imageHash":"2ygODAKW+JaoeHenZ3jLALRyAw==","imageWidth":2268,"imageHeight":4032,"__typename":"PrintImageType"},"club":false,"authorship":"remix","license":{"id":"7","name":"Creative Commons \u2014 Public Domain","disallowRemixing":false,"__typename":"LicenseType"},"eduProject":null,"__typename":"PrintType"},"url":null,"urlAuthor":null,"urlImage":null,"urlTitle":null,"urlLicense":null,"urlLicenseText":null,"__typename":"PrintRemixType"}],"remixDescription":"

Added ledges for venting glass
Added inserts to hold glass/plates
Edited geometry to fix unsupported edge complaint
Added Inserts to hold additional accessories

","easyprintProjects":[],"__typename":"PrintType","user":{"id":"213893","handle":"FatTony","verified":false,"dateVerified":null,"publicUsername":"FatTony","avatarFilePath":"media/auth/avatars/8f/8f0e5ac5-3592-4b26-b8c9-622e2f8697ee.jpg","badgesProfileLevel":{"profileLevel":18,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isFollowedByMe":false,"canBeFollowed":true,"designer":false}},"unavailableModel":null,"replies":[]}}}

V2 Vented Remix - Updated Bambu Lab Ultimate P1P P1S X1-C Riser+AMS Stand - Community Build!

V2 Vented Remix - Updated Bambu Lab Ultimate P1P P1S X1-C Riser+AMS Stand - Community Build!
