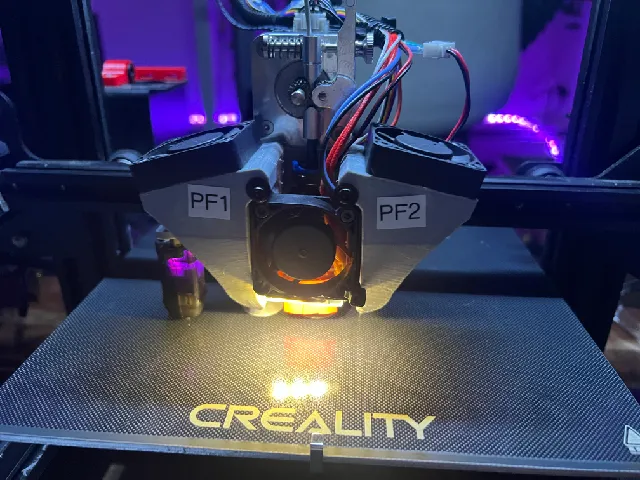

{"data":{"make":{"id":"1126037","created":"2023-09-17T04:27:22.118203+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"292","name":"Creality Ender 3 V2","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"366288","handle":"aspoels_366288","verified":false,"dateVerified":null,"publicUsername":"aspoels","avatarFilePath":"media/auth/avatars/d6/d6711fe3-b7da-4097-b786-f8660daf2372.jpeg","badgesProfileLevel":{"profileLevel":16,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"969881","filePath":"media/comment_images/ea/6d7736-f832-4ab0-9630-6a83b136e7f4/img_4715.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"Fits perfectly, had to adjust the offset of the crtouch but after that its perfect","rating":5,"likesCount":0,"liked":null,"membershipAgeMonths":null,"membershipTier":null,"__typename":"PrintCommentType","model":{"id":"225399","slug":"remixed-creality-spider-hotend-lightweight-dualfan","name":"REMIXED Creality Spider hotend - Lightweight DualFanShroud for Micro Swiss DD Extruder","authorship":"remix","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"5.0000000000","myRating":null,"ratingCount":1,"description":"

This is a remixed fan duct model that accommodates the larger size of the Creality spider hotend as well as a small change to the autobed leveling attachment piece. The original model seems to work well with a CRtouch but seems to be missing some distance to read the bed correctly.

Updates to this model

Updated the main backplate to accommodate for bltouch.
Updated fan ducts to accommodate the extra length of the Creality Spider hotend.

You can print out all models with no supports.

The backplate has built in supports for the bltouch attachment. I did this to save on time and material. You will need to bridge so make sure your fan speeds are up to 100% on the bridging.

Offset Settings

X -54.14
Y -10.0
Z -0.67 (ONLY WITH A BLTOUCH AND SPIDER HOTEND)

Original can be found here. https://www.printables.com/model/178930-lightweight-dualfanshroud-for-micro-swiss-dd-extru by mathiasl
