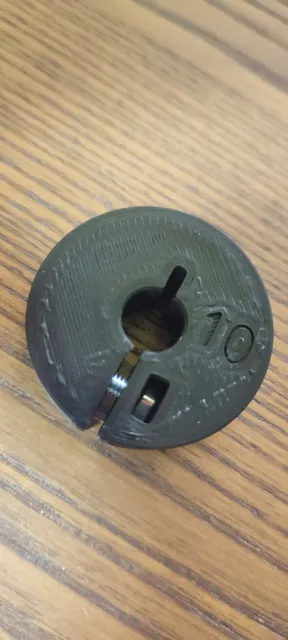

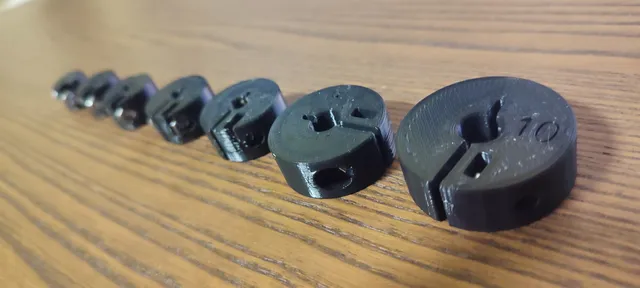

{"data":{"make":{"id":"1081081","created":"2023-08-29T19:29:26.820030+00:00","edited":"2023-08-29T19:44:55.324723+00:00","deleted":null,"isMake":true,"printer":{"id":"198","name":"Raise3D Pro2","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"352062","handle":"LucasS","verified":false,"dateVerified":null,"publicUsername":"Lucas S.","avatarFilePath":"media/auth/avatars/72/72aabf3d-5d5e-419d-9784-924803c13ab3.gif","badgesProfileLevel":{"profileLevel":13,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"927687","filePath":"media/comment_images/bf/dafc9c-8ee0-4056-a3b2-628b6753a8d2/cut_depth_stop.png","rotation":0,"__typename":"CommentImageType"},{"id":"927688","filePath":"media/comment_images/09/927ff2-8436-4f7b-aeac-4e8b5315fee4/img_20230829_211818.jpg","rotation":0,"__typename":"CommentImageType"},{"id":"927689","filePath":"media/comment_images/ab/6b6433-215f-4d0e-b7c9-06bf890b8e63/img_20230829_211801.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"nice model, I modified it for M4 hex nuts (to be pushed in) and made versions from 2, 3, 4, 5, 6, 8 and 10mm. plus i made a parametric file for fusion. (you just need to change the variable Bohrer_DM and got your desired depth-stop).\n\u200ahttps://www.printables.com/de/model/567451-depth-stop-for-drill-bits","rating":5,"likesCount":0,"liked":null,"membershipAgeMonths":0,"membershipTier":null,"__typename":"PrintCommentType","model":{"id":"103236","slug":"drilling-bounding-ring","name":"Drilling Bounding Ring","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"4.9240506329","myRating":null,"ratingCount":79,"description":"

When I needed a depth limiter for the drill, I downloaded models from other authors. These are interesting models with a collet lock. But in fact, they were useless, because the fixation on the drill was insufficient and the limiters simply slipped, especially when working with the hammer drill. So I created my own drilling depth limiter design.

I made three of the most popular diameters for drilling with a hammer drill 6-8-10mm. However, you can use the source file to modify it for yourself.

The model is printed without support, print in place.

To complete it, you will need: M4x12mm Hexagon Socket Screw and M4x7x2 Square Nut.

Parts links below:

M4x12mm Hexagon Socket Screw

M4x7x2 Square Nut

Multi-function 18 In 1 Universal Wrench Keychain

Useful Links:

Heating Tube 12V/24V 70W High Temperatu

Noulei silk PLA Filament

Trianglelab Highall-metal V6 Hotend

Deburring Burr

Print Settings

Rafts:

Supports:

Resolution:

0,2

Infill:

Filament:
PolyMaker PLA

Notes:

The filling of 15% in my case was sufficient for the material to retain strength and be elastic when the lock is compressed.
