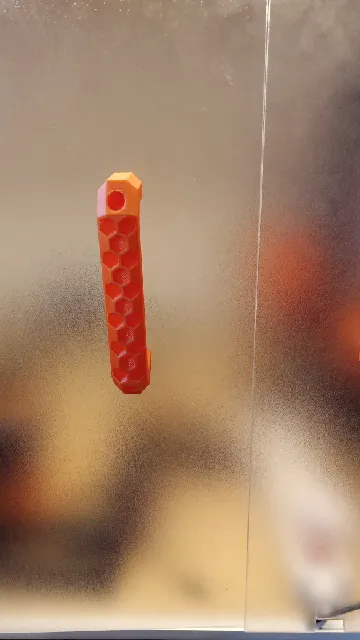

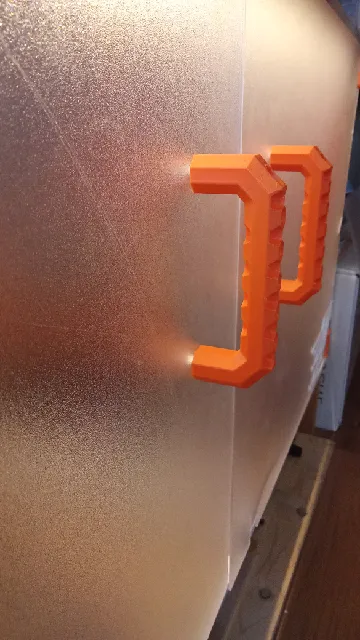

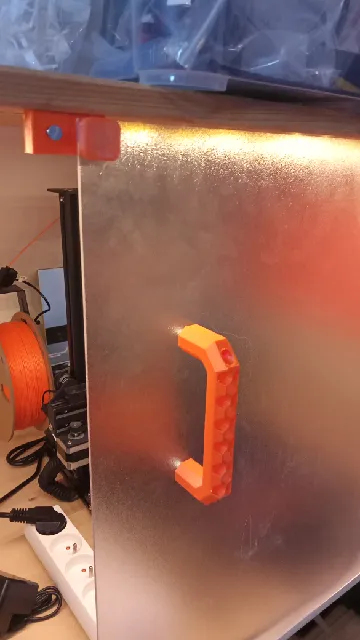

{"data":{"make":{"id":"1045670","created":"2023-08-14T06:20:23.585371+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"357","name":"Wanhao Duplicator D12","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"1067661","handle":"Pilou_1067661","verified":false,"dateVerified":null,"publicUsername":"Pilou","avatarFilePath":"media/auth/b8dc70f1-5741-427c-b61e-09e24f668c75.jpg","badgesProfileLevel":{"profileLevel":9,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"895211","filePath":"media/comment_images/b7/497186-2b64-44e0-93ca-b0c4c1bb609b/img20230814081541_00.jpg","rotation":0,"__typename":"CommentImageType"},{"id":"895210","filePath":"media/comment_images/71/068c34-5d08-4933-bf2f-5cbe550ace6b/img20230814081531_00.jpg","rotation":0,"__typename":"CommentImageType"},{"id":"895209","filePath":"media/comment_images/fa/e3a12b-72b5-4370-bc18-8f3631f627a5/img20230814081523_00.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"Thanks you for this nice model... \n\nHotend 200\u00b0\nBed 60\u00b0\nPrinted with supports \nPla premium orange wanhao.","rating":5,"likesCount":1,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"423500","ratingAvg":"4.9764705882","ratingCount":85,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType","model":{"eligibleForNomination":false,"id":"423500","slug":"hex-pattern-handle-collection","name":"Hex Pattern Handle Collection","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"4.9764705882","myRating":null,"ratingCount":85,"description":"

This is a stylish hex pattern design handle that is compatible with M3, M4 and M5 bolts, and comes in 6 designs for each.

The M3 version of the handle has the perfect width for 1515 extrusion, while the M4 version is ideal for 2020 extrusion, M5 version for 3030.

Print Settings:

Material: PLA
Layer height: 0.2mm
Supports: no
For a clean print, Please slice design A only as shown in the image below.

Updates:

[28.03.2023]

Added a step file.

[18.03.2023]

Added M5 version.
Added 3 new designs, D, E, and F.

My Other Handles:
https://www.printables.com/@BaGooN/collections/1174222
