The display is 6,9 inch big (150x90 mm) and it's designed to hang it on the wall.

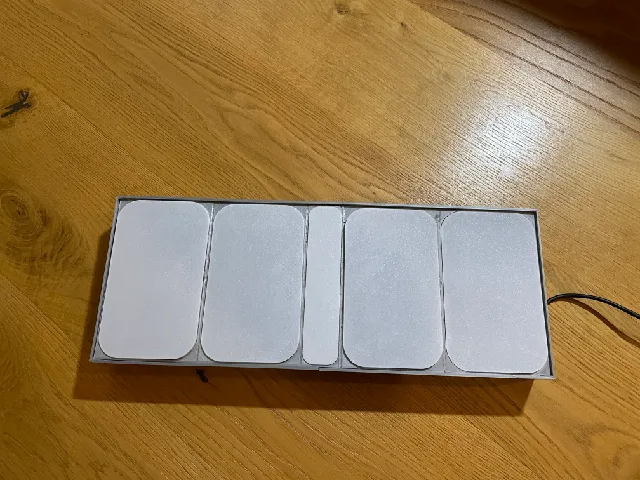

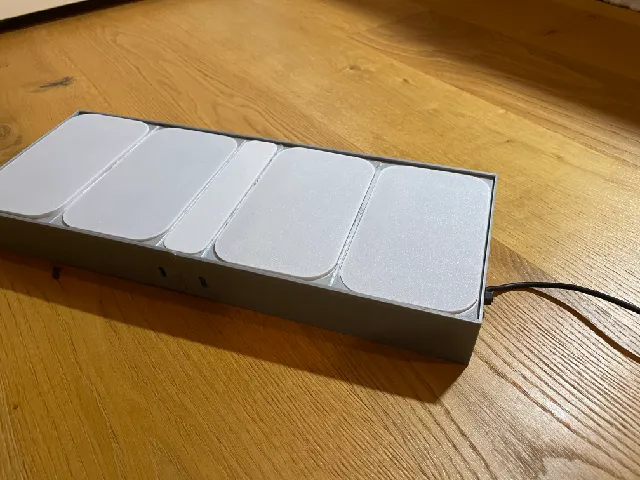

If you print four big and one small piece as I did you can use it as an watch.

If you want to put two displays together you have to glue them together.

ELECTRONICS:

1x Arduino NANO

1x Real Time Clock RTC DS3231

1x Active Buzzer

86x 5mm LED's (color of your choice)

Installation:

You have to print out your variation of displays.

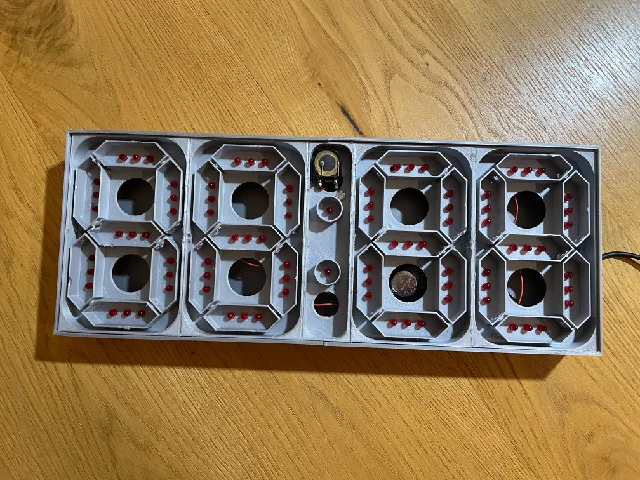

Push the LED's in the holes of the case

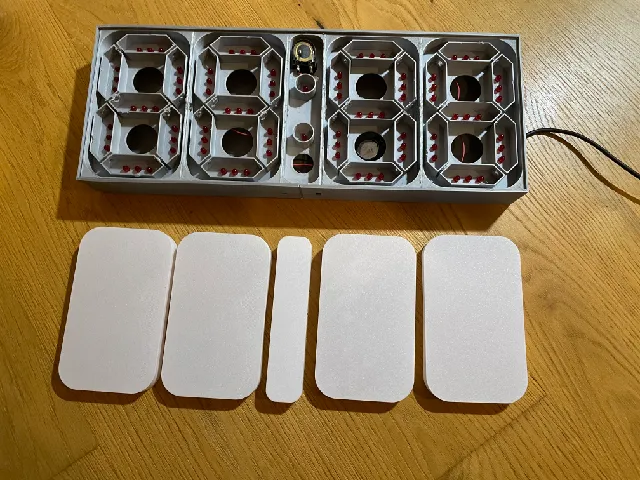

Put the cover on the case
Wire the LED's ground from each segment to a different digital output of the Arduino
Wire all the same pieces of the number to the same digital output (e.g. the top LED's of the first segment to the top LED's of the second segment and so on\u2026)
Upload the code to the Arduino and you'r good to go :)

You can download the code in \u201cFiles\u201d or copy it down below:

#include \"SevSeg.h\"\n#include \"RTClib.h\"\n\nSevSeg sevseg; //Instantiate a seven segment controller object\nRTC_DS1307 rtc;\n\nbool pnkt = false;\nunsigned long secprev = 0;\nunsigned long minprev = 0;\nunsigned int pausen[12] = {475,525,580,635,700,755,805,855,905,965,1015,1065};\nbool count = true;\nint count2 = 100;\nint bispause;\nint BPS = 150;\n\nvoid setup() {\n  Serial.begin(57600);\n  while (!Serial);\n  if (! rtc.begin()) {\n    Serial.println(\"Couldn't find RTC\");\n    Serial.flush();\n    while (1) delay(10);\n  }\n  byte numDigits = 4;\n  byte digitPins[] = {5, 4, 3, 2};\n  byte segmentPins[] = {6, 7, 8, 9, 10, 11, 12};\n  bool resistorsOnSegments = true; // 'false' means resistors are on digit pins\n  byte hardwareConfig = N_TRANSISTORS; // See README.md for options\n  bool updateWithDelays = false; // Default 'false' is Recommended\n  bool leadingZeros = false; // Use 'true' if you'd like to keep the leading zeros\n  bool disableDecPoint = true; // Use 'true' if your decimal point doesn't exist or isn't connected\n  pinMode(13, OUTPUT);\n\n  //rtc.adjust(DateTime(2014, 1, 21, 3, 0, 0));     //RTC time adjust (Y, M, D, H, M, S)\n  \n  sevseg.begin(hardwareConfig, numDigits, digitPins, segmentPins, resistorsOnSegments,\n  updateWithDelays, leadingZeros, disableDecPoint);\n  sevseg.setBrightness(100);\n  amogus();\n  amogus(); \n  amogus(); \n}\n\nvoid loop() {\n  DateTime time = rtc.now();\n  \n  if(time.second() != secprev) {   //every second\n    count2++;\n    secprev = time.second();\n    \n    if(count2 >= 20 && count2 < 30 && bispause < 100){\n      digitalWrite(13, LOW);\n      sevseg.setNumber(bispause);\n    }\n    else{\n      pnkt = !pnkt;\n      if(pnkt){\n        digitalWrite(13, HIGH);\n      }\n      else{\n        digitalWrite(13, LOW);\n      }\n      sevseg.setNumber(time.hour()*100+time.minute());\n    }\n  }\n\n  if(time.minute() != minprev){\n    minprev = time.minute();\n    bispause = 100;\n    for(int i = 0; i < sizeof(pausen); i++){\n        if(pausen[i] - time.hour()*60 - time.minute() > 0 && pausen[i] - time.hour()*60 - time.minute() < bispause){  \n          bispause = pausen[i] - time.hour()*60 - time.minute();\n        }\n        if(pausen[i] == time.hour()*60 + time.minute()){\n          amogus();  \n        }\n      }\n    count2 = 0;  \n  }\n\n  sevseg.refreshDisplay(); // Must run repeatedly\n}\n\nvoid amogus(){\n  for(int i=6; i<=12; i++){\n    digitalWrite(i, HIGH);\n  } \n  digitalWrite(9, LOW);\n  digitalWrite(2, LOW);\n  digitalWrite(3, LOW);\n  digitalWrite(4, LOW);\n  digitalWrite(5, LOW);\n  tone(13, 523);     //C5\n  digitalWrite(2, HIGH);\n  delay(BPS);\n  noTone(13);\n  delay(BPS);\n  tone(13, 622);     //Eb5\n  digitalWrite(3, HIGH);\n  digitalWrite(2, LOW);\n  delay(BPS);\n  noTone(13);\n  delay(BPS);\n  tone(13, 698);     //F5\n  digitalWrite(4, HIGH);\n  digitalWrite(3, LOW);\n  delay(BPS);\n  noTone(13);\n  delay(BPS);\n  tone(13, 740);     //Gb5\n  digitalWrite(5, HIGH);\n  digitalWrite(4, LOW);\n  delay(BPS);\n  noTone(13);\n  delay(BPS);\n  tone(13, 698);     //F5\n  digitalWrite(4, HIGH);\n  digitalWrite(5, LOW);\n  delay(BPS);\n  noTone(13);\n  delay(BPS);\n  tone(13, 622);     //Eb5\n  digitalWrite(3, HIGH);\n  digitalWrite(4, LOW);\n  delay(BPS);\n  noTone(13);\n  delay(BPS);\n  tone(13, 523);     //C5\n  digitalWrite(2, HIGH);\n  digitalWrite(3, LOW);\n  delay(3*BPS);\n  noTone(13);\n  delay(3*BPS);\n  tone(13, 466);     //B4\n  digitalWrite(3, HIGH);\n  digitalWrite(2, LOW);\n  delay(BPS/2);\n  noTone(13);\n  delay(BPS/2);\n  tone(13, 587);     //D5\n  digitalWrite(4, HIGH);\n  digitalWrite(3, LOW);\n  delay(BPS/2);\n  noTone(13);\n  delay(BPS/2);\n  tone(13, 523);     //C5\n  digitalWrite(5, HIGH);\n  digitalWrite(4, LOW);\n  delay(3*BPS);\n  noTone(13);\n  delay(2*BPS);\n  noTone(13);\n  tone(13, 98);      //G3\n  digitalWrite(4, HIGH);\n  digitalWrite(5, LOW);\n  delay(BPS);\n  noTone(13);\n  delay(BPS);\n  tone(13, 131);     //C3\n  digitalWrite(2, HIGH);\n  digitalWrite(3, HIGH);\n  digitalWrite(4, HIGH);\n  digitalWrite(5, HIGH);  \n  delay(2*BPS);\n  noTone(13);\n  delay(500); \n}
