{"data":{"make":{"id":"1022565","created":"2023-08-04T03:53:15.279449+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"1","name":"Prusa MK3/S/S+","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"59001","handle":"Jan_59001","verified":false,"dateVerified":null,"publicUsername":"Jan","avatarFilePath":"","badgesProfileLevel":{"profileLevel":15,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"873394","filePath":"media/comment_images/63/af15fc-edd1-4635-ba6a-a08b1f355f4f/img_20230802_145712530.jpg","rotation":0,"__typename":"CommentImageType"},{"id":"873393","filePath":"media/comment_images/c6/267733-a613-445a-ab45-8eba6ad252c7/img_20230802_145750039.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"","rating":null,"likesCount":0,"liked":null,"membershipAgeMonths":null,"membershipTier":null,"__typename":"PrintCommentType","model":{"id":"37164","slug":"bolt-nut-with-secret-compartment","name":"Bolt & Nut - with Secret Compartment!","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"4.8000000000","myRating":null,"ratingCount":5,"description":"

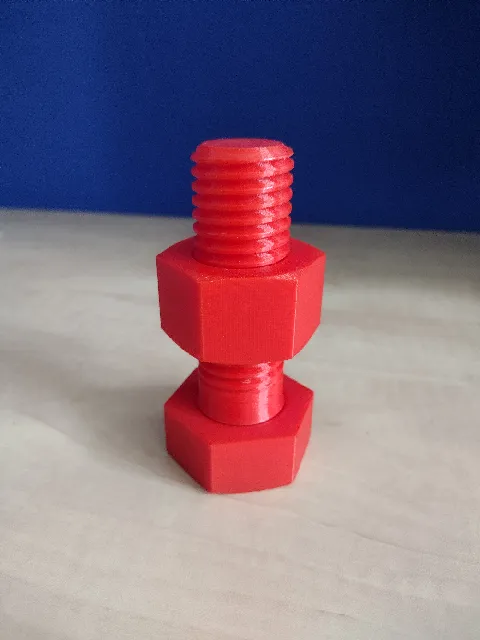

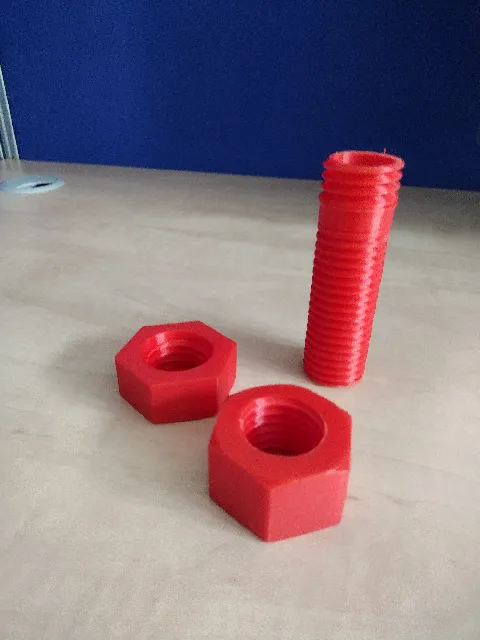

Shhh - don't tell anyone! This bolt has a hidden compartment for hiding your super-secret spy plans; the bolt head un-screws to reveal a hollow bolt.

This was just a fun project to try out some ideas, and give me an excuse to work on my 3D CAD skills. It turned out to be a bit trickier than I expected to get all the part to fit the way I wanted, but it was a good learning experience.

The OnShape 3D CAD files for this are available here:

https://cad.onshape.com/documents/74f66e195470b7a7ae955ba9/w/94547416ab094c112c198107/e/068b816b36e0b9a9fb7c43b3

Print instructions

Print in PLA using the provided 3mf files; otherwise:

Print the threaded part open end up:

use brim
perimeters = 4
infill = 10% rectilinear

Print the nut:

no brim
perimeters = 3
infill = 10% rectilinear
top/bottom fill pattern = concentric

Print the bolt head open end up:

no brim
perimeters = 3
infill = 10% rectilinear
top/bottom fill pattern = concentric

","category":{"id":"43","path":[{"id":"21","name":"Gadgets","nameEn":"Gadgets","description":"Everyone loves smart gadgets. Use 3D printing to make amazing items for audio, photo & video, computers, and phones. Top models are ready to download for free.","__typename":"CategoryType"},{"id":"43","name":"Other Gadgets","nameEn":"Other Gadgets","description":"Wide offer of 3D printable inventive and technological gadgets and gizmos are available for free download in STL. True techies never have enough of them.","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2020-07-21T12:42:01.124678+00:00","firstPublish":"2020-07-21T12:42:01.104617+00:00","datePublished":"2020-07-21T12:42:01.104617+00:00","dateCreatedThingiverse":null,"nsfw":false,"summary":"Shhh - don't tell anyone!","likesCount":37,"makesCount":6,"liked":null,"printDuration":"6.66","numPieces":3,"weight":"68.00","nozzleDiameters":["0.40"],"usedMaterial":null,"layerHeights":["0.20"],"mmu":false,"materials":[{"id":"1","name":"PLA","__typename":"MaterialTypeType"}],"dateFeatured":null,"downloadCount":304,"displayCount":1677,"filesCount":9,"privateCollectionsCount":33,"publicCollectionsCount":26,"pdfFilePath":"media/prints/37164/pdfs/37164-bolt-nut-with-secret-compartment-202b8cce-32d3-4be4-8ae1-902b94b811ed.pdf","commentCount":8,"userGcodeCount":1,"remixCount":0,"canBeRated":false,"printer":{"id":"1","name":"Prusa MK3/S/S+","__typename":"PrinterTypeType"},"image":{"id":"175193","filePath":"media/prints/37164/images/367217_90d32da2-9125-4bcd-bc66-3bc2b7bb40e6/imag1932.jpg","rotation":0,"imageHash":"lggKDYQldpdgeGhmeVmmheagTTr8","imageWidth":4032,"imageHeight":3024,"__typename":"PrintImageType"},"images":[{"id":"175193","filePath":"media/prints/37164/images/367217_90d32da2-9125-4bcd-bc66-3bc2b7bb40e6/imag1932.jpg","rotation":0,"imageHash":"lggKDYQldpdgeGhmeVmmheagTTr8","imageWidth":4032,"imageHeight":3024,"__typename":"PrintImageType"},{"id":"175194","filePath":"media/prints/37164/images/367219_cb800204-e2e4-495e-925f-a9bd0b92d806/imag1934.jpg","rotation":0,"imageHash":"lAgOFYRWdnhweHh2eFmYhqaQSzv7","imageWidth":4032,"imageHeight":3024,"__typename":"PrintImageType"},{"id":"175190","filePath":"media/prints/37164/images/367216_ebd343ea-ca48-47f2-bbdf-9cac081afb61/imag1933.jpg","rotation":0,"imageHash":"mggODYI2d4eAeHh3iEmYd/pljb73","imageWidth":4032,"imageHeight":3024,"__typename":"PrintImageType"},{"id":"175191","filePath":"media/prints/37164/images/367218_a37a3ade-476b-4ecc-b9f4-7f51bfc6d1e4/screenshot_2020-07-21-bolt-secret-compartment-bol.png","rotation":0,"imageHash":"9PcRDQL3aXeIt1h3h4p2d/eKfq/o","imageWidth":292,"imageHeight":412,"__typename":"PrintImageType"},{"id":"175192","filePath":"media/prints/37164/images/367220_42e37cac-3af6-444c-80eb-38a766450863/screenshot_2020-07-21b-bolt-secret-compartment-bo.png","rotation":0,"imageHash":"8vcRDAD4lniHd4eYd5iIf4L4Jw==","imageWidth":420,"imageHeight":697,"__typename":"PrintImageType"}],"tags":[{"name":"hidden","id":"10853","__typename":"TagType"},{"name":"hollow","id":"12454","__typename":"TagType"},{"name":"concealed","id":"26231","__typename":"TagType"}],"thingiverseLink":null,"filesType":"GCODE","previewFile":{"id":"151169","filePreviewPath":"media/prints/37164/stls/367210_85c1391a-7cf4-4bc1-bc91-c222a924bb6a/bolt-hollow4-bolt-head_preview.png","__typename":"STLType"},"license":{"id":"7","disallowRemixing":false,"__typename":"LicenseType"},"remixParents":[{"id":"46047","modelId":null,"modelName":null,"modelAuthor":null,"model":null,"url":"https://cad.onshape.com/documents/74f66e195470b7a7ae955ba9/w/94547416ab094c112c198107/e/068b816b36e0b9a9fb7c43b3","urlAuthor":null,"urlImage":null,"urlTitle":"Onshape","urlLicense":null,"urlLicenseText":null,"__typename":"PrintRemixType"}],"remixDescription":null,"__typename":"PrintType","user":{"id":"38957","handle":"kaje","verified":false,"dateVerified":null,"publicUsername":"kaje","avatarFilePath":"media/auth/avatars/40/403206ca-57fc-4064-a524-8756db191b7e.png","badgesProfileLevel":{"profileLevel":21,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isFollowedByMe":false,"canBeFollowed":true,"designer":false}},"unavailableModel":null,"replies":[]}}}
