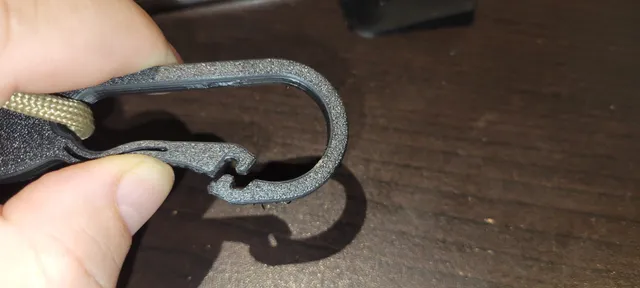

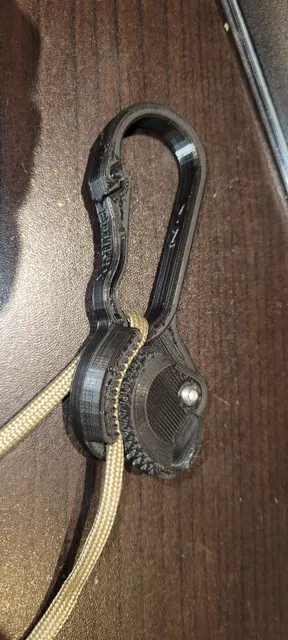

{"data":{"make":{"id":"1007274","created":"2023-07-29T02:58:13.150709+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"495","name":"Elegoo Neptune 3 Pro","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"858696","handle":"elninoHA_858696","verified":false,"dateVerified":null,"publicUsername":"elnino","avatarFilePath":"media/auth/avatars/a3/a32d6d60-1437-4f3e-9951-28fc9266145d.jpg","badgesProfileLevel":{"profileLevel":14,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"858728","filePath":"media/comment_images/2c/7ae70e-2941-43b3-a978-3f316b9de723/20230728_2243061.jpg","rotation":0,"__typename":"CommentImageType"},{"id":"858727","filePath":"media/comment_images/5c/bb9f21-c20e-40f3-abbb-5e02f4469614/20230728_2242321.jpg","rotation":0,"__typename":"CommentImageType"},{"id":"858726","filePath":"media/comment_images/9a/1c38c9-d196-4d5b-8105-d6c8da81ff19/image.png","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"I finally print a good one :D \n\nIn Cura, I need to change the \"Maximum Wall Line Width\" to 0.15\n\nThanks ;)","rating":5,"likesCount":1,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"461204","ratingAvg":"5.0000000000","ratingCount":4,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType","model":{"eligibleForNomination":false,"id":"461204","slug":"0064-strong-and-compact-carabiner-cord-tensioner-c","name":"#0064 Strong and Compact Carabiner + Cord Tensioner [Cam Action, 4mm paracord]","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"5.0000000000","myRating":null,"ratingCount":4,"description":"

*** Thanks for checking out this model! ***

If you appreciate what I'm doing, please consider buying me a coffee, and check out my other models!

**********

I've paired a cam action cord tensioner (4mm paracord) with my Action Carabiner. It's a very strong cam lock that will secure your paracord when setting up a temporary tension line.

Features:

Locks in 2 directions.

The tensioner uses a cam lock to hold the 4mm paracord tightly, but also releases quickly.

Other things you'll need:

1x M3x12 SHCS (socket head cap screw)
1x M3 nylon locking nut

My other Carabiner Designs:

Tips:

Print in PETG/ABS/ASA for more flexibility. PLA is not recommended.
Some minor welding is common at the snap area. Just bend it back and forth in the Z direction a few times and it will separate.
Print with 2 walls and 25% infill, 0.2mm layer is fine. Recommend top and bottom layers to be at least 4 each. Given the print orientation, top and bottom layers have a big effect on stiffness. If you want a stronger part, go with 5 layers each - but beware that it may be stiffer than you'd like. If you use any more layers, it may become too stiff for you to open it easily anymore.
Try to place the seam away from the snap geometry area, like by the outside of the bottom knuckle instead - seams can collect excess filament in areas with small print movements that could cause welding at the snap area.
For the Y lock version: if you only scale in Z direction, you get a print that is more resistant to opening up while being twisted \u2013 it's functionality would approach that of the YZ Lock version.
For general applications, you can just print it as is \u2013 some may prefer to be able open the clasp by sliding in Z direction. The YZ version is designed to prevent unintentional sliding.

NOTE: The gap in the locking snap area is designed to be 0.2mm which is good for a generally well-calibrated machine. If your print is welded together too tightly, it could mean your printer needs further calibration. If you believe your printer is already well-tuned, one quick way to improve gap control in this area is to increase your print acceleration during extrusion so that not too much excess material end up in the snap area to weld it together (for my Prusa MK3S+ acceleration of 1000mm/s^2 appears to work well.)

If you download this model and/or add it to your collection, please click the LIKE button and give it some STARS!

Remember, you can earn some Prusameters if you post a pic of your make! Plus, it would make my day to see it. ;-D

Happy Printing!

","category":{"id":"83","path":[{"id":"9","name":"Sports & Outdoor","nameEn":"Sports & Outdoor","description":"For sports enthusiasts and professionals alike this collection offers printed equipment for all kinds of sports and leisure activities, both summer and winter.","__typename":"CategoryType"},{"id":"83","name":"Outdoor Sports","nameEn":"Outdoor Sports","description":"3D prints for passionate bikers, climbers, hikers, or baseball and golf players are available. Print toys and other things to use when outdoors.","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2024-07-31T02:22:04.753099+00:00","firstPublish":"2023-04-24T00:22:05.461790+00:00","datePublished":"2024-07-31T02:22:04.734757+00:00","dateCreatedThingiverse":null,"nsfw":false,"aiGenerated":false,"politicalContent":false,"summary":"A cord tensioner combined with my Action Carabiner (strong and compact)","likesCount":103,"makesCount":4,"liked":null,"printDuration":null,"numPieces":0,"weight":null,"nozzleDiameters":null,"usedMaterial":null,"layerHeights":null,"mmu":false,"materials":[],"dateFeatured":null,"downloadCount":333,"displayCount":3054,"filesCount":2,"privateCollectionsCount":99,"publicCollectionsCount":95,"pdfFilePath":"media/prints/461204/pdfs/461204-strong-and-compact-carabiner-cord-tensioner-cam-action-4mm-paracord-3fe92ef0-f1db-4dd1-a65f-01c65460ba0f.pdf","commentCount":9,"userGcodeCount":0,"remixCount":1,"canBeRated":false,"addMakePermission":null,"printer":null,"image":{"id":"1809439","filePath":"media/prints/461204/images/3785617_41f239c4-c418-4964-8678-70def4743d20/20230423_165614.jpg","rotation":0,"imageHash":"aRgODoJfapdqeHiHd5l3iYd4UIoJg3o=","imageWidth":2160,"imageHeight":1740,"__typename":"PrintImageType"},"images":[{"id":"1809439","filePath":"media/prints/461204/images/3785617_41f239c4-c418-4964-8678-70def4743d20/20230423_165614.jpg","rotation":0,"imageHash":"aRgODoJfapdqeHiHd5l3iYd4UIoJg3o=","imageWidth":2160,"imageHeight":1740,"__typename":"PrintImageType"},{"id":"1809400","filePath":"media/prints/461204/images/3785544_cf263bd5-5543-4d13-8096-755914a0fd0a/rl-20230419-008.jpg","rotation":0,"imageHash":"8/cNDYCXqYipZ3ePdleFh4q2v1j7","imageWidth":902,"imageHeight":626,"__typename":"PrintImageType"},{"id":"1809440","filePath":"media/prints/461204/images/3785618_b008c73b-b4eb-45ab-a2d6-9c312d771182/20230423_165539.jpg","rotation":270,"imageHash":"lxgGFQIDV1+JKJeoeImIZyuHwGIJ","imageWidth":2101,"imageHeight":2801,"__typename":"PrintImageType"},{"id":"1809418","filePath":"media/prints/461204/images/3785571_a45c3dca-4f27-4021-985e-c0bc0cf3a814/rl-20230423-008.jpg","rotation":0,"imageHash":"8/cNDYD4V3iEeYd9hIiHh6mQnQjI","imageWidth":629,"imageHeight":459,"__typename":"PrintImageType"},{"id":"1809421","filePath":"media/prints/461204/images/3785575_a2fa9666-323a-48d8-b311-8bf5b640deee/rl-20230419-004.jpg","rotation":0,"imageHash":"tPcNDYD4Nql2p1d5doiIh9qQmg7b","imageWidth":662,"imageHeight":455,"__typename":"PrintImageType"},{"id":"1809422","filePath":"media/prints/461204/images/3785574_619d3844-f613-4f52-8a49-b83897bed08d/rl-20230419-003.jpg","rotation":0,"imageHash":"q/cJDYD7rKg1mpmsaXfmjax2n0f4","imageWidth":773,"imageHeight":547,"__typename":"PrintImageType"},{"id":"1809419","filePath":"media/prints/461204/images/3785572_3356c982-3caa-457d-88ea-ba0f273e662f/rl-20230423-006.jpg","rotation":0,"imageHash":"8fcRDYDIiIeHd3ePdXaHdqmTrwn6","imageWidth":699,"imageHeight":518,"__typename":"PrintImageType"},{"id":"1809420","filePath":"media/prints/461204/images/3785573_cf1a6a13-f1b3-45f6-859a-a33a7a36ad91/rl-20230423-007.jpg","rotation":0,"imageHash":"qvcRDYDaiXinhnePdYaHiryl30n6","imageWidth":860,"imageHeight":605,"__typename":"PrintImageType"}],"imagesCount":8,"tags":[{"name":"carabiner","id":"11330","__typename":"TagType"},{"name":"cordtensioner","id":"27588","__typename":"TagType"},{"name":"lockingcarabiner","id":"68623","__typename":"TagType"},{"name":"yzcarabiner","id":"146996","__typename":"TagType"},{"name":"4mmparacord","id":"146997","__typename":"TagType"}],"thingiverseLink":null,"filesType":null,"previewFile":{"id":"1997132","filePreviewPath":"media/prints/461204/stls/3785533_f9f98231-5b9f-4b26-8da1-8346adcadc7e/carabiner-rope-cam-yz-lock_preview.png","__typename":"STLType"},"license":{"id":"3","disallowRemixing":false,"__typename":"LicenseType"},"remixParents":[],"remixDescription":null,"easyprintProjects":[],"__typename":"PrintType","user":{"id":"120324","handle":"BuildX","verified":false,"dateVerified":null,"publicUsername":"BuildX","avatarFilePath":"media/auth/avatars/d4/d4977967-30ff-4b3f-ae4b-dc9bdb6613ae.jpg","badgesProfileLevel":{"profileLevel":34,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isFollowedByMe":false,"canBeFollowed":true,"designer":false}},"unavailableModel":null,"replies":[{"id":"1007491","created":"2023-07-29T07:08:22.525119+00:00","edited":null,"deleted":null,"isMake":false,"printer":null,"parent":{"id":"1007274","__typename":"PrintCommentType"},"author":{"id":"120324","handle":"BuildX","verified":false,"dateVerified":null,"publicUsername":"BuildX","avatarFilePath":"media/auth/avatars/d4/d4977967-30ff-4b3f-ae4b-dc9bdb6613ae.jpg","badgesProfileLevel":{"profileLevel":34,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[],"mentions":[{"id":"858696","handle":"elninoHA_858696","__typename":"MentionListAssociationType"}],"text":"##user-858696## what was it at before?","rating":null,"likesCount":0,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"461204","ratingAvg":"5.0000000000","ratingCount":4,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType"},{"id":"1007940","created":"2023-07-29T12:26:14.242202+00:00","edited":null,"deleted":null,"isMake":false,"printer":null,"parent":{"id":"1007274","__typename":"PrintCommentType"},"author":{"id":"858696","handle":"elninoHA_858696","verified":false,"dateVerified":null,"publicUsername":"elnino","avatarFilePath":"media/auth/avatars/a3/a32d6d60-1437-4f3e-9951-28fc9266145d.jpg","badgesProfileLevel":{"profileLevel":14,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[],"mentions":[{"id":"120324","handle":"BuildX","__typename":"MentionListAssociationType"}],"text":"##user-120324## the default value is at 0.34. 0.15 is the maximum I can to have a good slice... With 0.16 I had couple layers in problem.","rating":null,"likesCount":0,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"461204","ratingAvg":"5.0000000000","ratingCount":4,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType"}]}}}

#0064 Strong and Compact Carabiner + Cord Tensioner [Cam Action, 4mm paracord]

#0064 Strong and Compact Carabiner + Cord Tensioner [Cam Action, 4mm paracord]
