{"data":{"model":{"id":"88738","slug":"plavecke-packy","name":"Plaveck\u00e9 packy","authorship":null,"eduProject":{"id":"63","subject":{"id":"12","name":"Physical Education","slug":"physical-education","__typename":"SchoolSubjectType"},"language":{"id":"28","name":"Czech","__typename":"LanguageType"},"free":false,"timeDifficulty":"SHORT_TERM","audienceAge":"ADOLESCENT","complexity":"EASY","equipment":[],"suitablePrinters":[{"id":"1","name":"Prusa MK3/S/S+","__typename":"PrinterTypeType"}],"organisation":"St\u0159edn\u00ed \u0161kola \u0159emesel a slu\u017eeb Jablonec nad Nisou","authors":"Tom\u00e1\u0161 Perun","targetGroupFocus":"

Podnik\u00e1n\u00ed

","knowledgeAndSkills":"

St\u0159edn\u011b pokro\u010dil\u00fd s prac\u00ed v softwaru Adobe Illustrator ve 2D, za\u010d\u00e1te\u010dn\u00edk ve 3D kreslen\u00ed. P\u0159ekreslen\u00ed obrysu voln\u011b prod\u00e1van\u00fdch plaveck\u00fdch pacek a \u00faprava tvaru pro osobn\u00ed pot\u0159eby. V programu Illustr\u00e1tor pou\u017eij\u00ed p\u0159edev\u0161\u00edm n\u00e1stroj pero pro vytvo\u0159en\u00ed k\u0159ivek. N\u00e1sledn\u011b editace jednotliv\u00fdch kotevn\u00edch bod\u016f p\u0159\u00edm\u00fdm v\u00fdb\u011brem. V p\u0159\u00edpad\u011b, \u017ee vytv\u00e1\u0159\u00ed osov\u011b soum\u011brn\u00fd objekt, je vhodn\u00e9 vytvo\u0159it jenom polovinu a objekt zrcadlit. Takov\u00fd model lze pou\u017e\u00edt pro ob\u011b ruce. \u017d\u00e1ci, kte\u0159\u00ed cht\u011bj\u00ed ergonomicky ide\u00e1ln\u00ed packy, vytvo\u0159\u00ed objekty osov\u011b nesoum\u011brn\u00e9 a objekt pak zrcadl\u00ed cel\u00fd, aby vznikla prav\u00e1 a lev\u00e1 packa. Pro p\u0159evod do 3D je t\u0159eba soubor ulo\u017eit ve form\u00e1tu svg.

","objectives":"

C\u00edlem projektu je procvi\u010den\u00ed pr\u00e1ce s vektory v programu Adobe Illustrator. N\u00e1sledn\u00fd p\u0159evod form\u00e1t\u016f do form\u00e1tu svg pro 3D modelovac\u00ed programy. Vyu\u017eit\u00ed voln\u011b dostupn\u00fdch aplikac\u00ed pro 3D modelov\u00e1n\u00ed jako je Tinkercad. Pr\u00e1ce se slicovac\u00edm programem PrusaSlicer. P\u0159\u00edprava vlastn\u00edho modelu pro 3D tisk. Tisk vlastn\u00ed plaveck\u00e9 packy na m\u00edru. V programu PrusaSlicer uprav\u00ed velikost modelu na p\u0159esn\u00e9 rozm\u011bry, kter\u00e9 budou vyhovovat p\u0159esn\u011b jejich ergonomii. V\u00fdsledkem tedy bude p\u0159esn\u011b padnouc\u00ed plaveck\u00e1 pom\u016fcka.

","equipmentDescription":"

","timeSchedule":"

Pro tvorbu k\u0159ivek v programu Adobe Illustrator dosta\u010duje pro v\u011bt\u0161inu \u017e\u00e1k\u016f 90 minut. Na p\u0159evod do form\u00e1tu svg, importu do programu Tinkercad, exportu do form\u00e1tu stl a p\u0159\u00edprav\u011b gcodu pro tisk v programu PrusaSlicer posta\u010duje 45 minut.

D\u00e9lka tisku jedn\u00e9 plaveck\u00e9 packy bude trvat p\u0159ibli\u017en\u011b 120 minut (v\u00fdpl\u0148 20%, v\u00fd\u0161ka vrstvy 0,20 speed mm).

","workflow":"

1. hodina (45 minut)

\u017e\u00e1ci si vyhledaj\u00ed nab\u00edzen\u00e9 produkty, aby m\u011bli p\u0159edstavu tvaru, kter\u00fd maj\u00ed vytvo\u0159it
vhodn\u00e9 uk\u00e1zat ji\u017e existuj\u00edc\u00ed produkt pro lep\u0161\u00ed p\u0159edstavu
tvorba obrysu plaveck\u00e9 packy v programu Illustrator

2. hodina (45 minut)

dod\u011bl\u00e1n\u00ed obrysu v programu Illustrator

3. hodina (45 minut)

p\u0159evod do svg
import do tincercad.com. Vytvo\u0159en\u00ed 3D modelu
export stl.

4. hodina (45 minut)

otev\u0159en\u00ed PrusaSliceru a nastaven\u00ed 3D tisku
- je vhodn\u00e9 pustit prezentaci s parametry tisku

Z\u00e1kladn\u00ed parametry 3D tisku:

Nastaven\u00ed tisku: \u201e0.20mm SEED\u201d
Filament: \u201ePrusament PLA\u201d
Tisk\u00e1rna: \u201eOriginal Prusa i3 MK3S & MK3S+\u201d
Podp\u011bry: \u201e\u017d\u00e1dn\u00e9\u201d
V\u00fdpl\u0148: \u201e20%\u201d
Vytvo\u0159te gcode (soubor konkr\u00e9tn\u00edch instrukc\u00ed pro tisk\u00e1rnu).
Exportujte gcode, pojmenujte jej a ulo\u017ete na SD kartu.

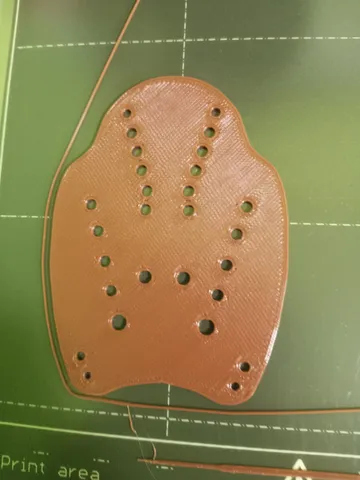

3D tisk

","approved":true,"publishedStatus":"PUBLISHED","__typename":"EduProjectType"},"user":{"id":"182008","handle":"SosJbc_182008","verified":false,"dateVerified":null,"publicUsername":"SosJbc","avatarFilePath":"","badgesProfileLevel":{"profileLevel":0,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isFollowedByMe":false,"canBeFollowed":true,"billingAccountType":"personal","lowestTierPrice":null,"designer":false,"stripeAccountActive":null,"membership":null},"ratingAvg":"5.0000000000","myRating":null,"ratingCount":1,"description":"","category":null,"modified":"2021-12-15T09:59:23.137753+00:00","firstPublish":"2021-12-15T09:59:23.137550+00:00","datePublished":"2021-12-15T09:59:23.137550+00:00","dateCreatedThingiverse":null,"nsfw":false,"summary":"V projektu studenti vytvo\u0159\u00ed p\u0159edlohu pro tr\u00e9ninkovou plaveckou pom\u016fcku \u2013 plaveck\u00e9 packy. V projektu studenti navrhnou vlastn\u00ed tvar a velikost plaveck\u00fdch pacek.","likesCount":0,"makesCount":1,"liked":null,"printDuration":"2.70","numPieces":1,"weight":"51.00","nozzleDiameters":["0.40"],"usedMaterial":null,"layerHeights":["0.20"],"mmu":false,"materials":[{"id":"1","name":"PLA","__typename":"MaterialTypeType"}],"dateFeatured":null,"downloadCount":2,"displayCount":205,"filesCount":7,"privateCollectionsCount":0,"publicCollectionsCount":0,"pdfFilePath":"media/prints/88738/pdfs/88738-plavecke-packy-94b931bb-a08c-4598-a6d0-6250ff6f9e5e.pdf","commentCount":1,"userGcodeCount":0,"remixCount":0,"canBeRated":false,"printer":{"id":"1","name":"Prusa MK3/S/S+","__typename":"PrinterTypeType"},"image":{"id":"488039","filePath":"media/prints/88738/images/936307_78891424-1df9-4b8b-bc0a-65d10fcb310d/20211111_151254.jpg","rotation":0,"imageHash":"I0oCJIRMQIyHp3doxZj1mk6v6Q==","imageWidth":4000,"imageHeight":2250,"__typename":"PrintImageType"},"images":[{"id":"488039","filePath":"media/prints/88738/images/936307_78891424-1df9-4b8b-bc0a-65d10fcb310d/20211111_151254.jpg","rotation":0,"imageHash":"I0oCJIRMQIyHp3doxZj1mk6v6Q==","imageWidth":4000,"imageHeight":2250,"__typename":"PrintImageType"},{"id":"488030","filePath":"media/prints/88738/images/936307_78891424-1df9-4b8b-bc0a-65d10fcb310d/prusaslicer.jpg","rotation":0,"imageHash":null,"imageWidth":null,"imageHeight":null,"__typename":"PrintImageType"},{"id":"488031","filePath":"media/prints/88738/images/936307_78891424-1df9-4b8b-bc0a-65d10fcb310d/illustrator.jpg","rotation":0,"imageHash":null,"imageWidth":null,"imageHeight":null,"__typename":"PrintImageType"},{"id":"488032","filePath":"media/prints/88738/images/936307_78891424-1df9-4b8b-bc0a-65d10fcb310d/gcode.jpg","rotation":0,"imageHash":null,"imageWidth":null,"imageHeight":null,"__typename":"PrintImageType"},{"id":"488033","filePath":"media/prints/88738/images/936307_78891424-1df9-4b8b-bc0a-65d10fcb310d/stl.jpg","rotation":0,"imageHash":null,"imageWidth":null,"imageHeight":null,"__typename":"PrintImageType"},{"id":"488034","filePath":"media/prints/88738/images/936307_78891424-1df9-4b8b-bc0a-65d10fcb310d/tinkercad.jpg","rotation":0,"imageHash":null,"imageWidth":null,"imageHeight":null,"__typename":"PrintImageType"},{"id":"488035","filePath":"media/prints/88738/images/936307_78891424-1df9-4b8b-bc0a-65d10fcb310d/20211111_152225.jpg","rotation":0,"imageHash":null,"imageWidth":null,"imageHeight":null,"__typename":"PrintImageType"},{"id":"488036","filePath":"media/prints/88738/images/936307_78891424-1df9-4b8b-bc0a-65d10fcb310d/20211111_151250.jpg","rotation":0,"imageHash":null,"imageWidth":null,"imageHeight":null,"__typename":"PrintImageType"},{"id":"488037","filePath":"media/prints/88738/images/936307_78891424-1df9-4b8b-bc0a-65d10fcb310d/20211111_151624.jpg","rotation":0,"imageHash":null,"imageWidth":null,"imageHeight":null,"__typename":"PrintImageType"},{"id":"488038","filePath":"media/prints/88738/images/936307_78891424-1df9-4b8b-bc0a-65d10fcb310d/20211110_123835.jpg","rotation":0,"imageHash":null,"imageWidth":null,"imageHeight":null,"__typename":"PrintImageType"},{"id":"488040","filePath":"media/prints/88738/images/936307_78891424-1df9-4b8b-bc0a-65d10fcb310d/20211110_123843.jpg","rotation":0,"imageHash":null,"imageWidth":null,"imageHeight":null,"__typename":"PrintImageType"},{"id":"488041","filePath":"media/prints/88738/images/936307_78891424-1df9-4b8b-bc0a-65d10fcb310d/20211110_110229.jpg","rotation":0,"imageHash":null,"imageWidth":null,"imageHeight":null,"__typename":"PrintImageType"},{"id":"488042","filePath":"media/prints/88738/images/936307_78891424-1df9-4b8b-bc0a-65d10fcb310d/20211110_110220.jpg","rotation":0,"imageHash":null,"imageWidth":null,"imageHeight":null,"__typename":"PrintImageType"},{"id":"488043","filePath":"media/prints/88738/images/936307_78891424-1df9-4b8b-bc0a-65d10fcb310d/20211111_151556.jpg","rotation":0,"imageHash":null,"imageWidth":null,"imageHeight":null,"__typename":"PrintImageType"},{"id":"488044","filePath":"media/prints/88738/images/936307_78891424-1df9-4b8b-bc0a-65d10fcb310d/20211110_123831.jpg","rotation":0,"imageHash":null,"imageWidth":null,"imageHeight":null,"__typename":"PrintImageType"},{"id":"488045","filePath":"media/prints/88738/images/936307_78891424-1df9-4b8b-bc0a-65d10fcb310d/20211110_110222.jpg","rotation":0,"imageHash":null,"imageWidth":null,"imageHeight":null,"__typename":"PrintImageType"},{"id":"488046","filePath":"media/prints/88738/images/936307_78891424-1df9-4b8b-bc0a-65d10fcb310d/20211111_152227.jpg","rotation":0,"imageHash":null,"imageWidth":null,"imageHeight":null,"__typename":"PrintImageType"}],"tags":[{"name":"swimming","id":"2011","__typename":"TagType"},{"name":"training","id":"8764","__typename":"TagType"}],"thingiverseLink":null,"filesType":"GCODE","previewFile":{"id":"390015","filePreviewPath":"media/prints/88738/stls/936307_78891424-1df9-4b8b-bc0a-65d10fcb310d/plavecke-packy_preview.png","__typename":"STLType"},"license":{"id":"4","disallowRemixing":false,"__typename":"LicenseType"},"remixParents":[],"remixDescription":null,"__typename":"PrintType"}}}
