{"data":{"model":{"id":"135573","slug":"hraci-kostky-s-cisly-s-dirkami-s-barvami","name":"Hrac\u00ed kostky - s \u010d\u00edsly, s d\u00edrkami, s barvami","authorship":null,"eduProject":{"id":"449","subject":{"id":"10","name":"Informatics & Computer Science","slug":"informatics-computer-science","__typename":"SchoolSubjectType"},"language":{"id":"28","name":"Czech","__typename":"LanguageType"},"free":false,"timeDifficulty":"MEDIUM_TERM","audienceAge":"SCHOOL","complexity":"EASY","equipment":[{"id":"1","name":"3D modeling","__typename":"EquipmentType"},{"id":"4","name":"IT classroom","__typename":"EquipmentType"}],"suitablePrinters":[{"id":"18","name":"Prusa MINI / MINI+","__typename":"PrinterTypeType"},{"id":"5","name":"Prusa MK3 & MMU2","__typename":"PrinterTypeType"},{"id":"1","name":"Prusa MK3/S/S+","__typename":"PrinterTypeType"},{"id":"14","name":"Prusa MK3S/+ & MMU2S/3","__typename":"PrinterTypeType"}],"organisation":"Z\u0160 a M\u0160 De\u0161tn\u00e9 v Orlick\u00fdch hor\u00e1ch","authors":"Mgr. Karel \u0160imek, \u017e\u00e1ci 5. a 6. t\u0159\u00eddy","targetGroupFocus":"

Projekt je ur\u010den pro naprost\u00e9 nov\u00e1\u010dky \u2013 \u017e\u00e1ky 5. a 6. t\u0159\u00eddy, kte\u0159\u00ed se s 3D modelov\u00e1n\u00edm teprve
seznamuj\u00ed.

","knowledgeAndSkills":"

\u017d\u00e1ci by m\u011bli b\u00fdt schopni z\u00e1kladn\u00ed obsluhy po\u010d\u00edta\u010de, p\u0159ipojovat se na internet, m\u00edt svou
mailovou adresu, ukl\u00e1dat a otev\u00edrat soubory. Pracovat s vyhled\u00e1va\u010dem.
Pro vytv\u00e1\u0159en\u00ed 3D modelu nemus\u00ed m\u00edt \u017e\u00e1dn\u00e9 znalosti. Ve \u0161kole pou\u017e\u00edv\u00e1me program
TINKERCAD, proto\u017ee bl\u00edzk\u00e9 st\u0159edn\u00ed pr\u016fmyslov\u00e9 \u0161koly v okol\u00ed pou\u017e\u00edvaj\u00ed AutoCad.
V projektu vyu\u017e\u00edv\u00e1me nadefinovan\u00e9 tvary programu, kter\u00e9 upravujeme.
U n\u011bkter\u00fdch \u017e\u00e1k\u016f je dokonce pot\u0159eba individu\u00e1ln\u00edho veden\u00ed.

","objectives":"

Sezn\u00e1men\u00ed se s programem a vyu\u017eit\u00ed vide\u00ed -
https://www.youtube.com/watch?v=bcrUFvj4Vmk
https://www.youtube.com/watch?v=idSOBP2bKpw
V\u00fdukov\u00fdch cvi\u010den\u00ed v tinkercadu
\u017d\u00e1ci si vyzkou\u0161\u00ed mo\u017enost\u00ed (objekt\u016f) programu Tinkercad (rozvoj kompetence k u\u010den\u00ed).
Vzhledem k mo\u017enosti, \u017ee n\u011bkte\u0159\u00ed \u017e\u00e1ci ji\u017e se sv\u00fdmi rodi\u010di doma v tomto programu pracuj\u00ed,
m\u016f\u017eeme pou\u017e\u00edt i projektovou v\u00fduku, skupinovou v\u00fduku \u010di individu\u00e1ln\u00ed veden\u00ed (pomoc) \u017e\u00e1k\u016f
vz\u00e1jemn\u011b (rozvoj kompetence soci\u00e1ln\u00ed a komunikativn\u00ed).

","equipmentDescription":"

IT u\u010debna - po\u010d\u00edta\u010de, tisk\u00e1rna, p\u0159ipojen\u00ed na internet, u kostky s barvami - barvy

","timeSchedule":"

P\u0159\u00edprava vyu\u010duj\u00edc\u00edho: 2 hodinov\u00e1 - s kolegy u\u010diteli jsme se dohodli na rozm\u011brech kostek a
nyn\u00ed konzultujeme pouze co na n\u011b \u2013 p\u00edsmena, \u010d\u00edslice, znaky apod., prohl\u00eddka vide\u00ed a p\u0159\u00edprava
jejich zakomponov\u00e1n\u00ed do v\u00fduky.
\uf0b7 Vyu\u010duj\u00edc\u00ed si m\u016f\u017ee p\u0159ipravit na uk\u00e1zku vzorov\u00fd 3D model. Je mo\u017eno i st\u00e1hnout,
nicm\u00e9n\u011b jsme se dohodli, \u017ee ka\u017ed\u00fd vyu\u010duj\u00edc\u00ed ICT si model vytvo\u0159\u00ed s\u00e1m.
\u010cas str\u00e1ven\u00fd prac\u00ed na projektu orienta\u010dn\u011b zabere 4 - 6 vyu\u010dovac\u00edch hodin. (m\u00e1me 1
hodinovou dotaci t\u00fddn\u011b) a podle schopnost\u00ed \u017e\u00e1k\u016f \u2013 viz v\u00fd\u0161e
\uf0b7 1. a 2. hodina \u2013 p\u0159ihl\u00e1\u0161en\u00ed do programu TINKERCAD, mo\u017eno vyu\u017e\u00edt p\u0159ihl\u00e1\u0161en\u00ed p\u0159es
google, pr\u00e1ce s v\u00fdukov\u00fdmi videi, hled\u00e1n\u00ed pot\u0159ebn\u00fdch tvar\u016f, jejich um\u00edst\u011bn\u00ed na plo\u0161e,
ur\u010den\u00ed z\u00e1kladn\u00edch rozm\u011br\u016f
\uf0b7 3. a 4. hodina \u2013 skl\u00e1d\u00e1n\u00ed tvar\u016f, seskupov\u00e1n\u00ed, zarovn\u00e1van\u00ed, apod.
\uf0b7 5. a 6. hodina - kontrola modelu, export do STL souboru, zasl\u00e1n\u00ed souboru u\u010diteli nebo
na u\u010ditelsk\u00fd po\u010d\u00edta\u010d, nastaven\u00ed PrusaSliceru a p\u0159evod do GCODE.
Orienta\u010dn\u00ed \u010das tisku (pro jednu kostku je to cca 40 - 50min, pro soubor 3 kostek podle zad\u00e1n\u00ed
cca 3 hodiny)

","workflow":"

Sezn\u00e1men\u00ed se s programem Tinkercad
o nejd\u0159\u00edve se \u017e\u00e1ci dle v\u00fdukov\u00fdch vide\u00ed, pokyn\u016f u\u010ditele nau\u010d\u00ed program pou\u017e\u00edvat
Zad\u00e1n\u00ed vlastn\u00edho \u00fakolu
o nejprve \u017e\u00e1ci do nov\u00e9ho projektu vlo\u017e\u00ed tvar kostky
o u tvaru nastav\u00ed rozm\u011bry podle zad\u00e1n\u00ed (20x20x20mm)
o d\u00e1le \u017e\u00e1ci vyberou p\u00edsmena, \u010d\u00edsla, te\u010dky podle zad\u00e1n\u00ed, doporu\u010dujeme vybrat
\u010d\u00edslice; uprav\u00ed velikost, vyzkou\u0161\u00ed funkci \u201et\u011bleso\u201c, \u201ed\u00edra\u201c
o um\u00edst\u00ed \u010d\u00edslice do kostky (podkladu), vyzkou\u0161\u00ed funkce zarovn\u00e1n\u00ed a seskupen\u00ed
o zkontroluj\u00ed v\u0161echny strany kostky
Export do stl
o po dokon\u010den\u00ed modelu \u017e\u00e1ci tla\u010d\u00edtkem Export v programu Tinkercad p\u0159evedou
sv\u016fj model do 3D modelu ve form\u00e1tu .stl
PrusaSlicer, import souboru stl:
o vyexportovan\u00fd soubor .stl importuj\u00ed \u017e\u00e1ci s u\u010ditelem do PrusaSliceru,
o nastav\u00ed p\u0159\u00edslu\u0161n\u00fd filament (Prusament PLA),
o u\u010ditel upozorn\u00ed, \u017ee pokud u n\u00e1zvu sv\u00edt\u00ed vyk\u0159i\u010dn\u00edk v troj\u00faheln\u00edku, mus\u00ed studenti
ud\u011blat automatikou opravu,
o na kart\u011b Nastaven\u00ed tisku u\u010ditel upozorn\u00ed \u017e\u00e1ky na r\u016fzn\u00e1 nastaven\u00ed, parametry,
mo\u017enosti.
Export do g-code:
o model \u017e\u00e1ci s u\u010ditelem p\u0159evedou na 3D tisk pomoc\u00ed tla\u010d\u00edtek Slicovat a pokud je
v\u0161e v po\u0159\u00e1dku, exportuj\u00ed do g-code.
3D tisk:
o g-code soubory ulo\u017e\u00ed u\u010ditel na SD kartu,
o u\u010ditel se \u017e\u00e1ky spole\u010dn\u011b zah\u00e1j\u00ed tisk na zkalibrovan\u00e9 3D tisk\u00e1rn\u011b.

","approved":true,"publishedStatus":"PUBLISHED","__typename":"EduProjectType"},"user":{"id":"129373","handle":"KarelSimekZSa_129373","verified":false,"dateVerified":null,"publicUsername":"Karel \u0160imek Z\u0160 a M\u0160 De\u0161tn\u00e9 v Orlick\u00fdch hor\u00e1ch","avatarFilePath":"media/auth/5667c53d-ca66-402e-be84-5b5a6435c530.png","badgesProfileLevel":{"profileLevel":4,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isFollowedByMe":false,"canBeFollowed":true,"billingAccountType":"personal","lowestTierPrice":null,"designer":false,"stripeAccountActive":null,"membership":null},"ratingAvg":"5.0000000000","myRating":null,"ratingCount":1,"description":"","category":null,"modified":"2022-05-31T10:31:30.384497+00:00","firstPublish":"2022-05-31T10:31:30.384371+00:00","datePublished":"2022-05-31T10:31:30.384371+00:00","dateCreatedThingiverse":null,"nsfw":false,"summary":"\u017d\u00e1ci vyberou, jak\u00fd druh kostek pot\u0159ebuj\u00ed (zda s\u00a0barevn\u00fdmi body, s\u00a0te\u010dkami, s\u00a0\u010d\u00edslicemi, apod), univerz\u00e1ln\u00ed rozm\u011br je 20x20x20","likesCount":0,"makesCount":1,"liked":null,"printDuration":"5.58","numPieces":4,"weight":"39.00","nozzleDiameters":["0.40"],"usedMaterial":null,"layerHeights":["0.15"],"mmu":false,"materials":[{"id":"1","name":"PLA","__typename":"MaterialTypeType"}],"dateFeatured":null,"downloadCount":11,"displayCount":134,"filesCount":10,"privateCollectionsCount":0,"publicCollectionsCount":0,"pdfFilePath":"media/prints/135573/pdfs/135573-hraci-kostky-s-cisly-s-dirkami-s-barvami-d2d86558-9978-4ec2-8145-0ee89b5e45e8.pdf","commentCount":1,"userGcodeCount":0,"remixCount":0,"canBeRated":false,"printer":{"id":"1","name":"Prusa MK3/S/S+","__typename":"PrinterTypeType"},"image":{"id":"658014","filePath":"media/prints/135573/images/1294551_f2aa9bb8-0d2a-478e-aa87-2ee9203eb0fe/projekt-2.jpg","rotation":0,"imageHash":"mRgOFgR3ePd4d4eHh4WHiph3iZ+VZwg=","imageWidth":2295,"imageHeight":2484,"__typename":"PrintImageType"},"images":[{"id":"658014","filePath":"media/prints/135573/images/1294551_f2aa9bb8-0d2a-478e-aa87-2ee9203eb0fe/projekt-2.jpg","rotation":0,"imageHash":"mRgOFgR3ePd4d4eHh4WHiph3iZ+VZwg=","imageWidth":2295,"imageHeight":2484,"__typename":"PrintImageType"},{"id":"658013","filePath":"media/prints/135573/images/1294553_54dbe0b2-9a8b-45a8-a1ea-c7da69eeb1cc/projekt-3.jpg","rotation":0,"imageHash":"nRgKL4Y5t1d/fId7iFZ3OHeDiQZ3aHAH","imageWidth":2251,"imageHeight":2148,"__typename":"PrintImageType"},{"id":"658015","filePath":"media/prints/135573/images/1294554_fcb7980f-d8d8-4b75-a14b-cea234d24103/projekt-4.jpg","rotation":0,"imageHash":"XxgGFgK6aMh1l6l2VqaFkGi2gOQKR94=","imageWidth":2252,"imageHeight":2784,"__typename":"PrintImageType"},{"id":"658016","filePath":"media/prints/135573/images/1294555_72d9fad1-3339-4471-916f-d84d83859116/slicovani-modelu-kostka-s-cisly.jpg","rotation":0,"imageHash":"KQgSBIDAd3mJdnebZncsks8j+Q==","imageWidth":1919,"imageHeight":1001,"__typename":"PrintImageType"},{"id":"658017","filePath":"media/prints/135573/images/1294556_73d59c5c-7a87-4da0-8175-d489d26d05cf/projekt-1.jpg","rotation":0,"imageHash":"XBgKHYQIpZhveXdsh4eIiEtQ5wdE","imageWidth":2603,"imageHeight":1707,"__typename":"PrintImageType"}],"tags":[],"thingiverseLink":null,"filesType":"GCODE","previewFile":{"id":"559577","filePreviewPath":"media/prints/135573/stls/1294560_4bf537a1-dca8-444e-944e-14c72198280b/kostka-s-cisly_preview.png","__typename":"STLType"},"license":{"id":"4","disallowRemixing":false,"__typename":"LicenseType"},"remixParents":[],"remixDescription":null,"__typename":"PrintType"}}}

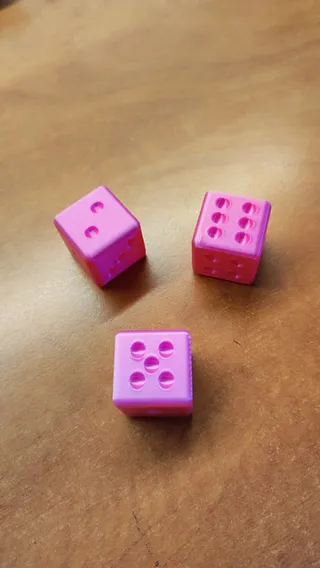

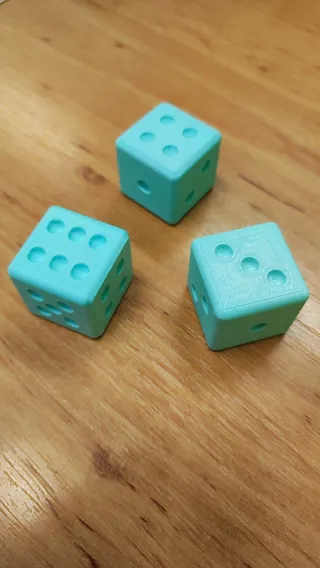

Hrací kostky - s čísly, s dírkami, s barvami
